2-channel modular radio receiver TYPE: ROM-10 EXF10000044-WUN

Index local:
API011ZAME
Numéro de catalogue:
EXF10000044-WUN
Code EAN:
5903669041849
Producteur: ZAMEL
Coding: Addressed transmission
Maximum relay power [VA]: 2000
maximum range [m]: 300
Prix:
270,30 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à une semaine
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

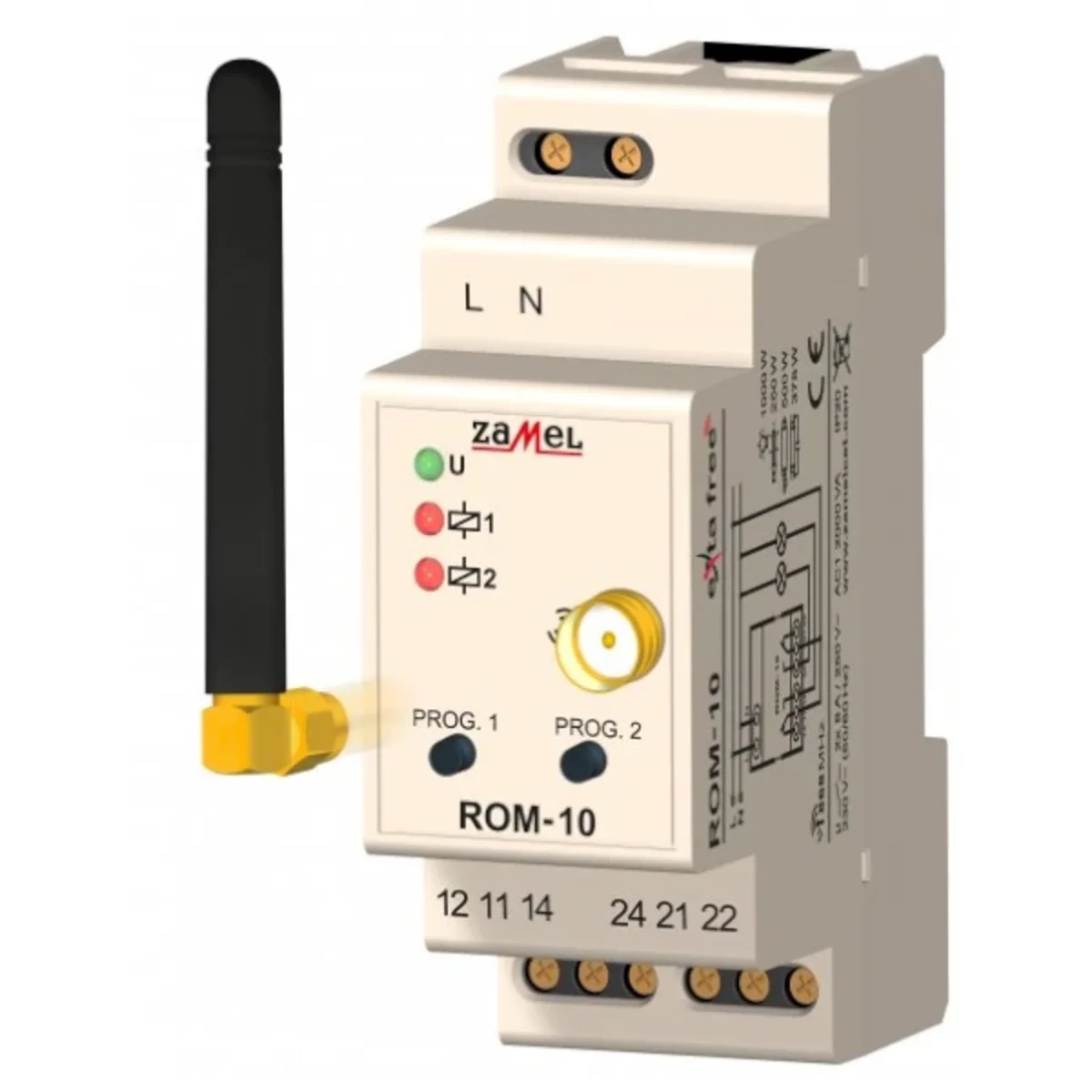

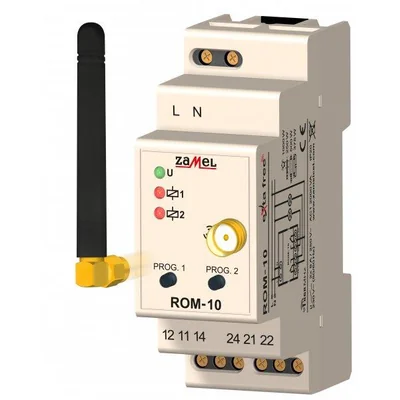

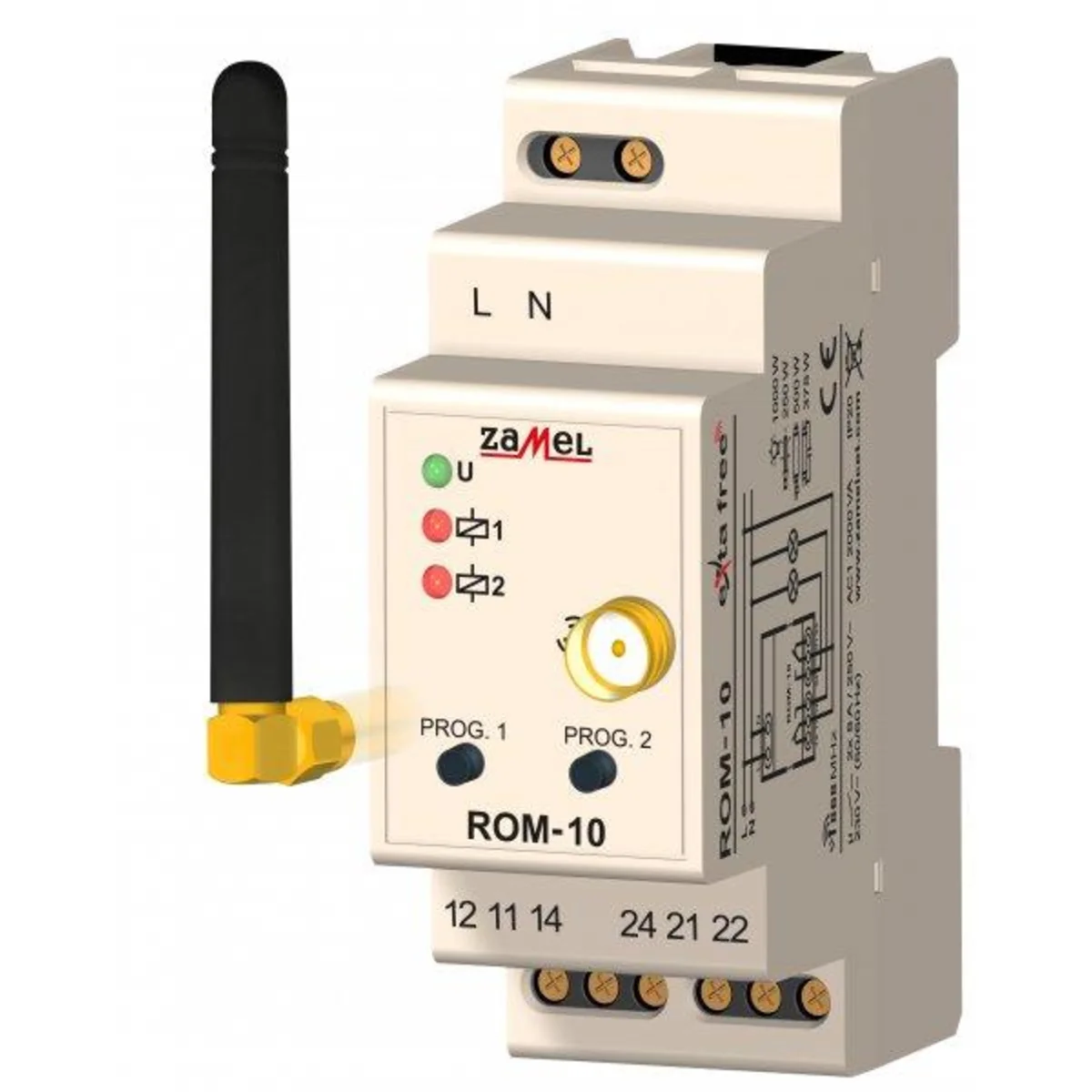

The ROM-01 and ROM-10 radio receivers can be installed in typical electrical switchboards on the TH 35 rail and perform radio control functions using any EXTA FREE system transmitter. Any electrical devices that perform functions set by the elements of the radio system (e.g. wired EXTA building automation devices, relay-contactor systems, etc.) can be connected to the relay outputs of the devices.

Données techniques

  • Coding
    Addressed transmission
  • maximum range [m]
    300
  • Relay current [A]
    8
  • Level of security
    IP20
  • Type
    Receiver
  • Maximum relay power [VA]
    2000
  • Rated voltage [V]
    230
  • Family
    EXTAFREE
  • Contact
    2NO/NC
  • PKWIU
    26.40.44.0

Détails du fabricant

  • Producteur
    ZAMEL SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Adresse
    43-200 UL. ZIELONA 27
  • Numéro identifiant TVA
    6380000669
