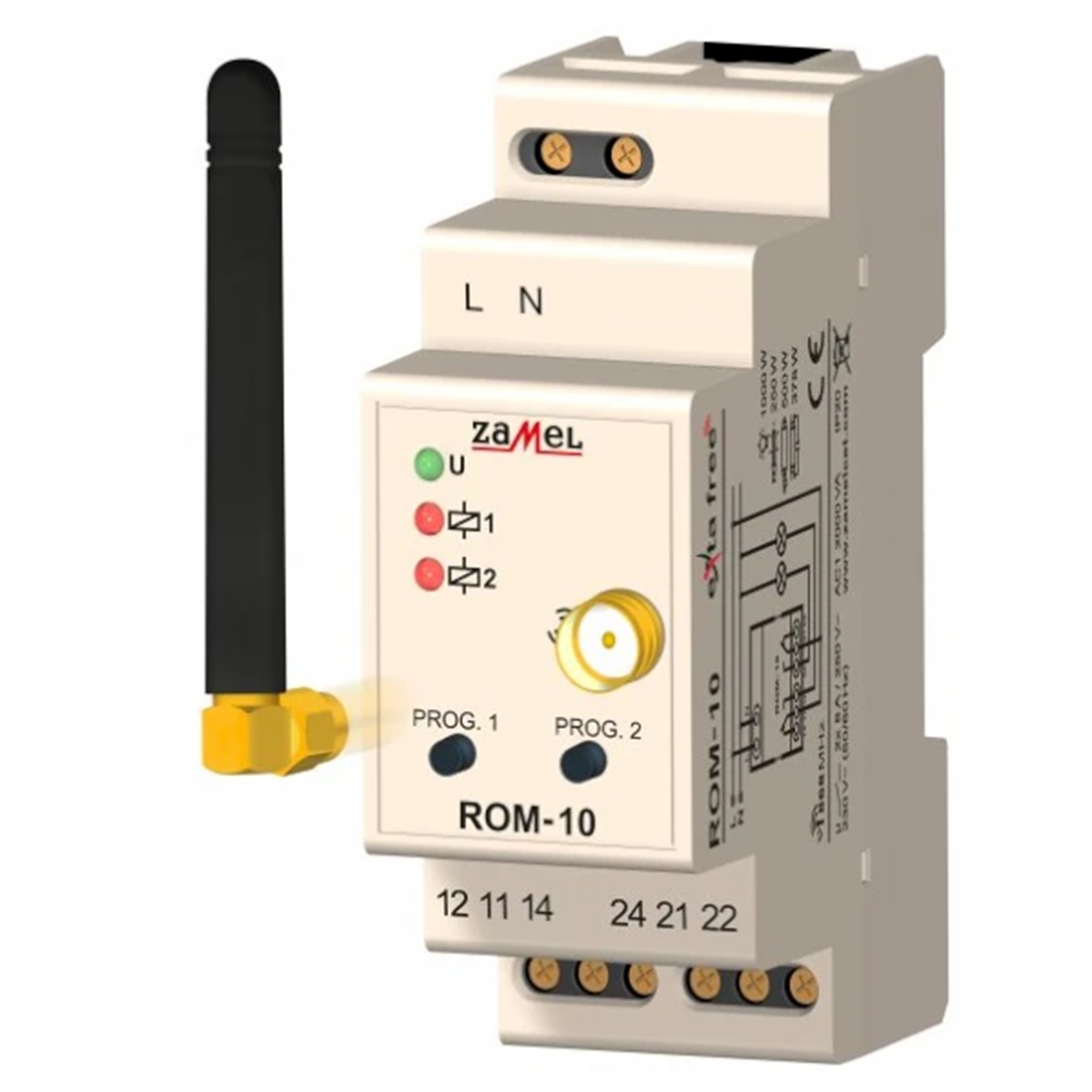

2-channel modular radio receiver TYPE: ROM-10 EXF10000044

local index:
API011ZAME
Catalog No:
EXF10000044
EAN code:
5903669041849
Manufacturer: ZAMEL
Coding: Addressed transmission
Maximum relay power [VA]: 2000
maximum range [m]: 300
Price:
59,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The ROM-01 and ROM-10 radio receivers can be installed in typical electrical switchboards on the TH 35 rail and perform radio control functions using any EXTA FREE system transmitter. Any electrical devices that perform functions set by the elements of the radio system (e.g. wired EXTA building automation devices, relay-contactor systems, etc.) can be connected to the relay outputs of the devices.

Technical data

  • Coding
    Addressed transmission
  • maximum range [m]
    300
  • Relay current [A]
    8
  • Level of security
    IP20
  • Type
    Receiver
  • Maximum relay power [VA]
    2000
  • Rated voltage [V]
    230
  • Family
    EXTAFREE
  • Contact
    2NO/NC
  • PKWIU
    26.40.44.0
