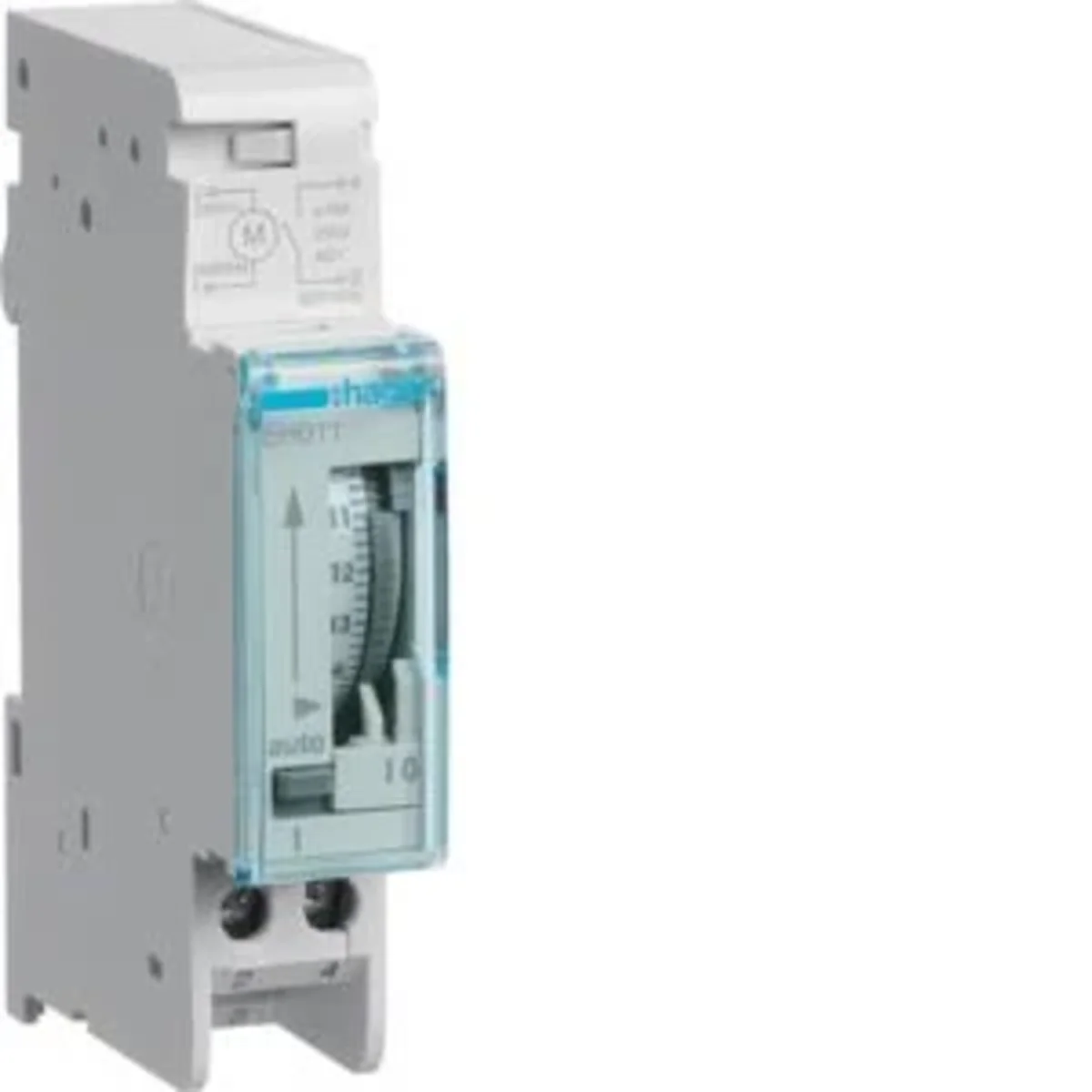

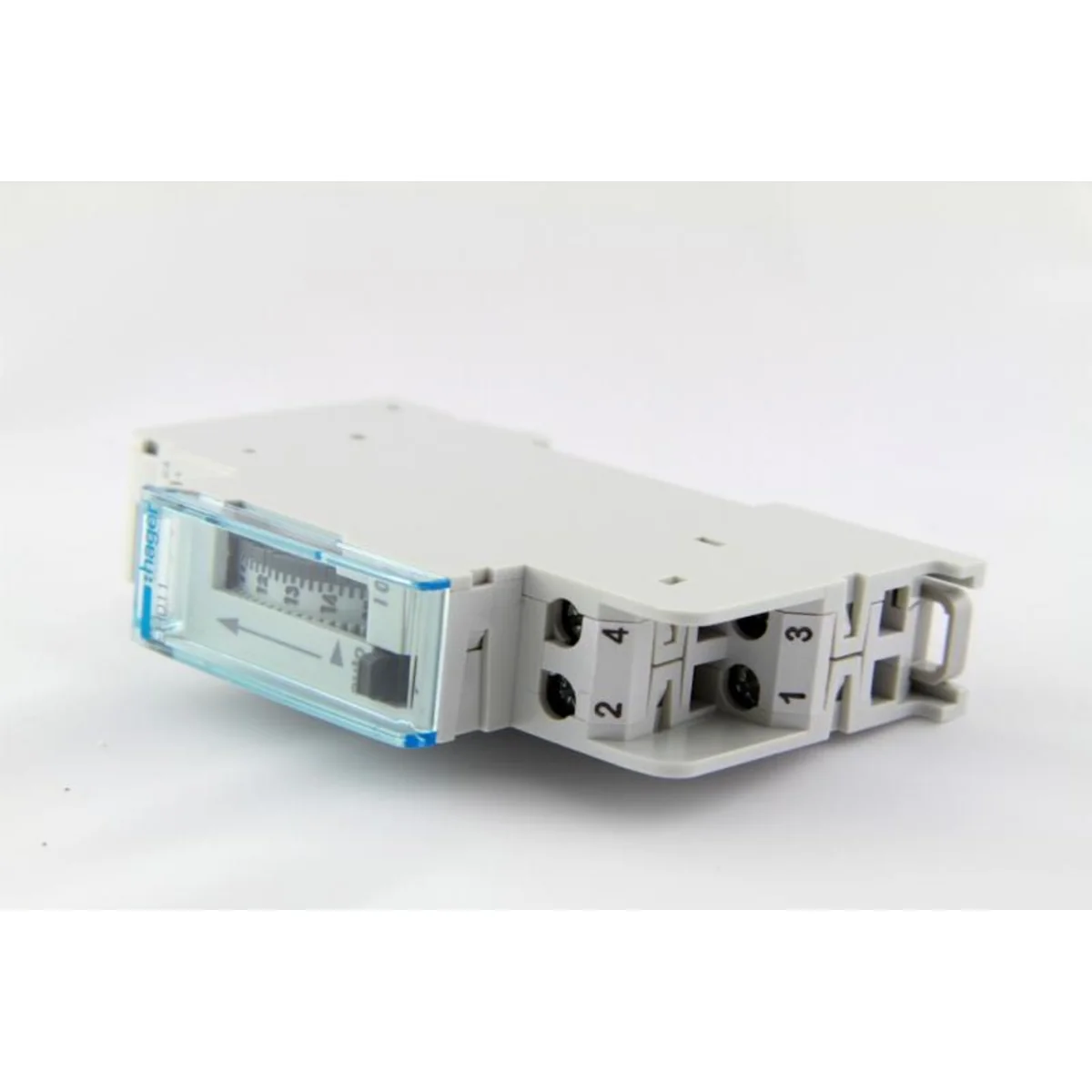

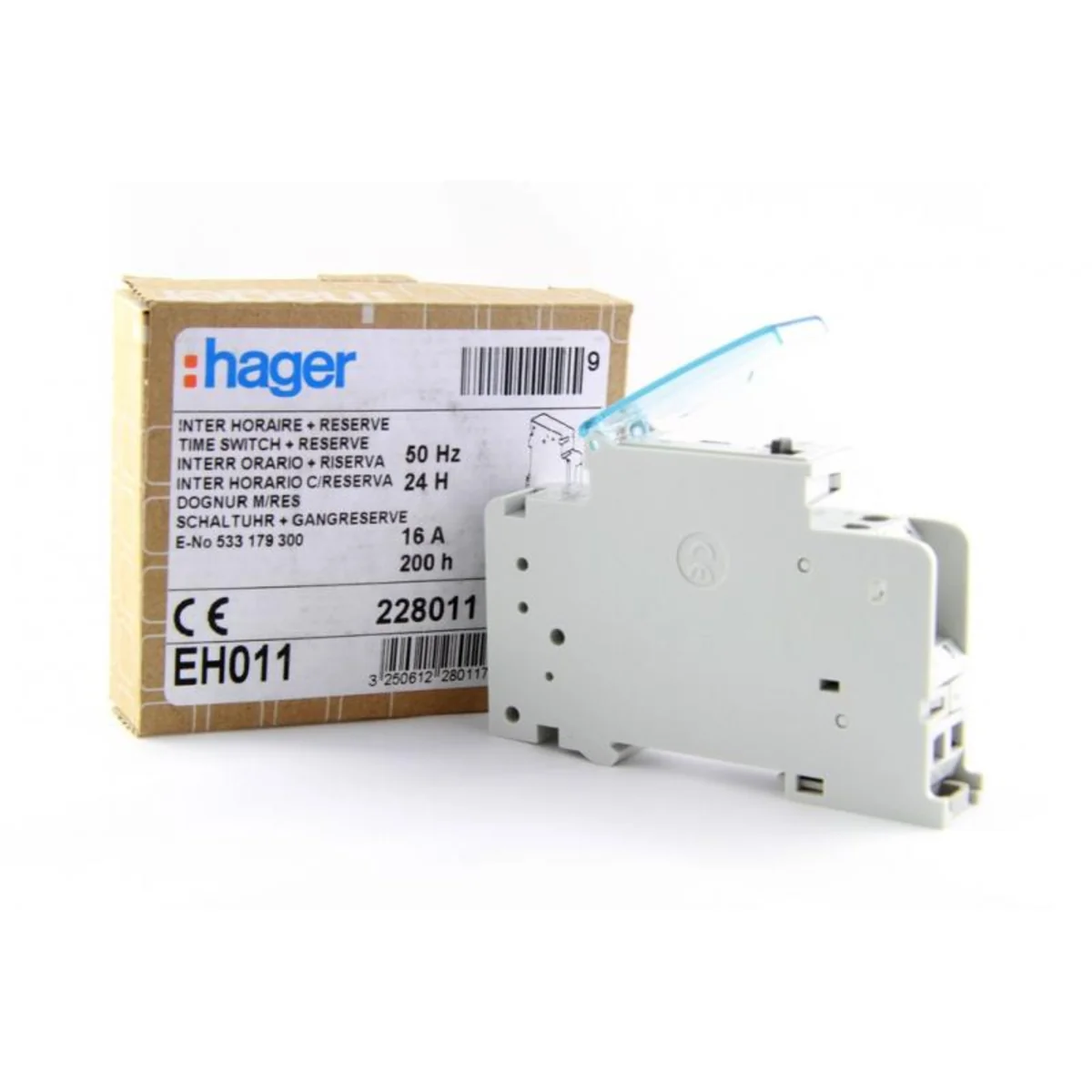

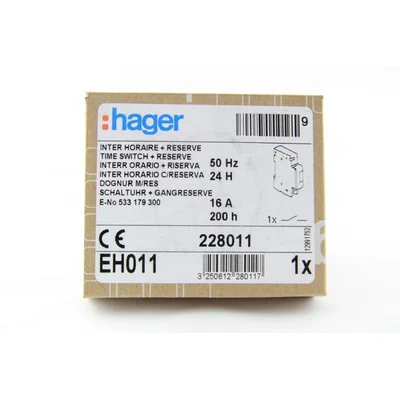

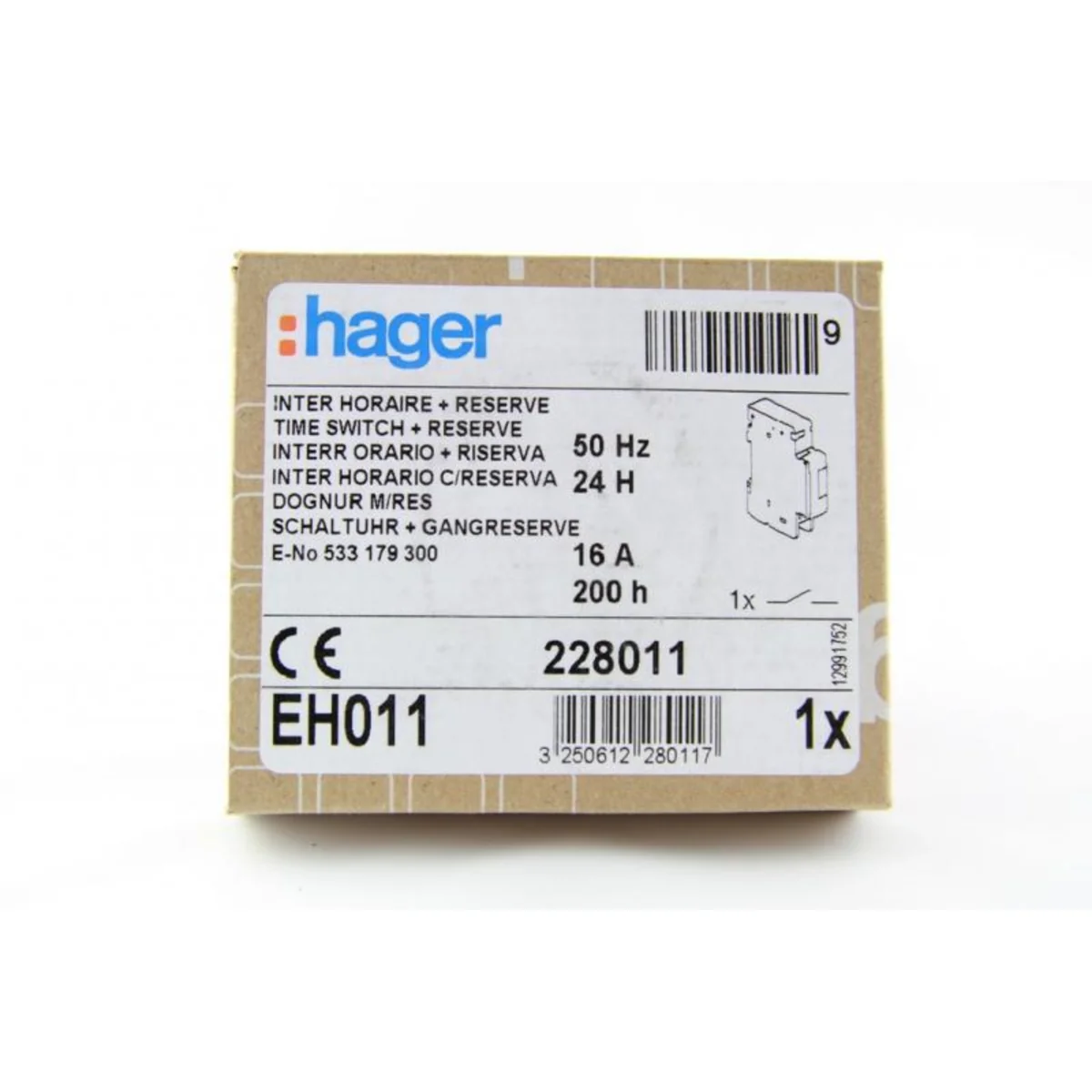

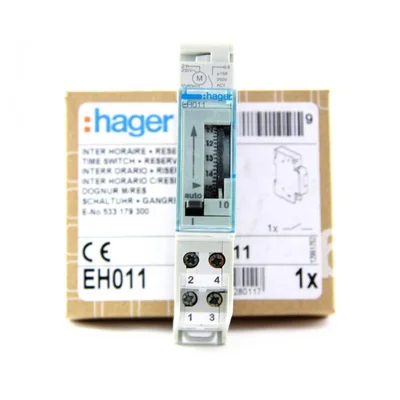

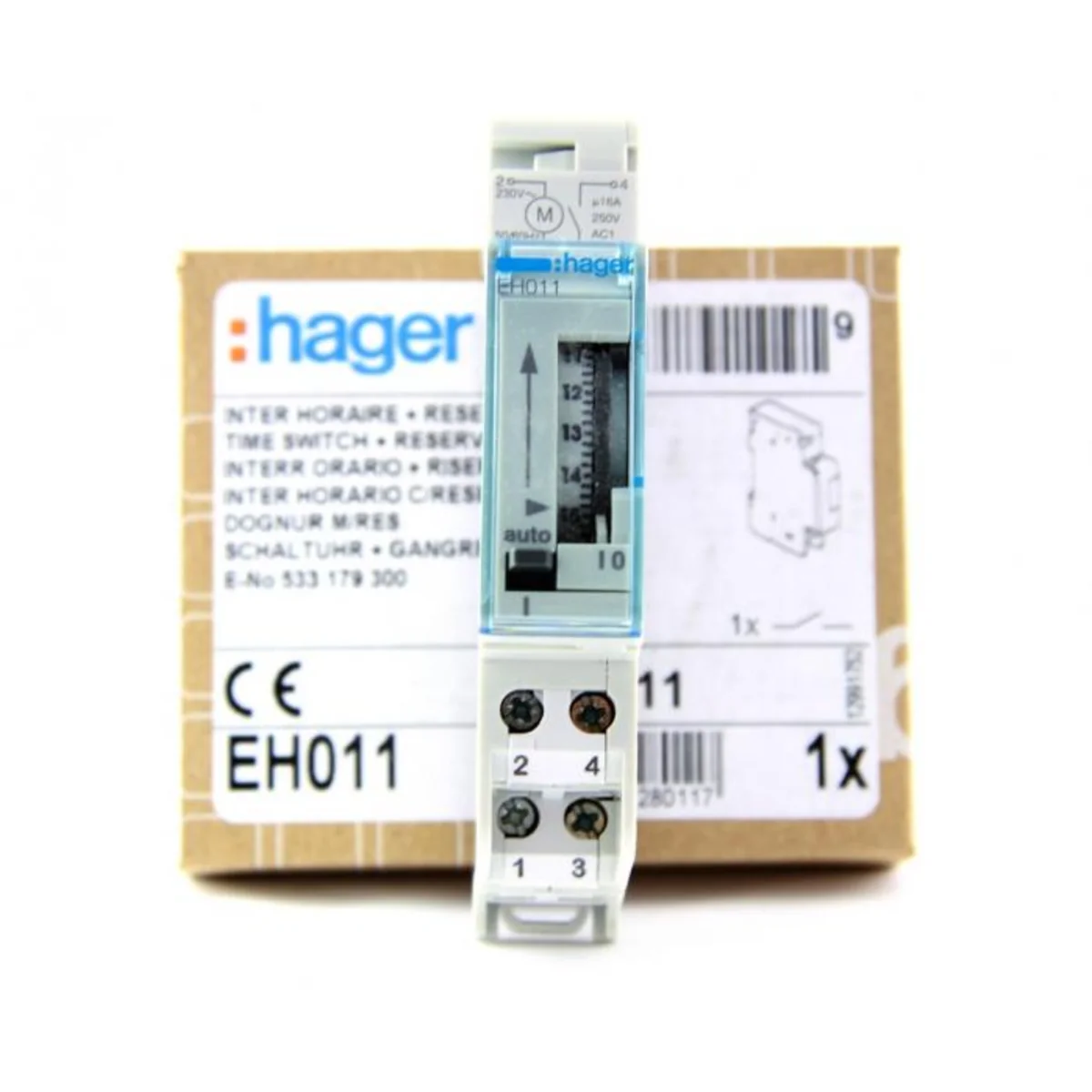

1Z/16A 1-module 24-hour clock with power reserve analog EH011

local index:
APR112HAGE
Catalog No:
EH011
EAN code:
3250612280117
Manufacturer: HAGER
Number of modules: 1
Shortest switching time [min]: 15
Rated current [A]: 16
Price:
73,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 4 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Daily with power reserve (200 hours)

Technical data

  • Number of modules
    1
  • Rated current [A]
    16
  • Type
    daily
  • Number of modules
    1
  • Shortest switching time [min]
    15
  • Level of security
    IP20
  • Breaking capacity
    AC1
  • PKWIU
    26.52.24.0

Other technical data

  • Mounting method
    DIN rail
  • Supply voltage
    230 ... 230 V
  • Frequency supply voltage
    50 ... 50 Hz
  • Autonomy in years
    0.022
  • 60 min program
    No
  • Weekly program
    No
  • Mains synchronous
    No
  • Contact type
    Change-over contact
  • Shortest switching time channel 2
    15 min
  • Program shift divide 2
    15 min
  • Suitable for manual operation
    Yes
  • Nominal switching current at 250 V AC
    16 A
  • Degree of protection (IP)
    IP20
  • Width
    18 mm
  • Depth
    60 mm
  • Number of channels
    1
  • Voltage type (supply voltage)
    AC
  • Autonomy in hours
    200
  • Accuracy per day
    1 s
  • 24 h program
    Yes
  • Annual program
    No
  • Quartz controlled
    Yes
  • Shortest switching time channel 1
    15 min
  • Program shift divide 1
    15 min
  • Automatic switching summer-/winter time
    No
  • Switching preselection
    No
  • Potential free switch contact
    Yes
  • Width in number of modular spacings
    1
  • Height
    80 mm
