1P/8A electronic thermostat EK003

local index:
APT002HAGE
Catalog No:
EK003
EAN code:
3250612310036
Manufacturer: HAGER
Rated voltage [V]: 230
Rated current [A]: 8
Temperature regulation: 2014-05-30 00:00:00
Price:
52,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

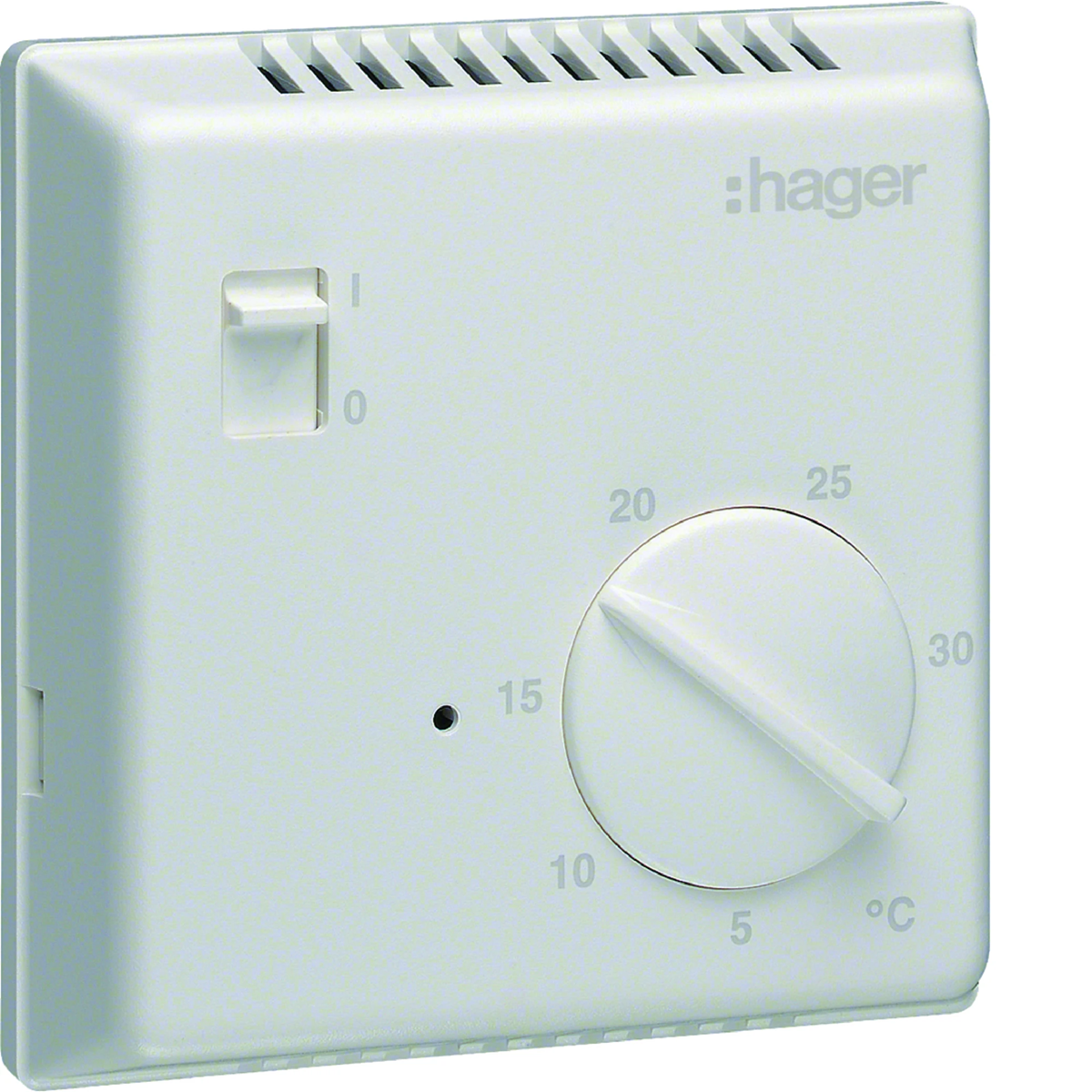

Thermostat 1P/8A, electronic
• electronic thermostats for heating and air conditioning
• manual on/off
• indicator light, showing the heating mode
• limiting the temperature range or locking the temperature at a specific set value
• calibrating the control dial according to the room temperature.

Technical data

  • Rated voltage [V]
    230
  • Temperature regulation
    2014-05-30 00:00:00
  • PKWIU
    26.51.70.0
  • Rated current [A]
    8
  • Level of security
    IP30

Other technical data

  • Type of power supply
    230 V AC
  • Temperature readable
    No
  • Degree of protection (IP)
    IP30
  • Width
    80 mm
  • Class of the temperature control
    IV
  • Differential value
    0.3 ... 0.3 K
  • Mounting method
    Surface mounted/recessed mounted
  • Height
    80 mm
  • Depth
    30 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,114 0,120 6,140 170,360
Width (m) 0,032 0,085 0,315 0,800
Length (m) 0,082 0,055 0,235 1,050
Depth (m) 0,082 0,095 0,360 1,200
