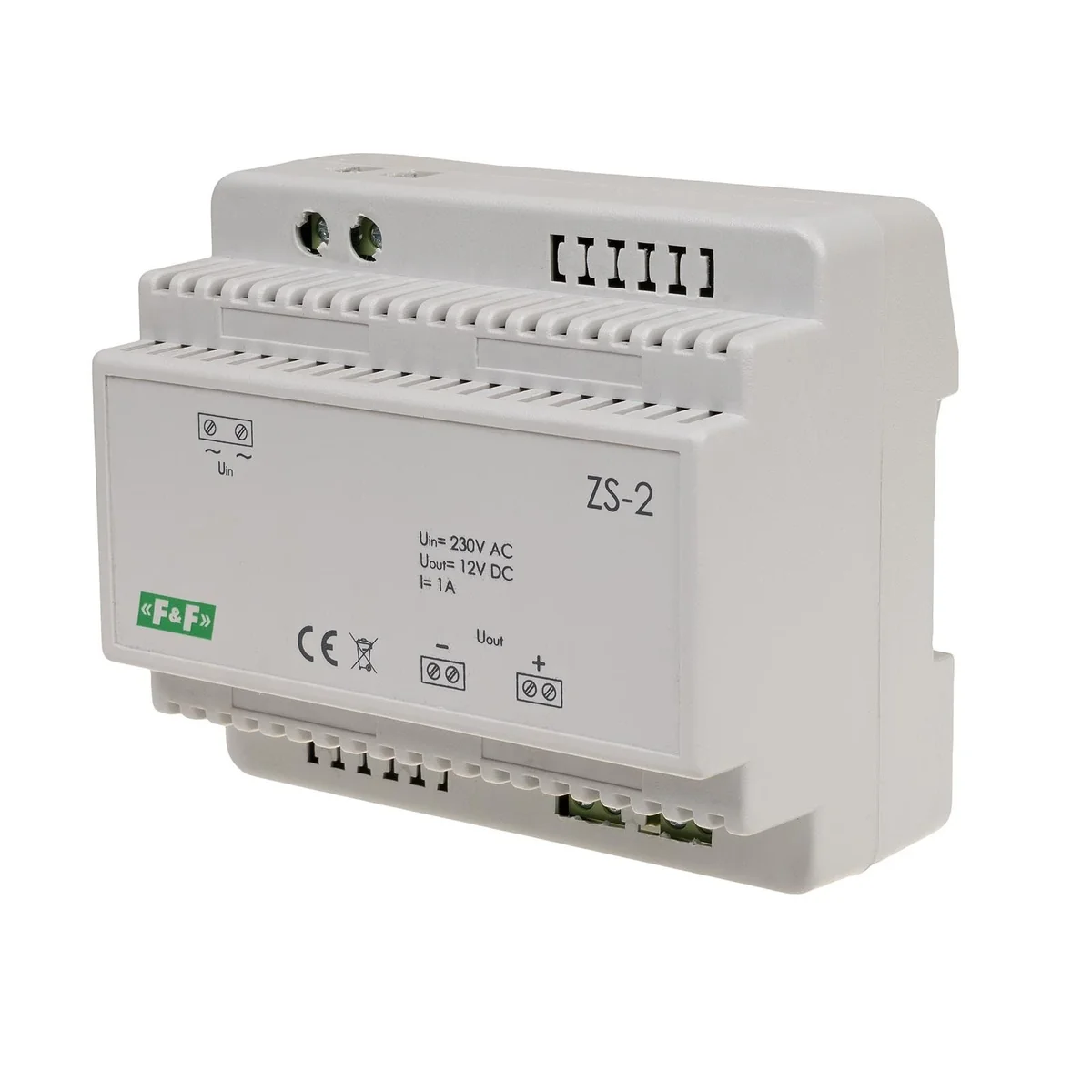

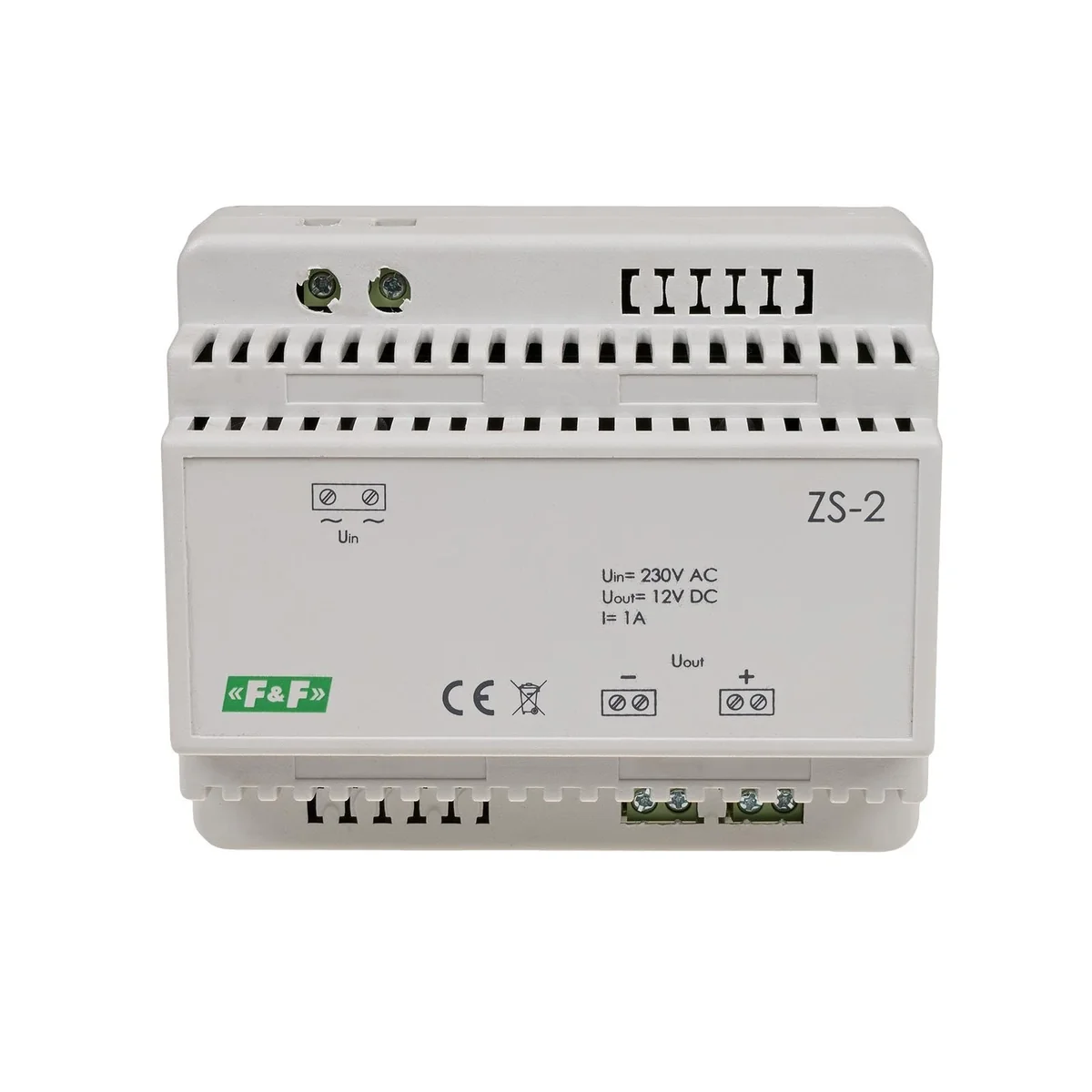

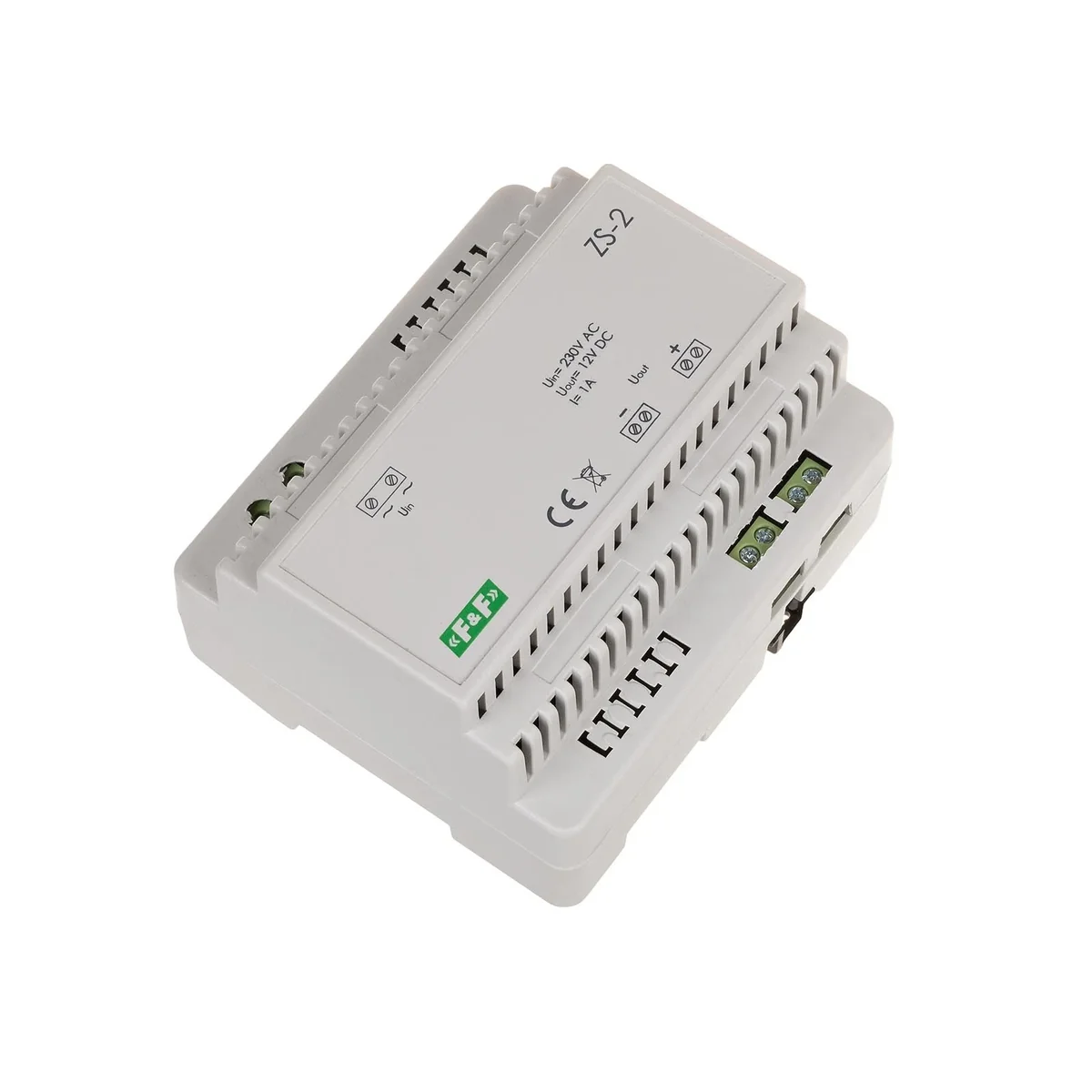

12V ZS-2 stabilized power supply ZS-2
local index:
APN110FIFQ
Catalog No:
ZS-2
EAN code:
5908312595830
Price:
42,78 €
gross / pcs.
(including VAT 23%)
77,78 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Caution!
A long-term overload will result in a voltage drop at the output due to the activation of the thermal fuse inside the stabilizer. After cooling down, the power supply automatically returns to operation.
Technical data
-
Output power [W]12W
-
Input voltage [V]230
-
Working temperature [°C]-10-40
-
Weight [g]550
-
Package height [mm]150
-
Package weight [kg]0.55
-
PKWIU27.11.42.0
-
InstallationOn the TH-35 rail
-
connection2.5mm screw terminals
-
Ripple<3mVrms
-
Dimensions6 modules (105mm)
-
Package width [mm]130
-
Input voltage [V]230
Other technical data
-
Voltage type (supply voltage)AC
-
Max. output current 11 A
-
Rated supply voltage AC 50 Hz230 ... 230 V
-
Output voltage stabilizedYes
-
StabilizedYes
-
Rail mounting possibleYes
-
Modular versionYes
-
Built-in height65 mm
-
Width105 mm
-
Depth65 mm
-
1st secondary output voltage12 ... 12 V
-
Secondary voltage adjustableNo
-
Rated supply voltage AC 60 Hz0 ... 0 V
-
Power output12 W
-
Type of electric connectionScrew-/spring clamp connection
-
Wall mounting possibleNo
-
Width in number of modular spacings6
-
Direct mounting possibleNo
-
Height89 mm
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,670 |
| Width (m) | 0,105 |
| Length (m) | 0,120 |
| Depth (m) | 0,070 |
