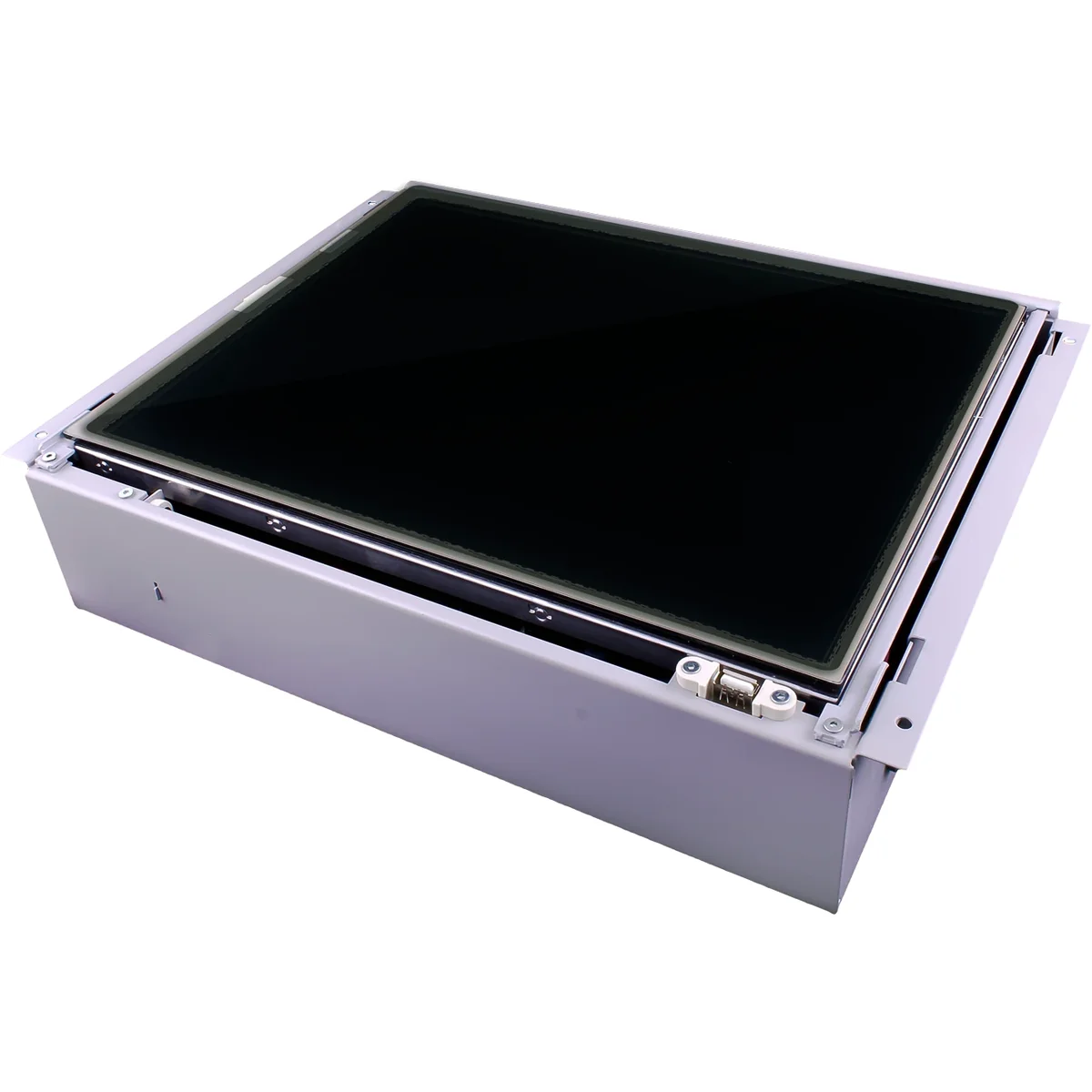

12" computer with touch panel MH-TS12

The mH-TS12, mH-TS15 12 or 15 inch touch unit is the centerpiece of the system. It is mounted outside the switchgear by embedding the panel housing in the wall. It is powered from the 230V mains and requires a separate connection from the main switchboard. It communicates with the system via the CAN line (6 or 10m cable included). Due to the invasive installation (the need to cut a hole in the wall), the location of the unit must be predicted   on   stage   construction   building   (before   plastering).   The touch panel is used to configure the entire system: Programming  preliminary  (location element in on building plan)

• Programming dimmer settings (hysteresis)
• Setting device programmers (on a yearly basis every 15 minutes)
• Setting heating and cooling timers
• Setting the hysteresis of motor devices (blinds, blinds)
• Defining scenes (can include light, blinds, temperature, switching on selected receivers)
• Setting the color of the interface (adjustment to individual needs)
• Uploading photos to the screensaver (electronic frame)
• Configuring the GSM and Ethernet module
• Firmware update (using flash drive)
