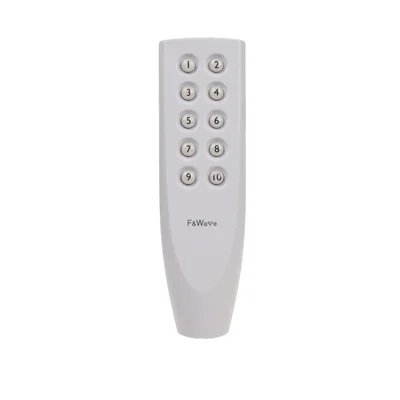

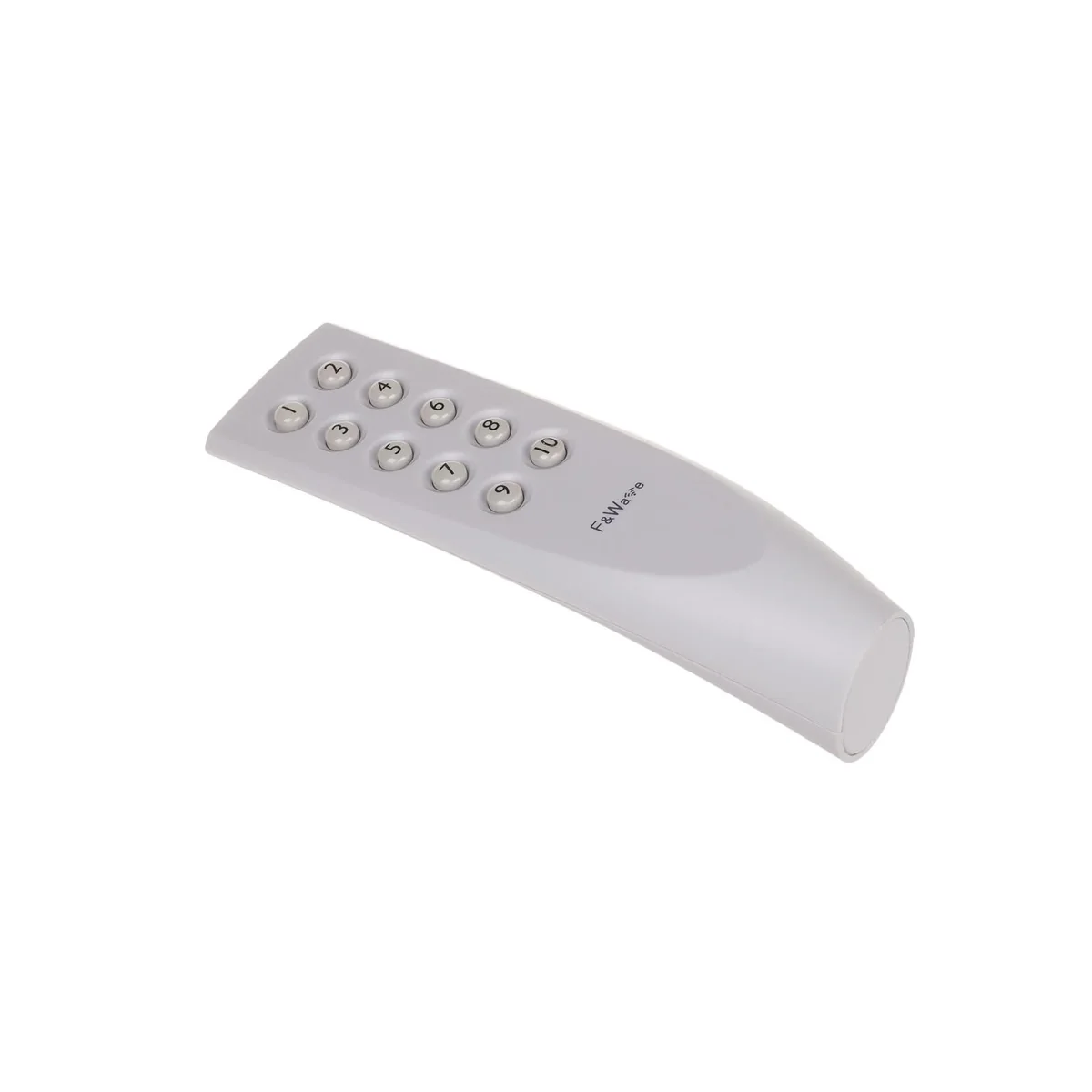

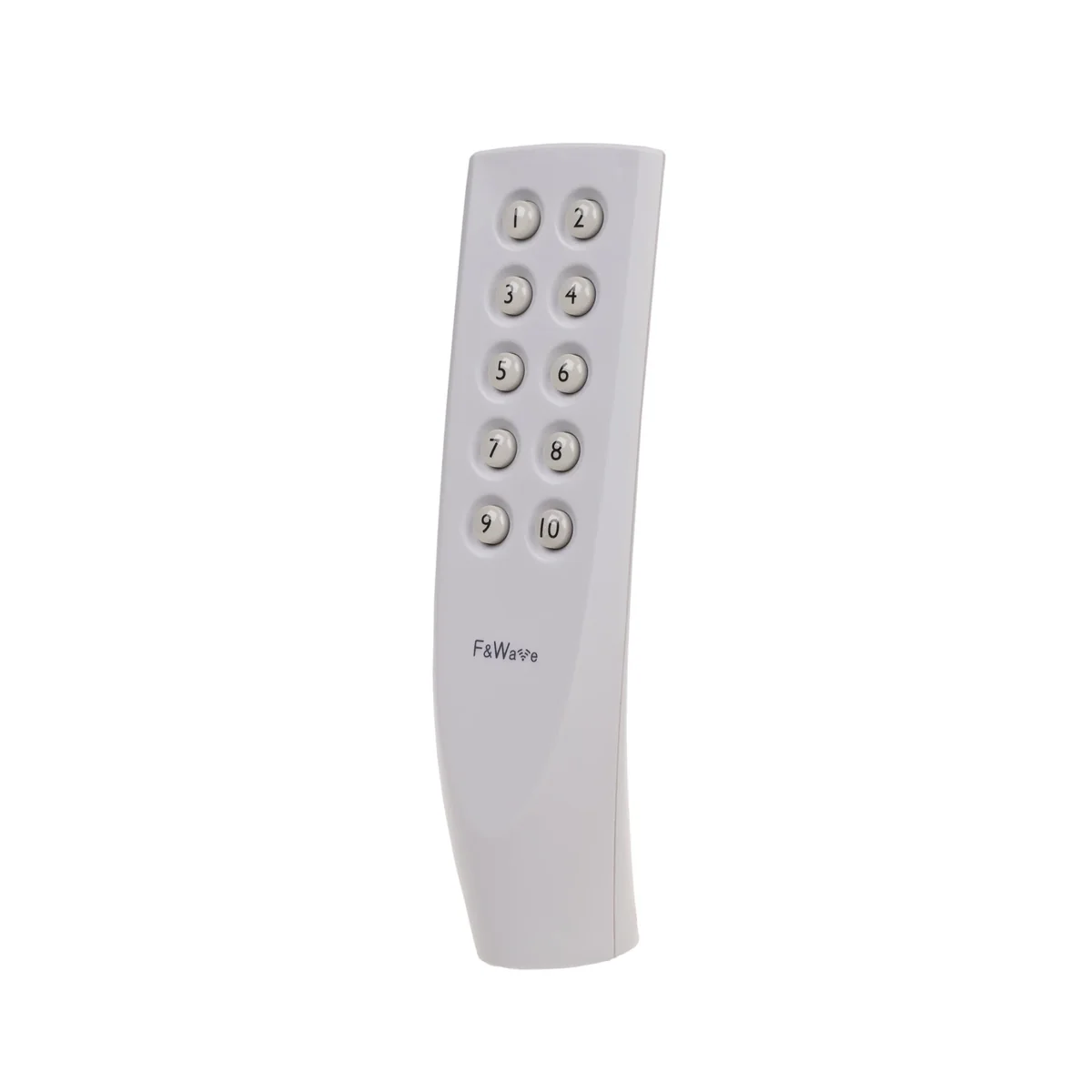

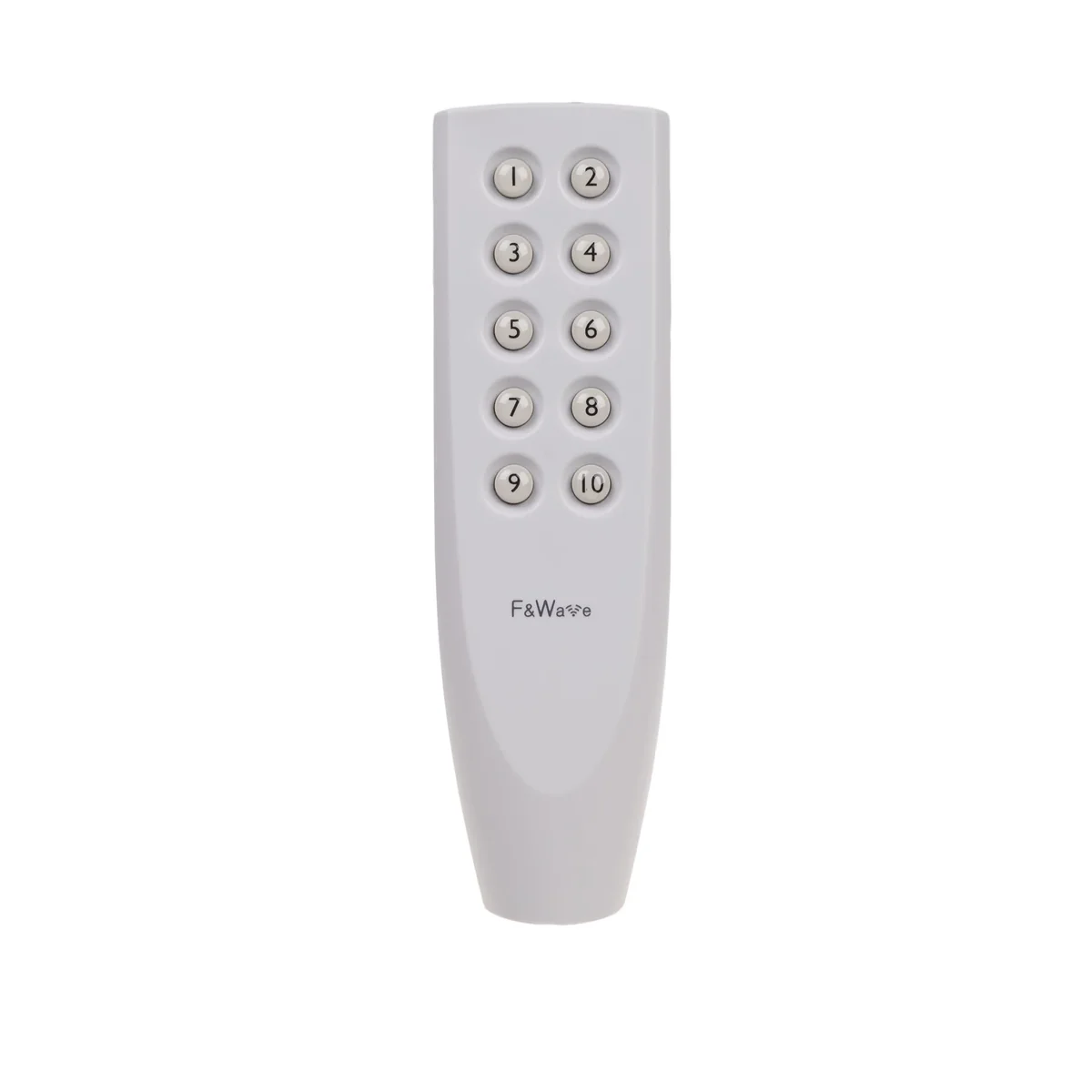

10 button radio remote control FW-RC10G

local index:
APL024FIFQ
Catalog No:
FW-RC10G
EAN code:
5908312599623
Manufacturer: F&F
Frequency [Hz]: 868
Number of buttons: 10
Color: Gray
Price:
36,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Allows you to control the receivers of the F&Wave system. The receivers are manufactured in a version for mounting in a flush-mounted  Ø60 box, as well as for installation on a TH-35 rail (width of 1 module 17.5 mm). Transmitters in the F&Wave system are available in two versions, as handy remote controls (4- and 10-button) and in a version for mounting in a flush-mounted box.

Technical data

  • Frequency [Hz]
    868
  • Color
    Gray
  • Dimension [mm]
    43×149×44
  • Power [V]
    3
  • Number of buttons
    10
  • Working temperature [°C]
    -25 - 50
  • Range [m]
    100
  • PKWIU
    26.30.12.0

Other technical data

  • Radio frequency
    868 MHz
  • Rolling code system
    Yes
  • Number of commands
    10
  • Flush-mounted radio transmitter
    No
  • With radio coding device
    Yes
  • Current supply
    Battery
  • Modulation
    FM
  • Range
    100 m
  • With manual radio transmitter
    Yes
  • Surface mounted radio transmitter
    No
  • Keyboard protection cover
    Yes

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,034
Length (m) 0,095
Depth (m) 0,150
