154639
0
1" solenoid valve ZAW-1CAL
local index:
API109FIFQ
Catalog No:
ZAW-1CAL
EAN code:
5908312597001
Price:
307,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

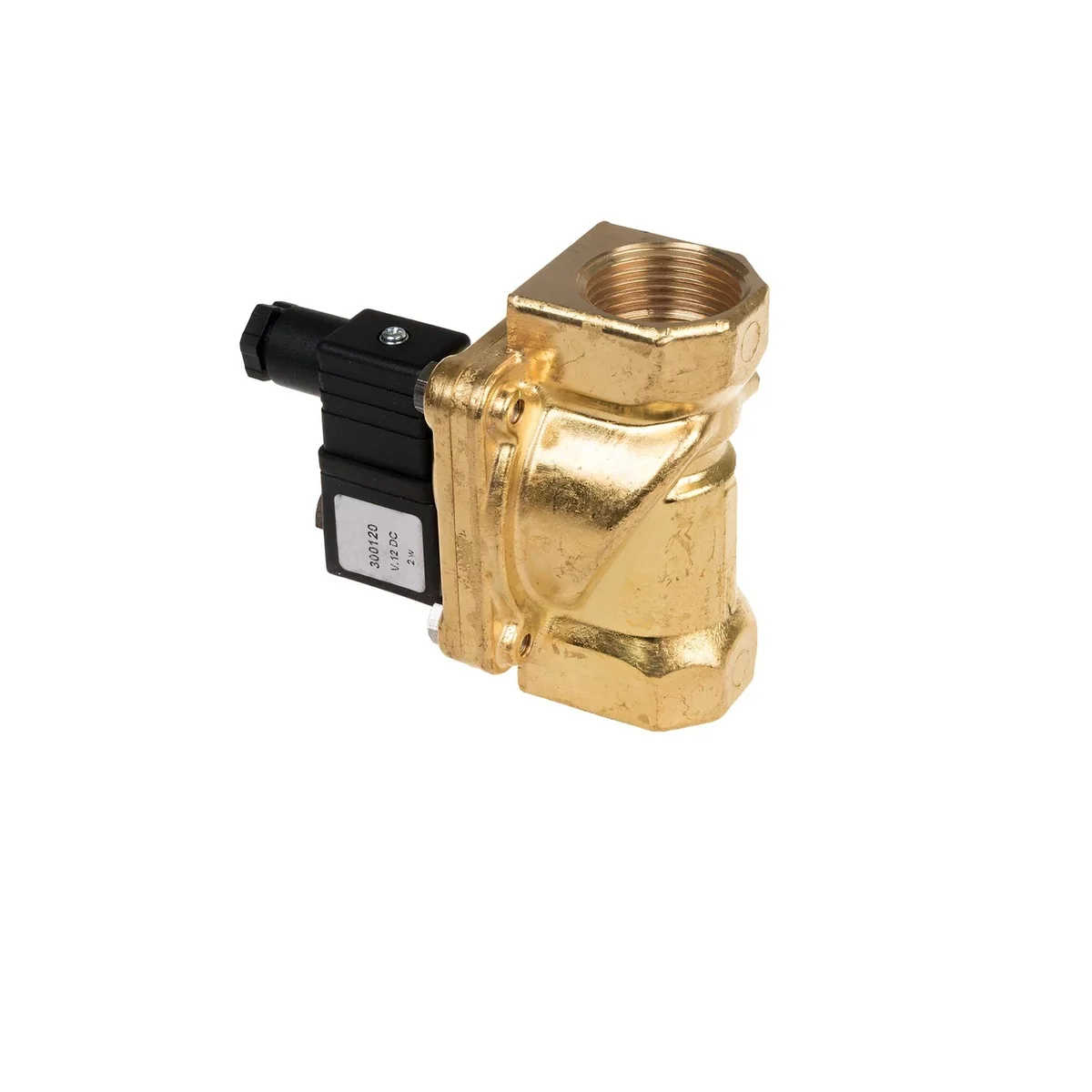

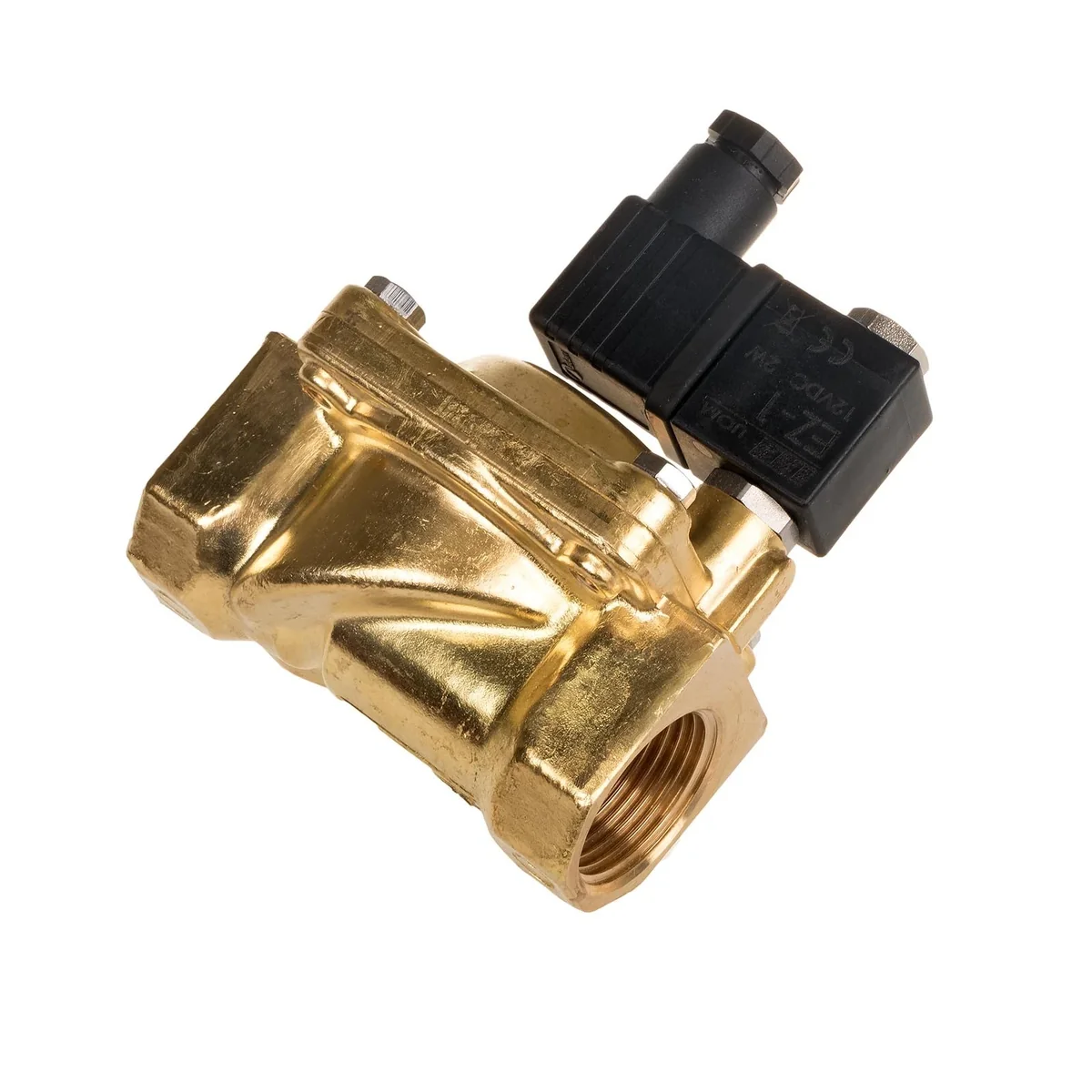

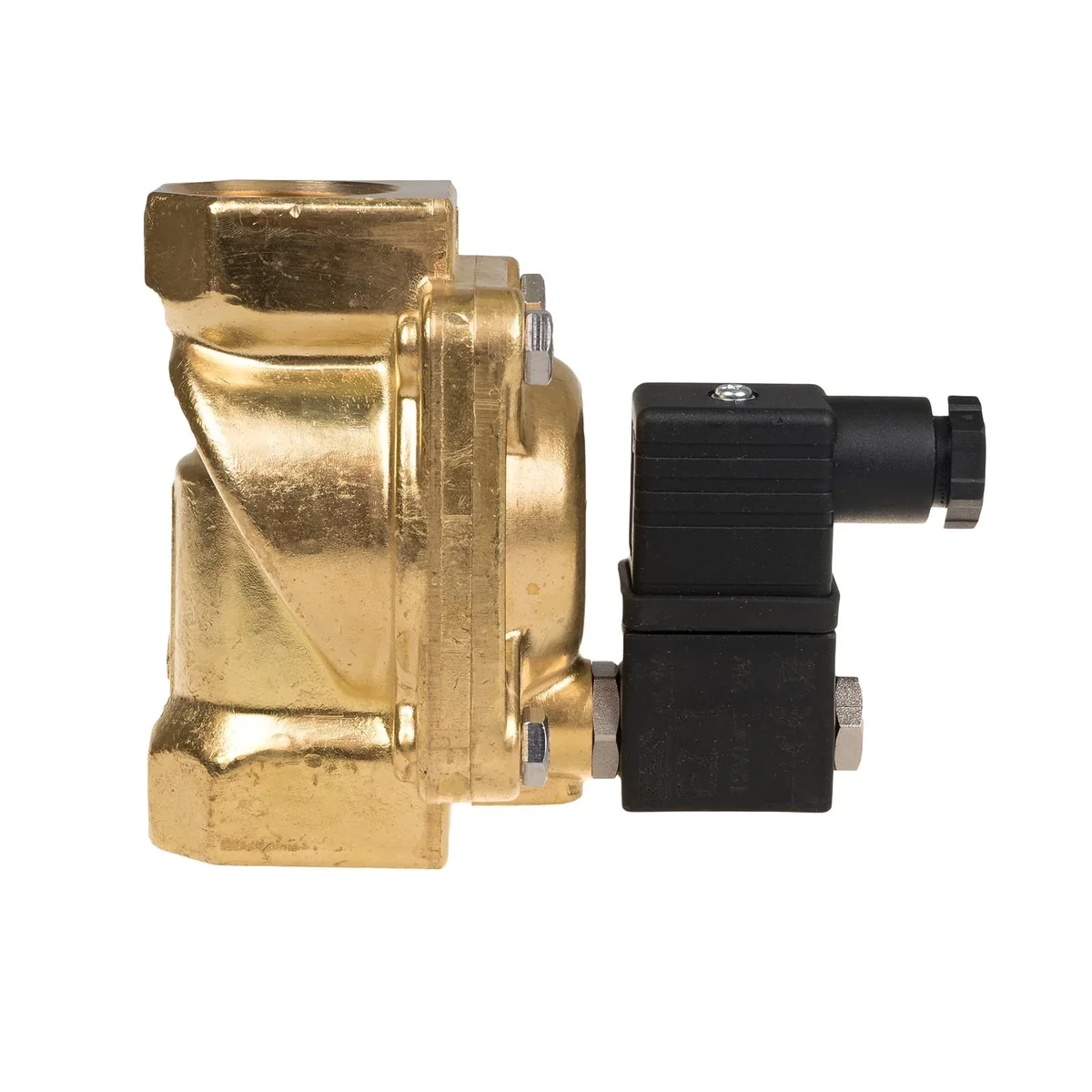

E-Valve ZAW-3/4CAL is a two-way impulse solenoid valve with servo-assist. It is designed to work with the SAM-01 controller and is part of the ASP Automatic Anti-flooding System.
| Connection G | 1" |
| Coil type | EZ-1 |
Technical data
-
Diameter [mm]25
-
Package height [mm]60
-
Package weight [kg]0.4
-
Coil power [V]12
-
Maximum operating differential pressure [bar]8
-
PKWIU28.12.14.0
-
ambient temperature [°C]-10-55
-
Package width [mm]72
-
Coil power [W]2
-
KV flow [m^3/h]10.2
-
Maximum liquid viscosity [mm²/s]25cSt
Other technical data
-
Housing materialPlastic
-
Surface protectionOther
-
Nominal diameter1 inch (25)
-
ModelStraight
-
Material qualityDezincification resistant brass (DZR)
-
Material sealingPolytetrafluoroethylene (PTFE)
-
Connection 1Internal thread metric
-
Connection voltage12 V
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
Files to download
