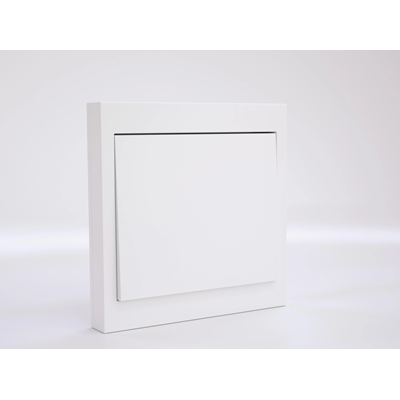

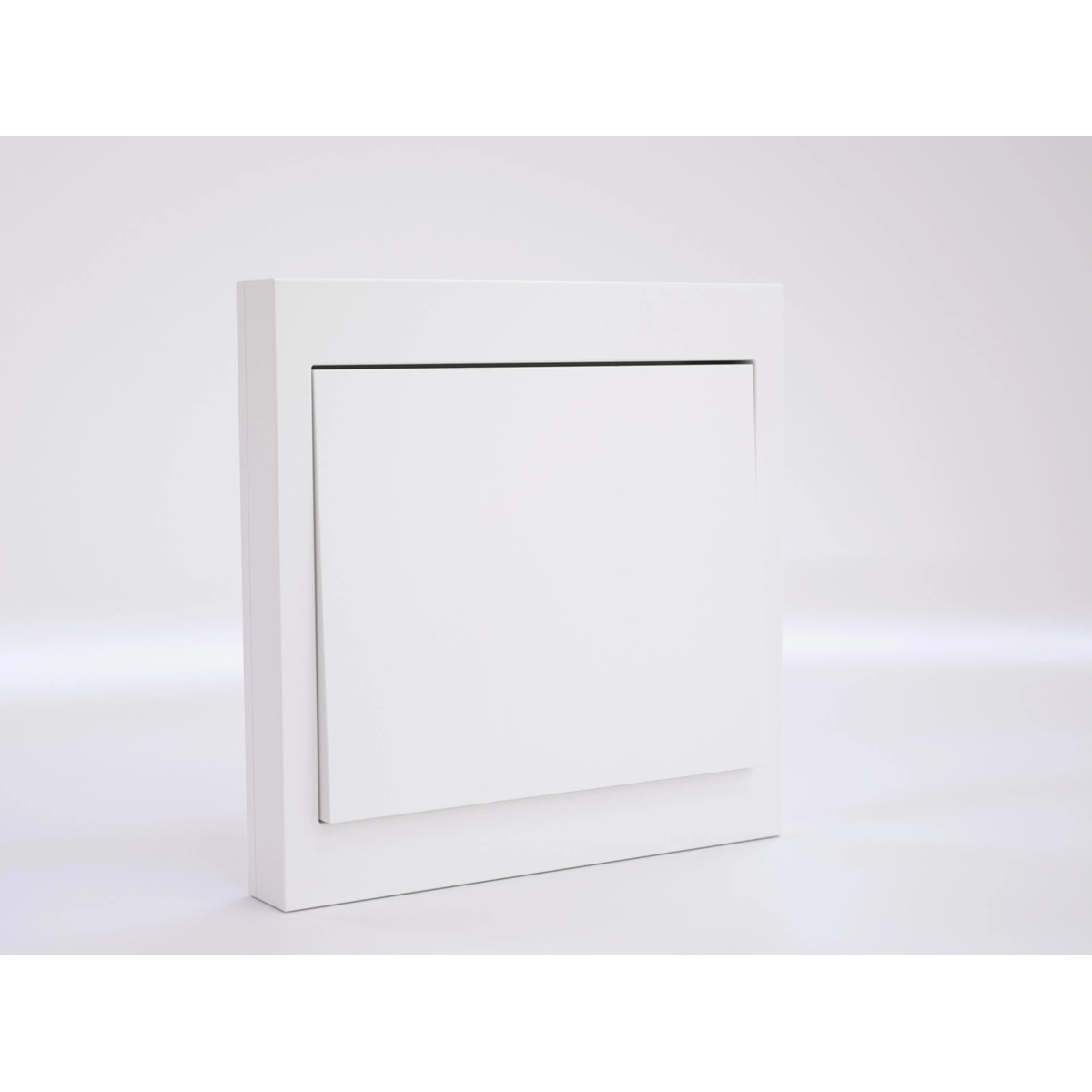

1-key radio wall switch, battery-operated FW-WS1

local index:
APS003FIFQ
Catalog No:
FW-WS1
EAN code:
5908312599647
Manufacturer: F&F
Battery: CR2032
Power type: Battery
Durability [h]: 15
Price:
24,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Device Features
   Battery life is approx. 15 hours of broadcasting (pressed key on the button)
   The operating temperature is 5÷50°C
   Current consumption: when the key is pressed - 15mA, in standby mode - 12mA;
* 1-button remote control transmitter;
* Cooperation with F&Wave;
* remote control receivers Ability to control any number of receivers
* On/off functionality (bistable switch) with receivers FW-R1P, FW-R1D, FW-R2P, FW-R2D, FW-D1P, FW-D1D, FW-LED2P , FW-LED2D;
* Raise/lower the roller shutter functionality with FW-STR1P, FW-STR1D receivers;
* Dim/brighten the light functionality with FW-D1P, FW-D1D, FW-LED2P, FW receivers -LED2D.
* Installation does not require a flush-mounted box.


Scope
In open space, without the presence of factors disrupting the range of radio-controlled devices, it oscillates around 100 m.  In built-up conditions and in the presence of sources of interference (power lines, transmitters, etc.) the actual range may be smaller. The range can be improved by direct retransmission of modules within each other's range.

Technical data

  • Battery
    CR2032
  • Durability [h]
    15
  • Power
    3VDC
  • PKWIU
    26.30.12.0
  • Power type
    Battery
  • Dimensions [mm]
    86x86x15
  • Frequency [MHz]
    868

Other technical data

  • Radio frequency
    868 MHz
  • Rolling code system
    Yes
  • Number of commands
    1
  • Flush-mounted radio transmitter
    No
  • With radio coding device
    Yes
  • Current supply
    Battery
  • Modulation
    FM
  • Range
    100 m
  • With manual radio transmitter
    No
  • Surface mounted radio transmitter
    Yes
  • Keyboard protection cover
    Yes

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,015
Length (m) 0,090
Depth (m) 0,086
