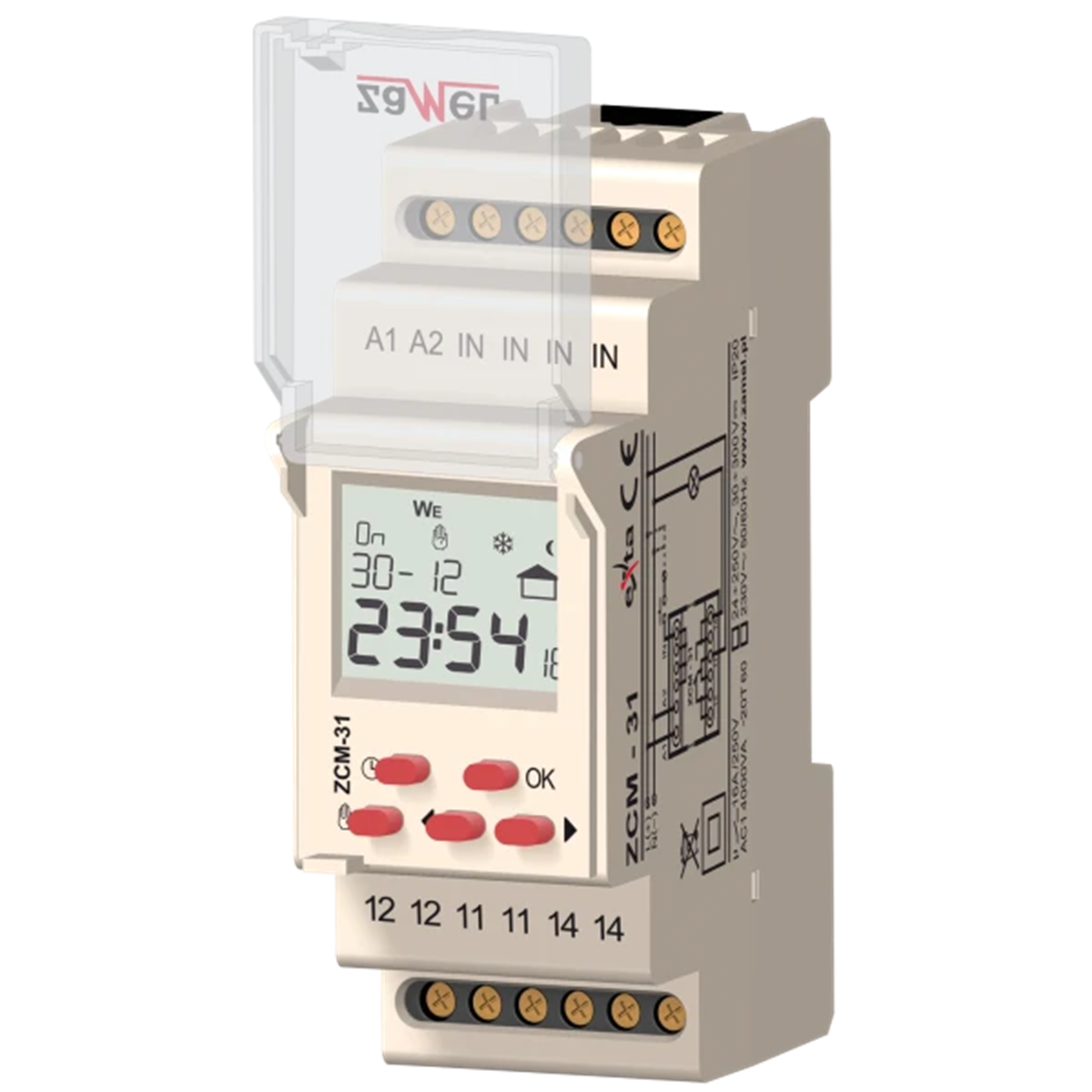

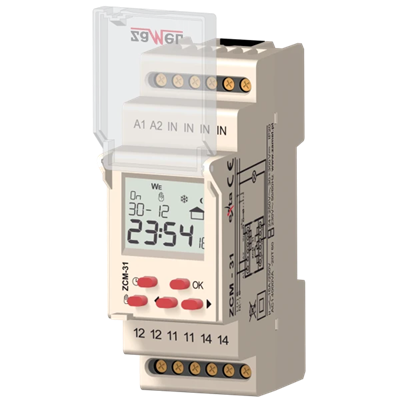

1-channel astronomical timer programmer 230V AC TYPE: ZCM-31 EXT10000156

local index:
APR001ZAME
Catalog No:
EXT10000156
EAN code:
5903669008033
Manufacturer: ZAMEL
Number of channels: 1
Number of contacts: 0NO 0NC
Installation: On the TH-35 rail
Price:
77,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

ZCM-31 digital control clocks are used to implement time functions in automation and control systems. Turning the device on/off is related to sunrise and sunset (dawn and civil twilight). In the calculations of sunrise and sunset times, information about the geographical coordinates of the clock's installation location, the current date and the offset to universal time are used. The system calculates the end of civil twilight, i.e. the phase in which the center of the sun's disk is 6o below the horizon - the sun's disk is not visible, but the sky is illuminated with diffused sunlight. The system additionally has a programmable night break function and the ability to shift the calculated time of sunrise / sunset in the range of ± 120 minutes. The construction of the housing allows the system to be mounted on a TH 35 rail and, if necessary, to seal the device. The design of the system guarantees battery backup of all settings in the absence of supply voltage.

Technical data

  • Number of channels
    1
  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Level of security
    IP20
  • Relay power [VA]
    4000
  • Number of contacts
    0NO 0NC
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Type
    Astronomical
  • PKWIU
    27.12.40.0
