Käfigklemmen 630-800A Al/Cu 3P 4x240mm² HYE007H
local index:
ALA238HAGE
Catalog number:
HYE007H
EAN code:
3250613370701
Price:
1 861,24 zł
brutto / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

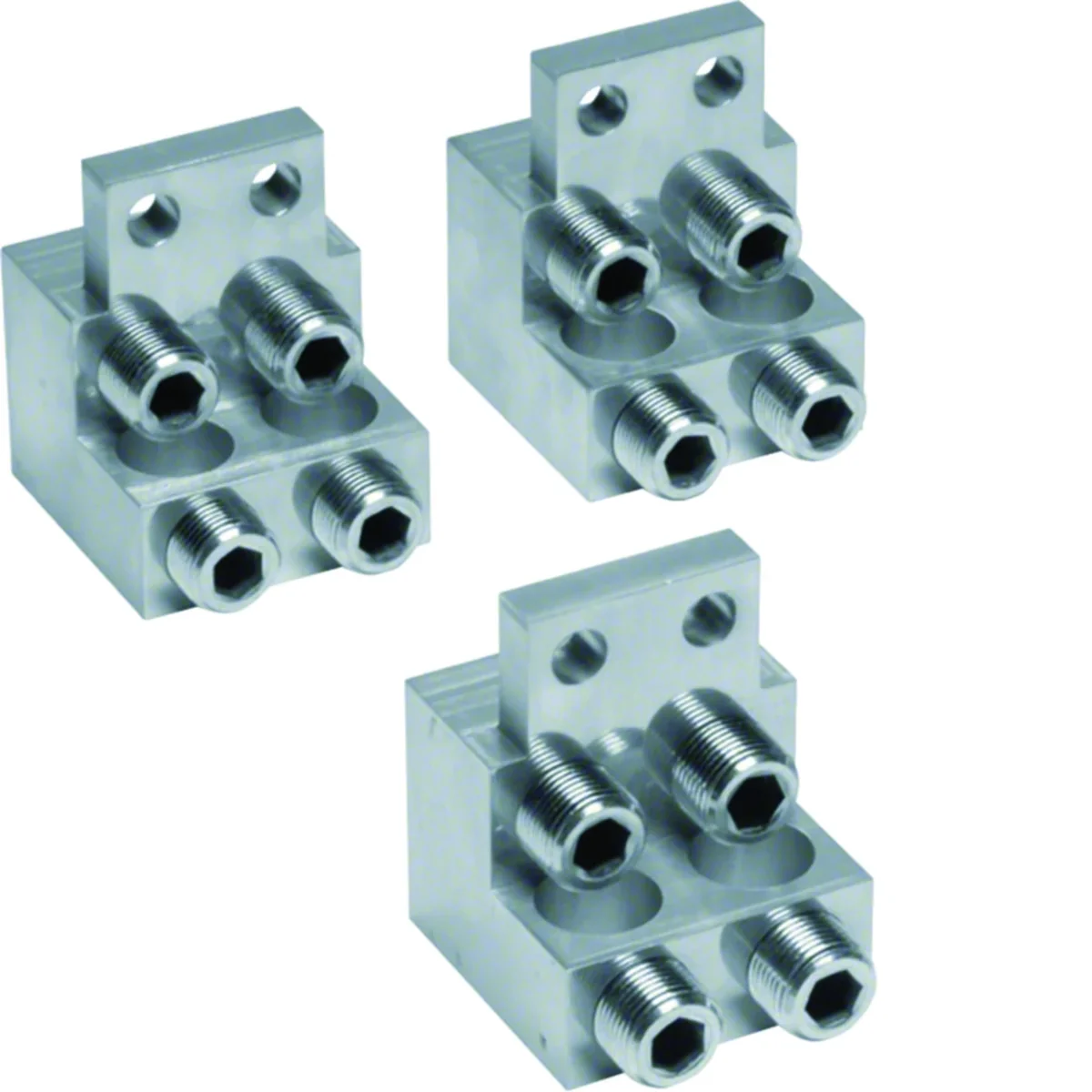

Käfigklemmen:
- 630–800 A
- Leitermaterial: Cu/Al
Technical data
-
Anzahl der Pole3
-
Nennstrom [A]800
-
Verlustleistung [W]12
-
Leiterquerschnitt (Leine) [mm²]35 - 240
-
PKWIU27.33.13.0
-
Anzugsmoment [Nm]25
-
SchutzgradIP4X
-
Verlustleistung pro Pol [W]4
-
Leiterquerschnitt (Draht) [mm²]4 x 35-240
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 9 pcs. | 216 pcs. | 1 pcs. | 9 pcs. | 216 pcs. |
| Weight (kg) | 1,185 | 10,980 | 286,520 | 1,185 | 10,980 | 286,520 |
| Width (m) | 0,130 | 0,310 | 0,800 | 0,130 | 0,310 | 0,800 |
| Length (m) | 0,080 | 0,210 | 1,050 | 0,080 | 0,210 | 1,050 |
| Depth (m) | 0,170 | 0,360 | 1,200 | 0,170 | 0,360 | 1,200 |
