SAGITTA MULTI Dvourodinový interkom set, 2drát, přisazený, bílý OR-DOM-SG-919

Interkomová sada OR-DOM-SG-919 SAGITTA MULTI je určena pro instalaci do dvourodinných, dvoubytových domů. It has the possibility of creating a 2, 3 or 4 family system.
A big advantage of this set is the two-wire installation between the intercoms and the external panel (there is no need to additionally power the electric strike).
The device has all the basic functions of an intercom, and also allows you to control an automatic gate.

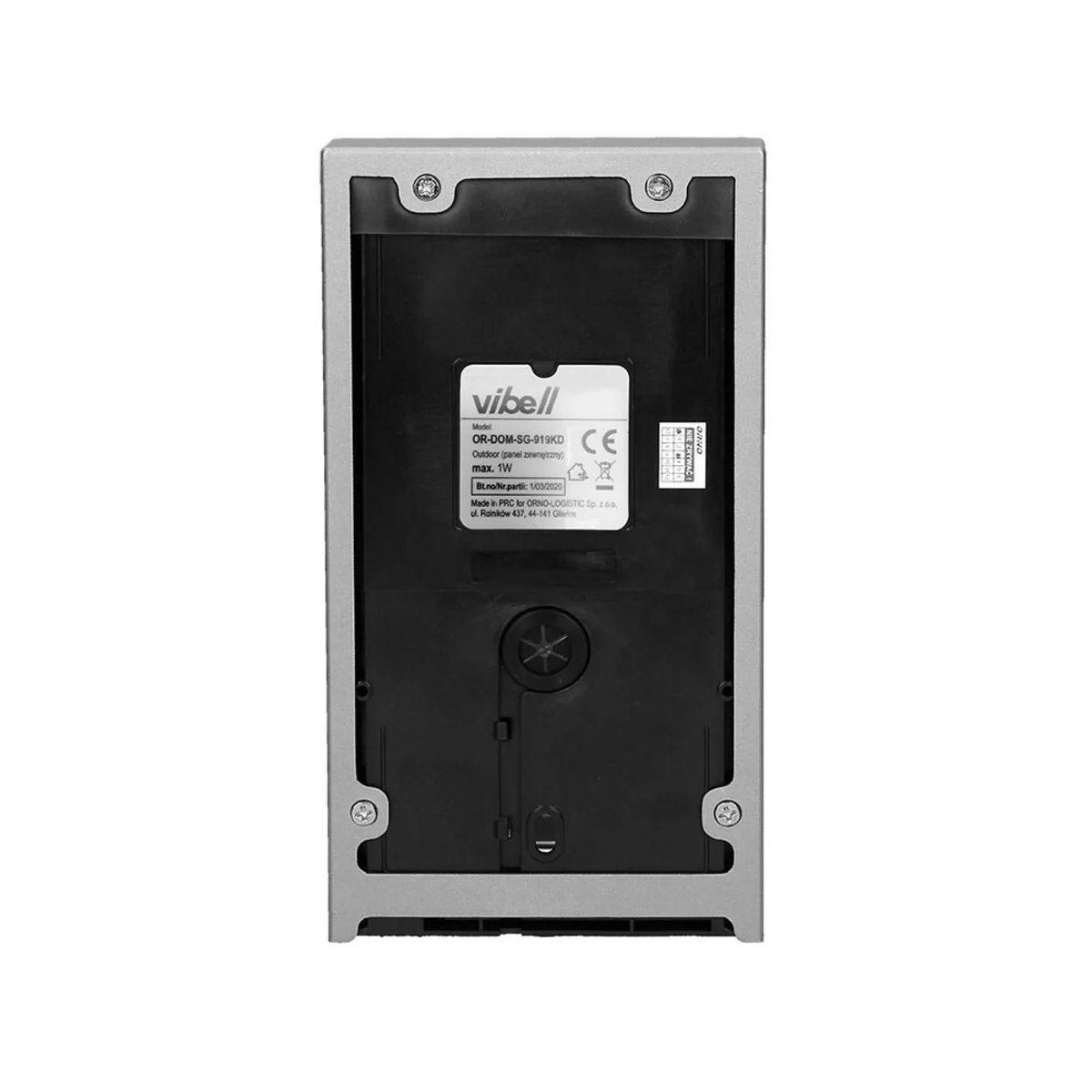

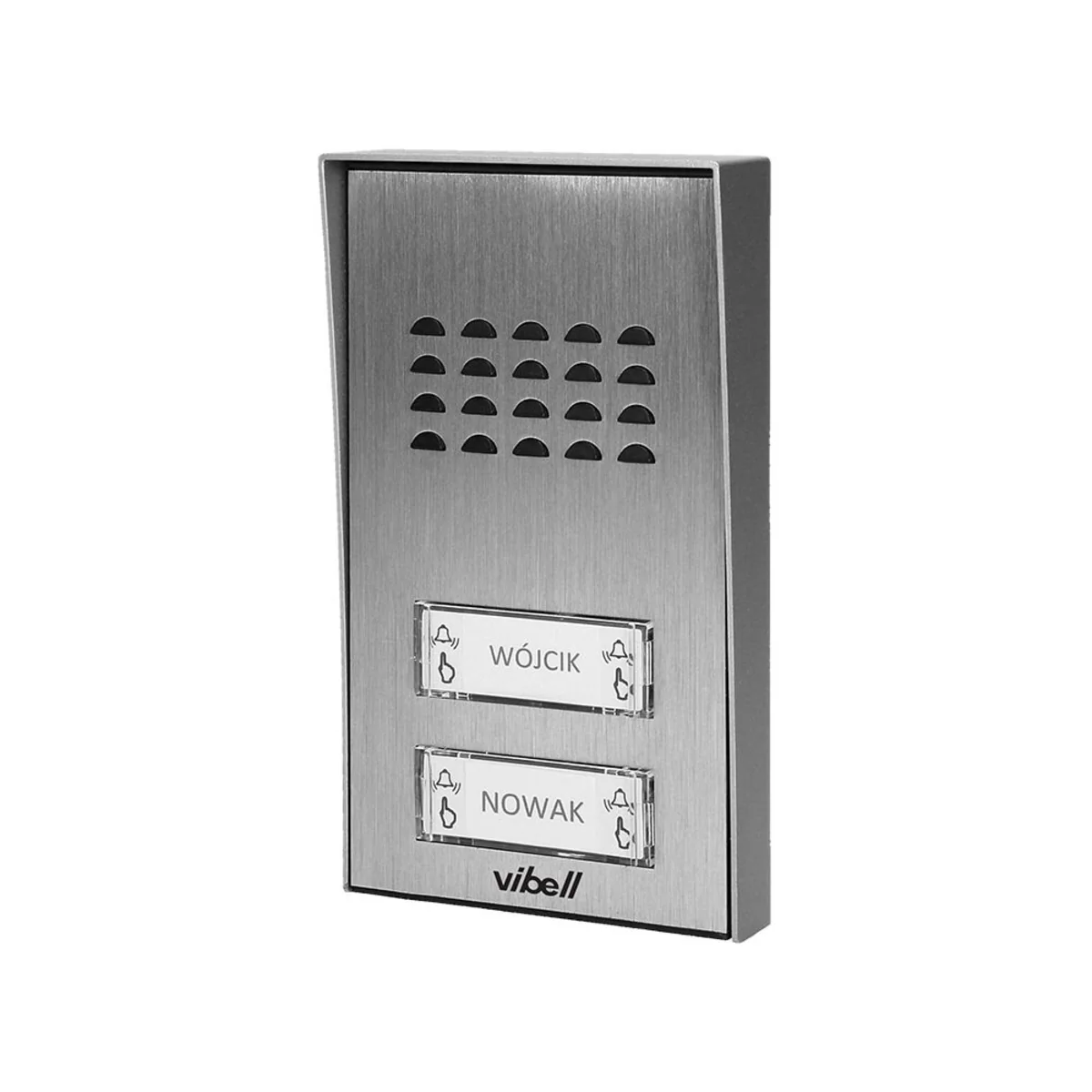

External panel:

• surface mounting (protective roof included)
• direct control of the electric strike
• the electric strike does not require additional power supply
• backlighting of the name space
• dimensions: 96 x 180 x 30 mm (width / height / depth)

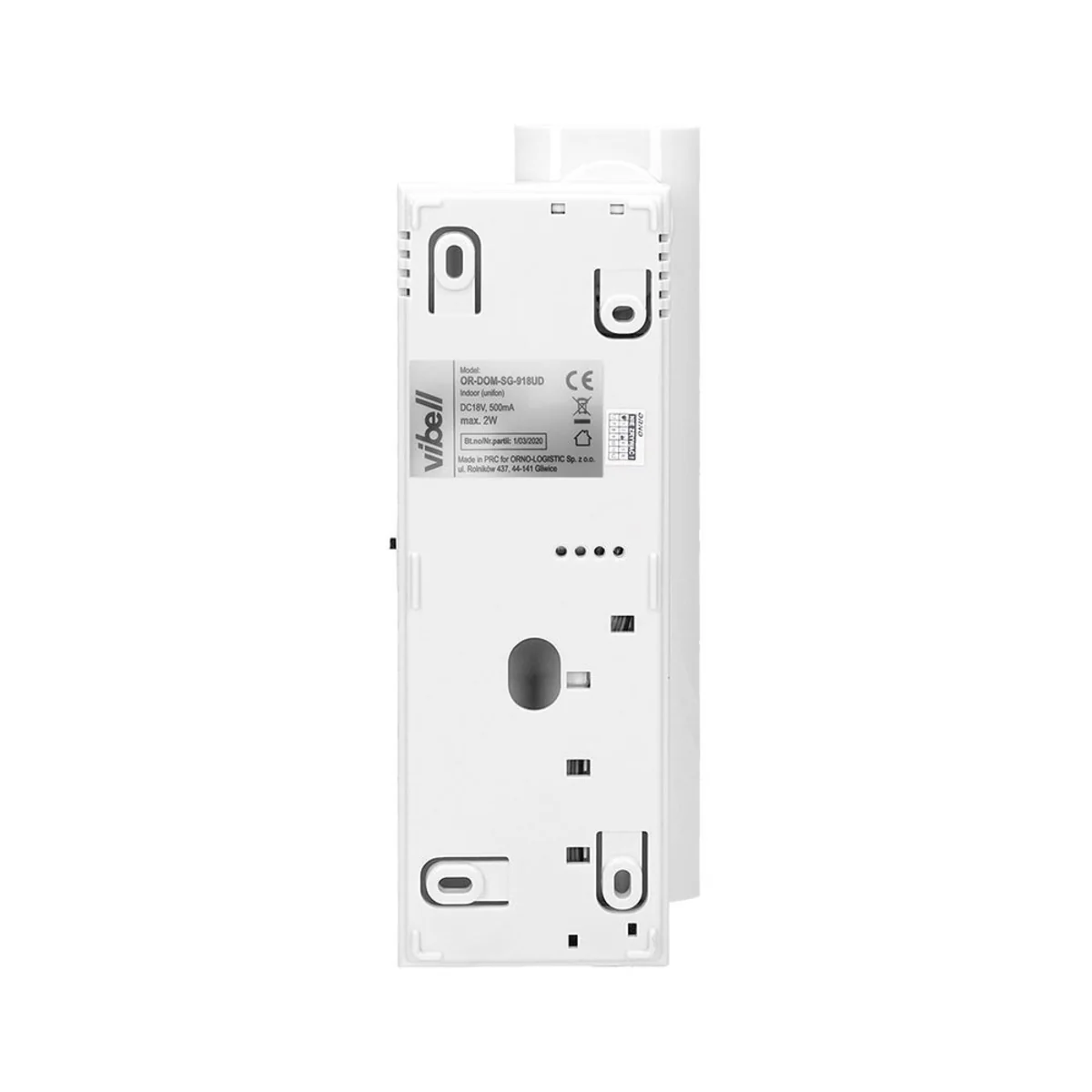

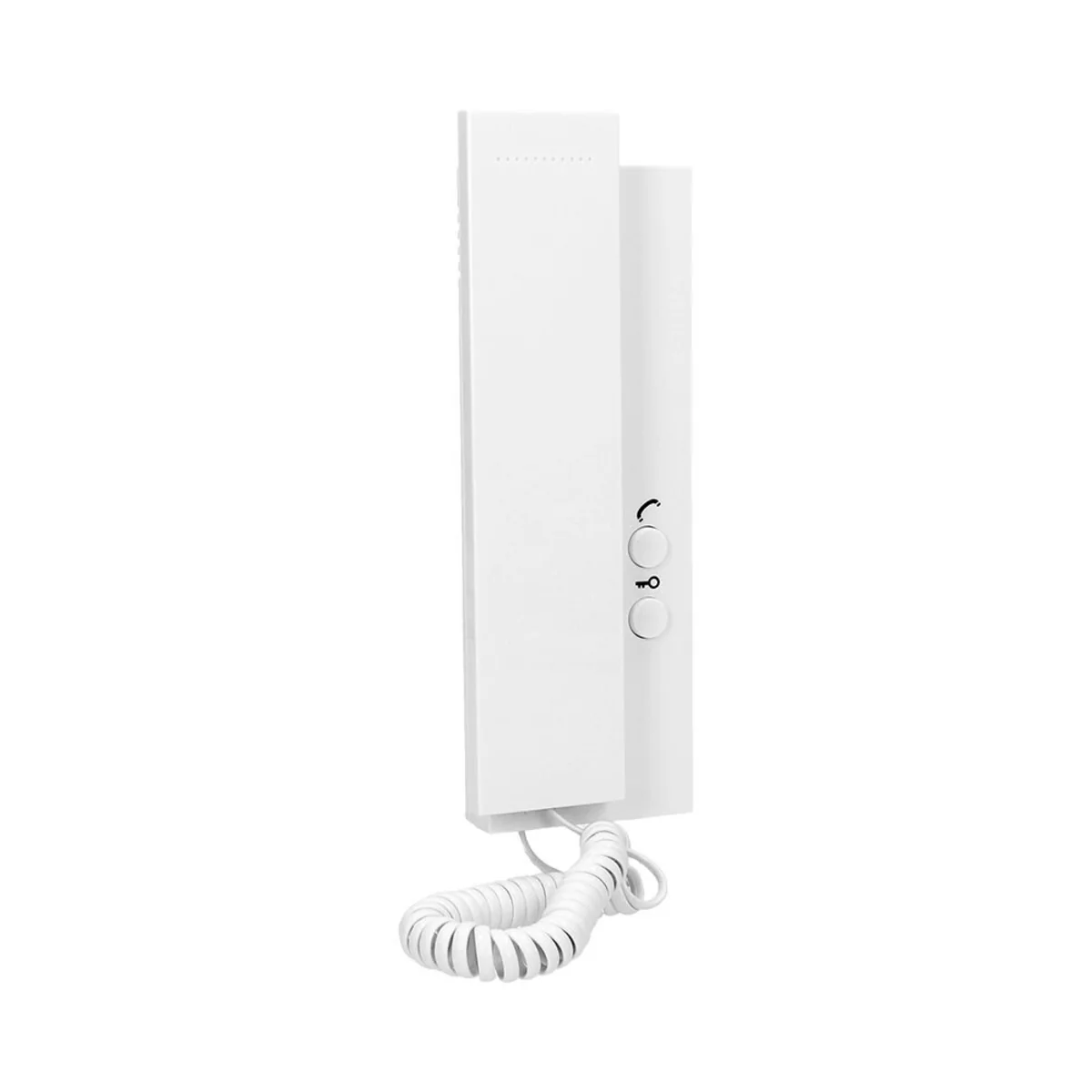

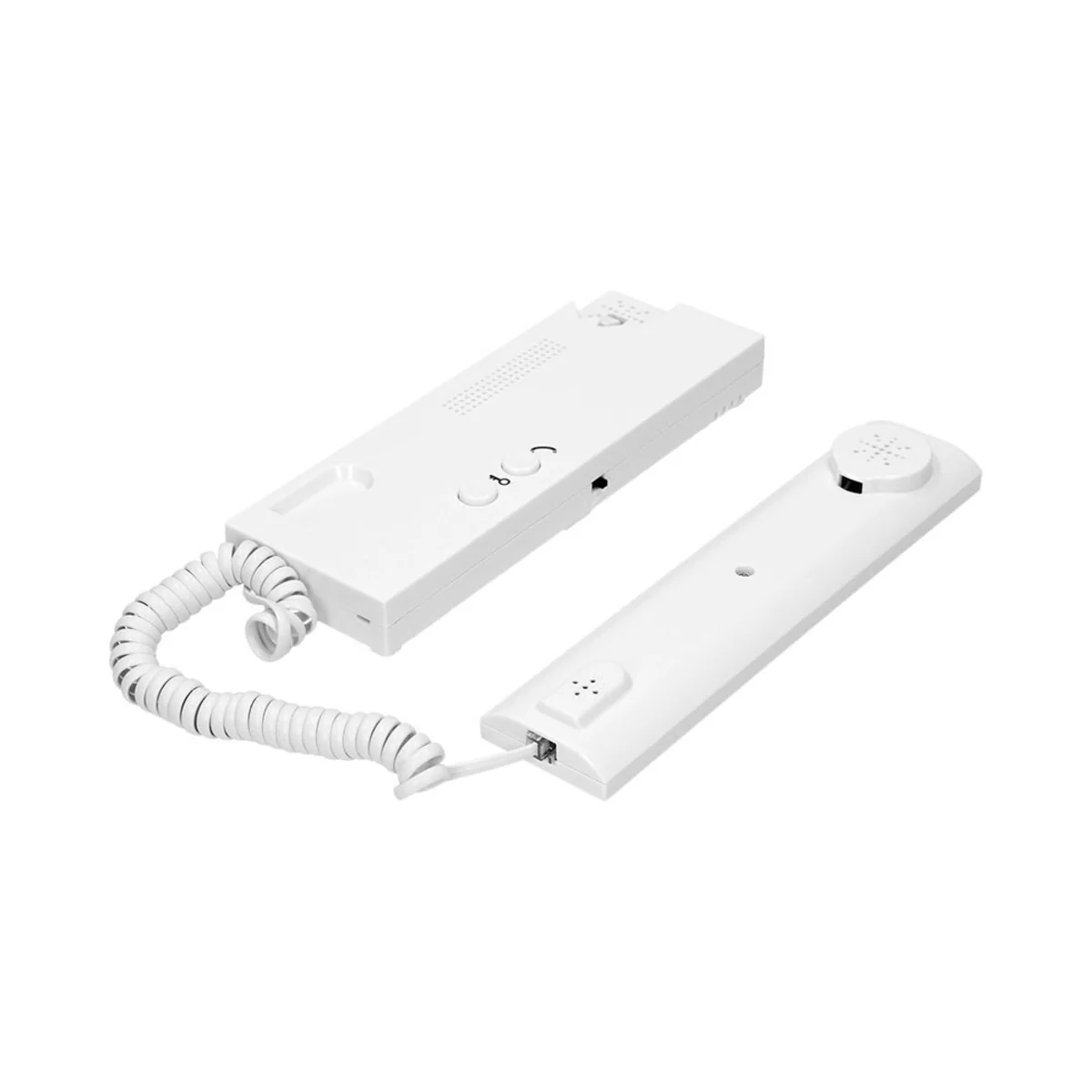

Uniphone:

• 2-wire connection
• additional gate control
• ringtone volume adjustment
• intercom function (within one subscriber) after using an additional intercom
• Dimensions: 70 x 210 x 40 mm (width/height/depth)

The SAGITTA MULTI intercom set consists of:

• external panel (cassette) - 1 pc.
• protective roof - 1 pc.
• uniphone - 2 pcs.
• power supply for DIN rail 18V DC - 1 pc.
