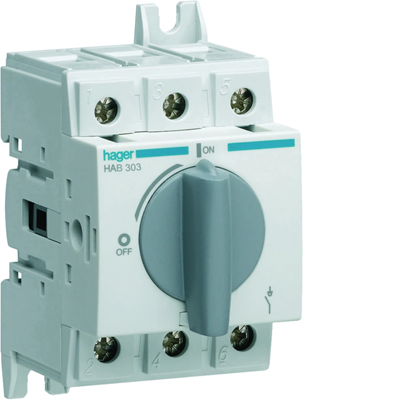

Spínač zátěže 3P 32A HAB303

Product features:

• Modular switch disconnectors, mounting on TS35 rail or on mounting plate
• Knob directly on the device, with the possibility of locking with a padlock in the off position
• Possibility of using a rotary mechanism on the cabinet door, auxiliary contacts, connection covers

Characteristics:

• Size 1, 2, 3 with visible indication of the contact status
• Size 4 with visible insulation gap
• Protection degree: IP20

Connections with terminals cage:
(data for wire)

• size 1: 1.5-16 mm2
• size 2: 2.5-35 mm2
• size 3, 4: 10-70 mm2 HIM402,
• HIM404: 1.5-16 mm2 HIM406,
• HIM408: 2.5-35 mm2

Standard: PN-EN 60947-3
