Circuit breaker ETIMAT10 3P+N 10kA B 25A 002126718

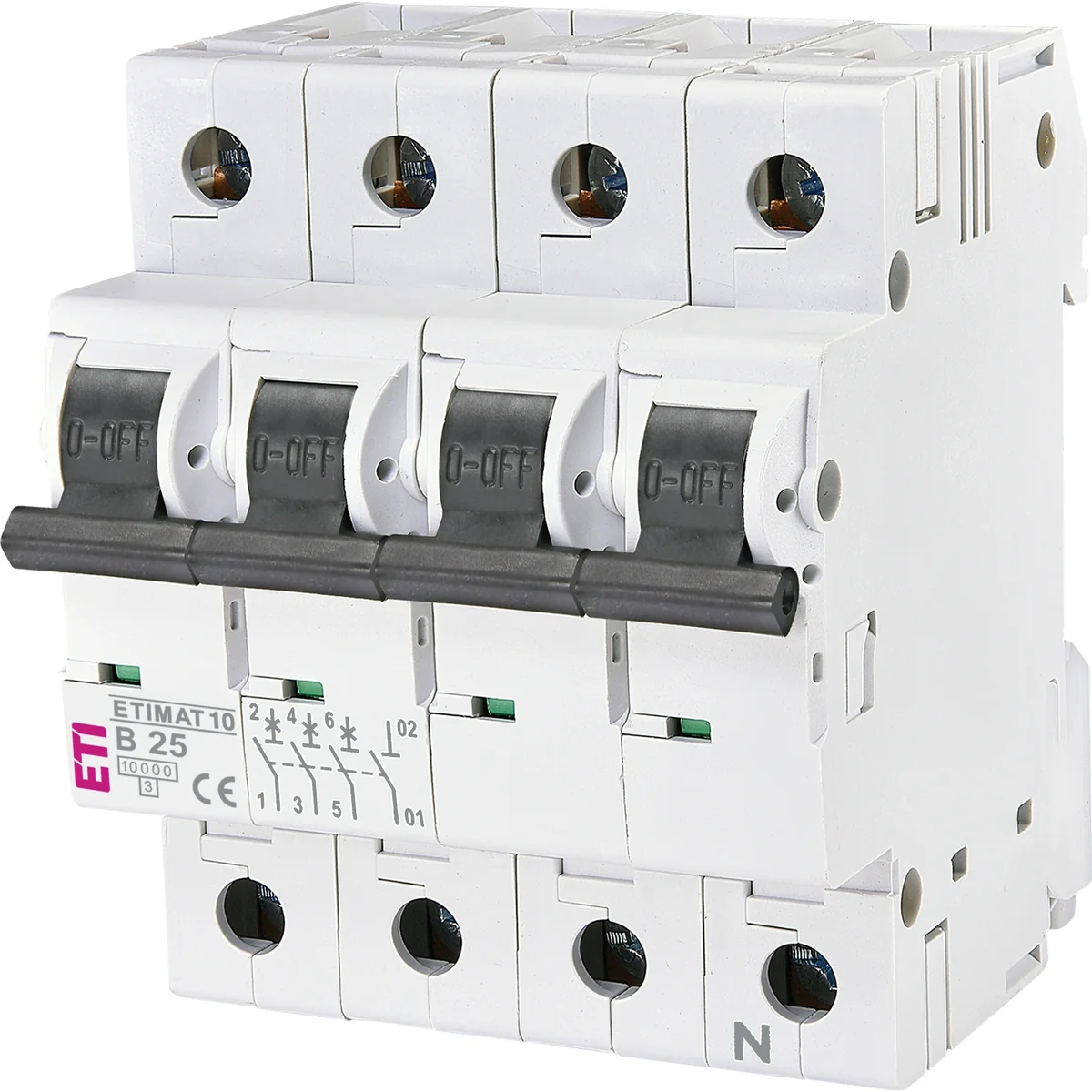

Name: Circuit breaker ETIMAT10 3P+N 10kA B 25A
Brand: ETI POLAM
SKU: ABB016ETIP
Price: 104.39 PLN

Indeks lokalny:

ABB016ETIP

Nr katalogowy:

002126718

Kod EAN:

5904722942257

Kliknij zdjęcie, aby powiększyć

Producent: ETI POLAM

Number of poles: 3

Rated current [A]: 25

Short-circuit current [kA]: 10

Zobacz cały opis

Cena:

104,39 zł

gross / szt.

(w tym VAT 23%)

227,43 zł gross/kg.

Dostawa do 3h

do 4 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Current circuit breakers are used as protection of electrical installations in residential, public and industrial facilities.

Advantages:
→ high short-circuit capacity,
→ possibility to mount auxiliary contacts,
→ meet the requirements of the main circuit breakers.

Built-in depth

68 mm
Number of poles (total)

4
Rated current

25 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Release characteristic

B
Number of protected poles

3
Rated insulation voltage Ui

500 V
Voltage type

Other
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

Yes
Pollution degree

3
Width in number of modular spacings

4
Ambient temperature during operating

-25 ... 55 °C
Connectable conductor cross section solid-core

1 ... 25 mm²
