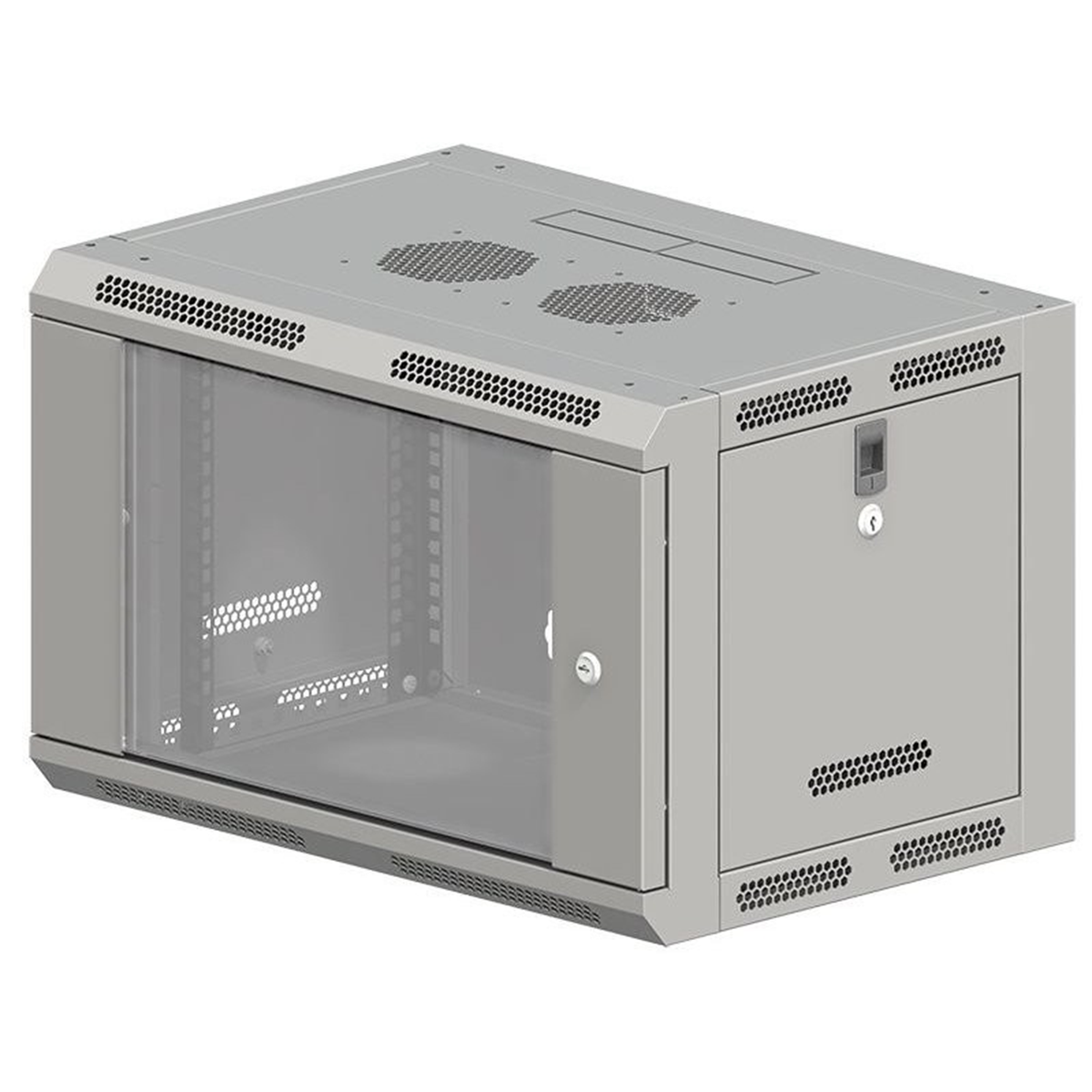

Wall/standing wardrobe 19" glass door SW-9U-600-600-N-DSJ-OP-RP-B-S

local index:
Catalog No:
EAN code:
214,08 €
gross / pcs.
including VAT 23%
up to 4 weeks (business days)
From 3,45 € (prepaid courier) Details
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
Payment methods:
Metody płatności

Product description

Wall cabinets were designed in Poland and are intended for the installation of cabling and active equipment in the size of 19". installed indoors. They can also be successfully used in CCTV or security systems. Thanks to its well-thought-out design, the cabinet is easy to assemble, for which one person equipped with a Phillips screwdriver and pliers is enough. It is mounted to the wall using four special anchors included in the set. The cabinet has four double knockout cable entries - two in the rear panel and one in the top and bottom covers. The cabinets are packed in cardboard boxes with assembly instructions, grounding cables and mounting accessories. The packaging of the wardrobe is flat, which is a great help in transport and storage. The cabinet can be installed as a standing cabinet using an additional universal adjustable plinth (SA-CU-SW-600-S).


  • 18 executions size of cabinets
  • cabinet made of steel sheet
  • safe glass in the front door ESG safety
  • removable front door (possibility of changing the opening direction)
  • < li>removable side covers with a lock
  • all cabinet doors locked with a key (patent lock)
  • possibility of installing two 120x120 mm fans in the top cover
  • protection level IP20 in accordance with the PN-EN 60529 standard
  • gray color
  • galvanized mounting rails
  • cabinets can be equipped with shelves, drawers, panels ventilation, etc.
  • at 19" spacing

Type of equipment:

  • undivided,
  • single-leaf glass door or single-leaf metal door
  • rear perforated cover,
  • movable perforated side covers,
  • grey color
  • < /ul>

Technical data

  • Depth [mm]
  • Height [mm]
  • Permissible load [kg]
  • Width [mm]
  • Height [U]
