el12 Power sources transformers Power transformers Single-phase transformer STM 250 400/230V
Single-phase transformer STM 250 400/230V
Single-phase transformer STM 250 400/230V

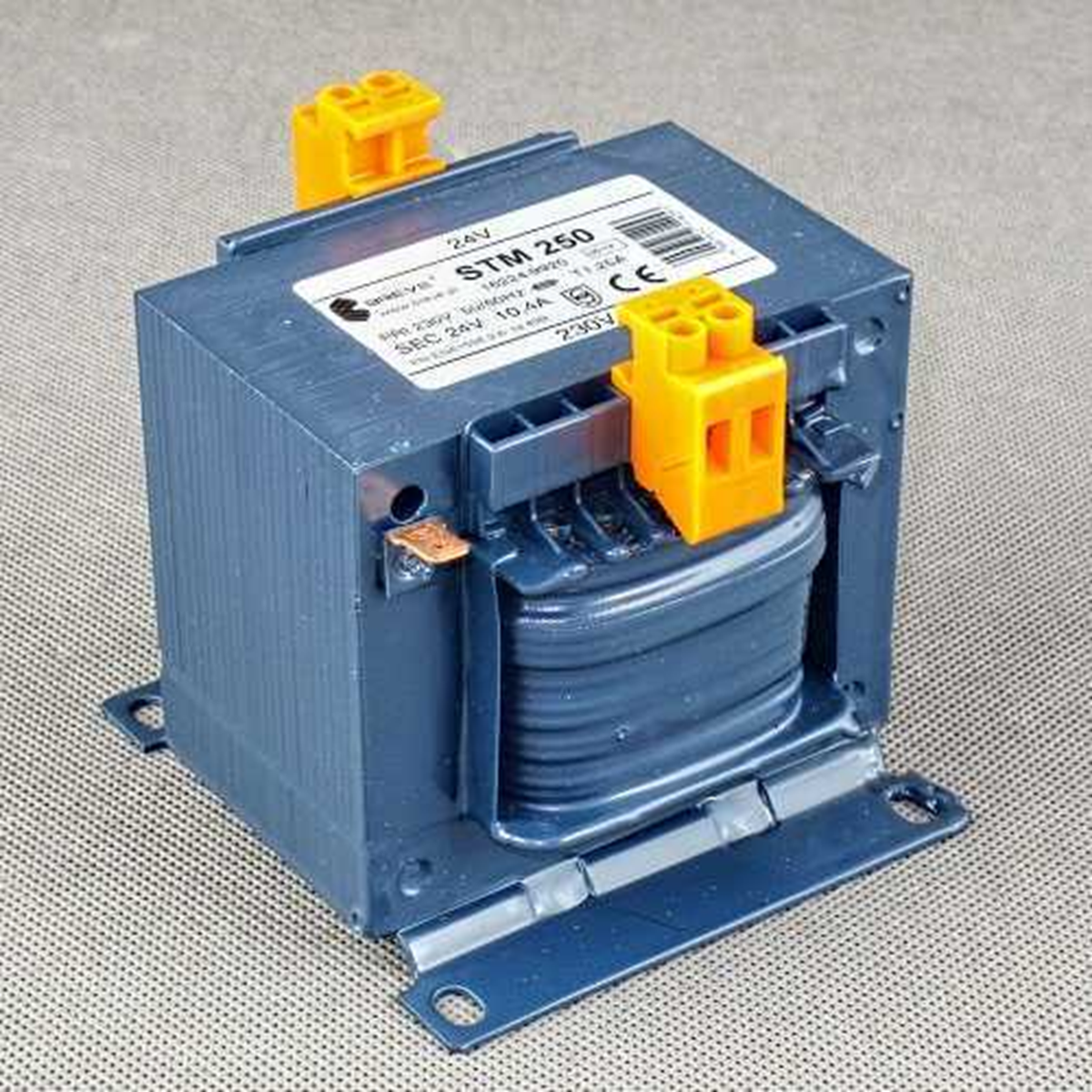

Click on the photo to enlarge

Single-phase transformer STM 250 400/230V
Single-phase transformer STM 250 400/230V
BREVE

Single-phase transformer STM 250 400/230V 16252-9911

local index:
AUN022BREV
Catalog No:
16252-9911
EAN code:
5907812714239
Price:
62,69 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Single-phase, open, safety or isolation transformers. A modern, economical design of a general purpose transformer, to be built into industrial or power installations and devices.
Made in class I insulation and IP00 protection, max. ambient temperature 40 C, insulation thermal class B (130°C).
Made in accordance with EN 61558-2-4, EN 61558-2-6.
Print the product sheet Report an error

Technical data

  • Length [mm]
    96
  • Protection class
    130
  • Power [VA]
    250
  • Secondary voltage [V]
    230
  • Level of security
    IP00
  • Height [mm]
    96
  • Secondary winding [V]
    230
  • Depth [mm]
    114
  • Maximum ambient temperature [°C]
    40
  • Primary voltage [V]
    400
  • Mounting method
    For screws
  • Width [mm]
    100
  • Primary winding [V]
    400
  • Mounting thread
    M5

Other technical data

  • Built as safety transformer
    no
  • Built as energy saving transformer
    no
  • Secondary voltage 1
    230 ... - V
  • Type of insulation material according to IEC 85
    B
  • Width
    96 mm
  • Depth
    114 mm
  • Ring core
    no
  • Modular version
    no
  • Built as isolating transformer
    yes
  • Primary voltage 1
    400 ... - V
  • Rated apparent power
    250 VA
  • Short-circuit-proof
    no
  • Height
    100 mm
  • Degree of protection (IP)
    IP00
  • Suitable for mounting on PCB
    no
