OsiSense XS Inductive sensor M18 with PNP 1NO output 12/48VDC cable 2m

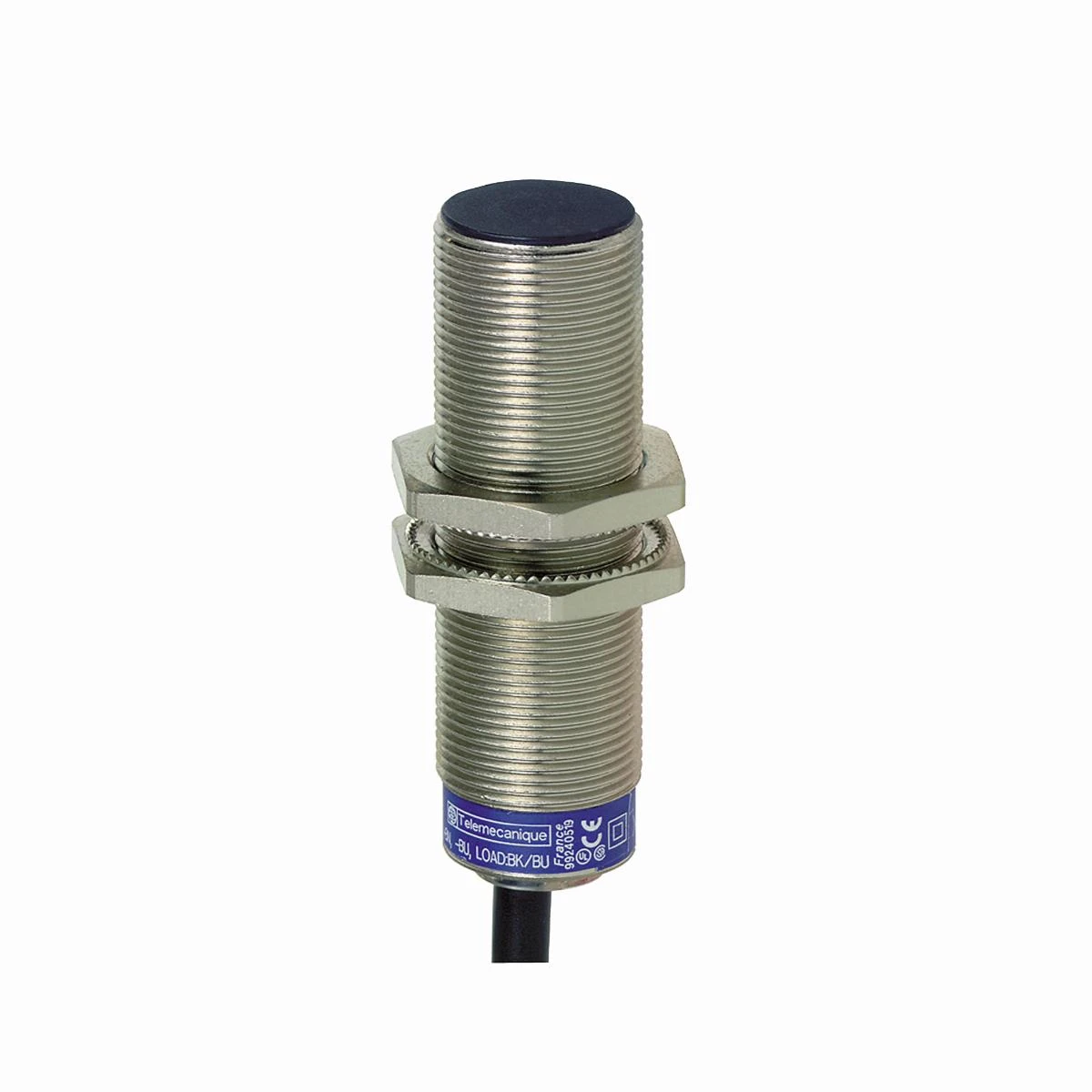

Click on the photo to enlarge

OsiSense XS Inductive sensor M18 with PNP 1NO output 12/48VDC cable 2m XS618B1PAL2

Name: OsiSense XS Inductive sensor M18 with PNP 1NO output 12/48VDC cable 2m
Brand: SCHNEIDER ELECTRIC
SKU: APK313SCHN
Price: 134.83 PLN

local index:

APK313SCHN

Catalog No:

XS618B1PAL2

EAN code:

3389110146349

Price:

134,83 €

gross / pcs.

including VAT 23%

Availability:

Lack

Delivery:

From 3,70 € (prepaid courier) Details

Quantity:

Goods at a promotional price can only be purchased in the quantity available in stock

pcs.

Delivery methods:

details

Payment methods:

details

Go to section:

Product description Technical data

Product description

OsiSense XS Inductive sensor M18 with PNP 1NO output 12/48VDC cable 2m

Report an error

Technical data

Type of voltage

DC

Range [mm]

8

Other technical data

Length of sensor

60 mm
Mechanical mounting condition for sensor

Concise
Suitable for safety functions

no
Type of switching output

PNP/PNP
Number of semiconductor outputs with signalling function

1
Number of protected semiconductor outputs

1
Type of actuation

Metallic Target
Type of interface for safety communication

None
Coating housing

Nickel-plated
SIL according to IEC 61508

None
Max. output current at protected output

200 mA
Rated control supply voltage DC

12 ... 48 V
Switching frequency

1000 Hz
Housing material

Metal
Explosion safety category for gas

None
Interference resistance to magnetic fields

Immune against magnetic DC-field

Diameter sensor

18 mm
Switching distance

8 mm
Type of switch function

Normally open contact
Type of electric connection

Cable radial
Number of contact energized outputs with signalling function

0
Number of protected contact energized outputs

0
Type of interface

None
Construction type housing

Cylinder, screw-thread
Cascadable

no
Performance level according to EN ISO 13849-1

None
Supply voltage

12 ... 48 V
Voltage type

AC/DC
With monitoring function downstream switching devices

no
Compression-resistant

no
Explosion safety category for dust

None
