el12 Lighting Light fixtures Outdoor luminaires wall OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray

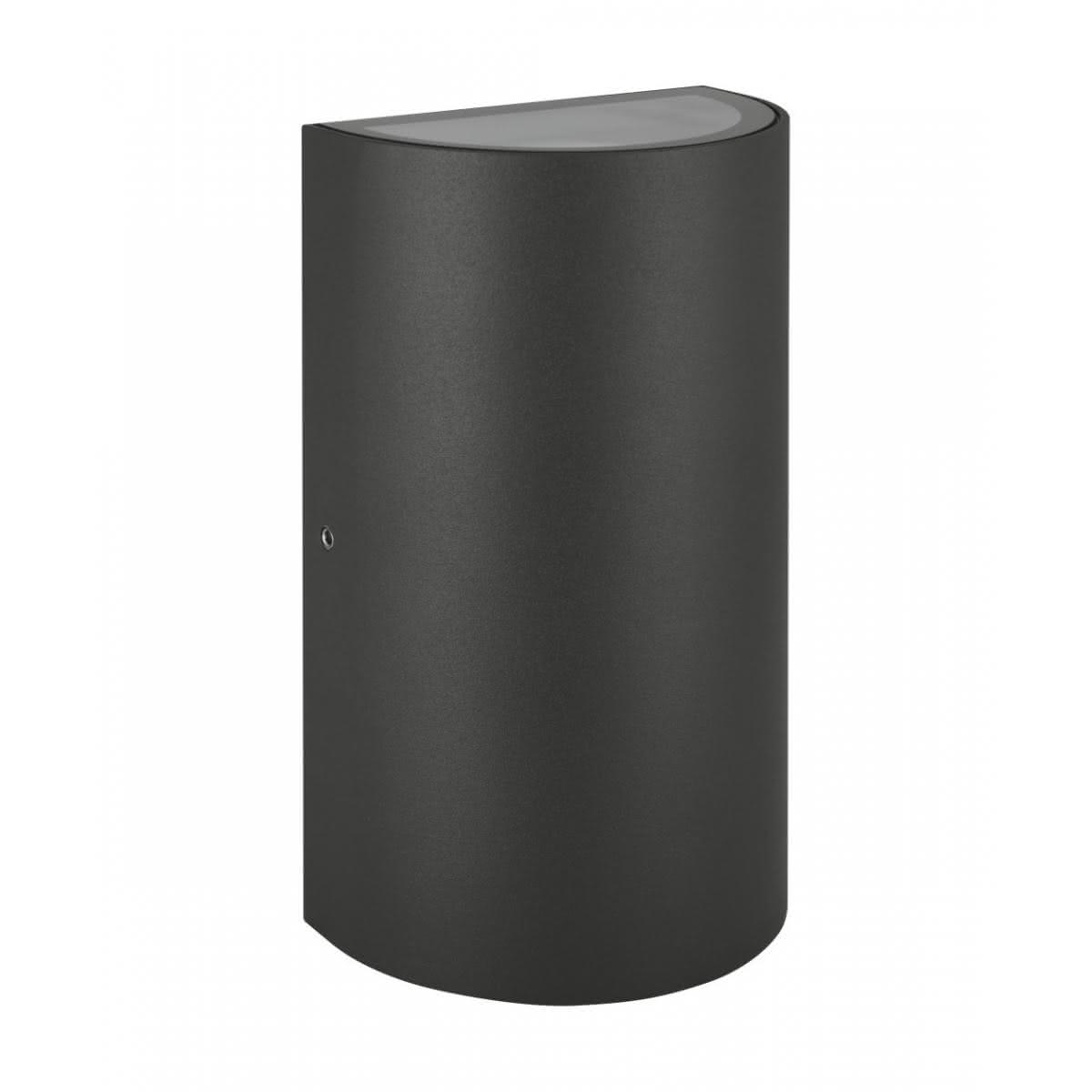

OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray

Click on the photo to enlarge

OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray
LEDVANCE

OUTDOOR FACADE UPDOWN LED luminaire 230V 12W 700lm IP54 n/t WW gray 4058075075054

local index:
OZF016LEDV
Catalog No:
4058075075054
EAN code:
4058075075054
Price:
50,82 €
gross / pcs.
including VAT 23%
Availability:
Lack
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

A luminaire with a classic shape, from the OUTDOOR FACADE UPDOWN series.

Area of application:

  • Building facades,
  • Decorative lighting.

Product benefits:

  • Energy efficient thanks to LED technology,
  • Easy and quick installation,
  • Uniform light distribution.

Product features:

  • Bright and functional outdoor LED luminaires,
  • Die-cast aluminum housing.
Print the product sheet Report an error

Technical data

  • Light color [K]
    2000-3500 (warm)
  • beam angle [°]
    280
  • Color
    Gray
  • Installation
    Surface-mounted
  • Rated current [A]
    0.055
  • Luminous efficiency [lm/W]
    60
  • luminous flux [lm]
    700
  • Height [mm]
    160
  • cri (ra)
    >80
  • Lampshade material
    Glass
  • Length [mm]
    55
  • Protection class
    AND
  • Power [W]
    12
  • Rated voltage [V]
    230
  • Family
    OUTDOOR FACADE UPDOWN
  • Level of security
    IP54
  • Width [mm]
    90
  • Color Temperature [K]
    3000
  • Lifetime (number of on/off)
    15000

Other technical data

  • Suitable for wall mounting
    yes
  • Suitable for ceiling mounting
    no
  • Suitable for surface mounting
    yes
  • Suitable for workplace according to EN 12464-1
    no
  • With light source
    yes
  • Housing colour
    Grey
  • Type of grid
    Other
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    no
  • Dimming DALI
    no
  • Dimming DSI
    no
  • Ściemniacz GPRS
    no
  • Dimming manufacturer's proprietary system
    no
  • Dimming phase cut-off
    no
  • Dimming programmable
    no
  • Dimming Sine Wave Reduction
    no
  • Dimming Zigbee
    no
  • Ściemniacz zależny od statecznika
    no
  • Light distributor
    Reflector
  • Light outlet
    Direct/indirect
  • Żywotność znamionowa L70/B10 przy 25 °C
    30000 h
  • Degree of protection (IP)
    IP54
  • Protection class
    I
  • With movement sensor
    no
  • Covering of the luminaire with thermally insulating material possible
    no
  • Max. system power
    12.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Power factor
    0.5
  • Height/depth
    160.0 mm
  • Type of wiring
    Ending
  • Connection type
    Other
  • Suitable for suspended mounting
    no
  • Suitable for built-in mounting
    no
  • Suitable for light line configuration
    no
  • Lamp type
    LED not exchangeable
  • Housing material
    Aluminium
  • Material cover
    Glass transparent
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    55 ... 55 mA
  • With control gear
    yes
  • Dimming 1-10 V
    no
  • Dimming DMX
    no
  • Dimming potentiometer (integrated)
    no
  • Dimming LineSwitch
    no
  • Dimming mains voltage modulation
    no
  • Dimming phase cut-on
    no
  • Dimming RF
    no
  • Dimming Touch and Dim
    no
  • Dimming with push-button
    no
  • No dim function
    yes
  • Light sharing
    Symmetric
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    30000 h
  • Impact strength
    IK06
  • Suitable for emergency lighting
    no
  • With light sensor
    no
  • With air slots
    no
  • Rated luminous flux according to IEC 62722-2-1
    700 lm
  • Colour temperature
    3000 ... 3000 K
  • Luminaire efficacy
    60 lm/W
  • Width
    90.0 mm
  • Length
    55.0 mm
  • Number of poles
    3

Catalog cards, diagrams, certificates

4058075075061_O_FACADE_UPDOWN_12_W_3000_K_IP54_GY_pl.pdf
