LEGRAND

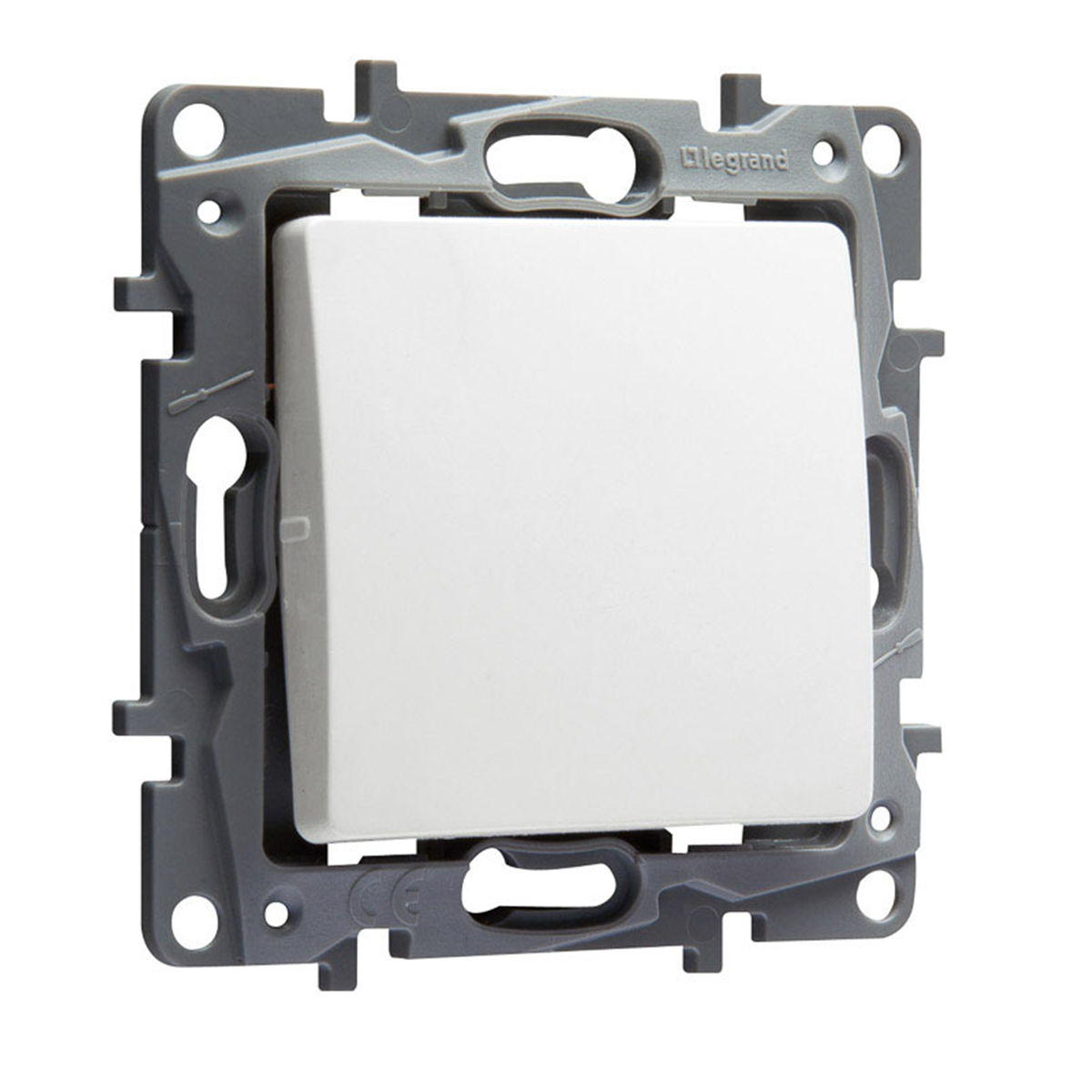

White cross connector 764504

Name: White cross connector
Brand: LEGRAND
SKU: MMK019LEGR
Price: 7.52 PLN

local index:

MMK019LEGR

Catalog No:

764504

EAN code:

3414970682376

Price:

7,52 €

gross / pcs.

including VAT 23%

Availability:

up to 2 weeks (business days)

Delivery:

From 3,49 € (prepaid courier) Details

Quantity:

Goods at a promotional price can only be purchased in the quantity available in stock

pcs.

Delivery methods:

details

Payment methods:

details

Go to section:

Product description Technical data

Product description

Cross connectorfrom the Niloe/Niloe Selection series, from Legrand. The product catalog number is 764504.

FEATURES

Mechanism with a key, claws and a mounting bracket.
To be equipped with a frame.
Automatic clamps.

SERIES DESCRIPTION

Niloe is a traditional series of electrical installation accessories. The cross connector characterizes the features of this unique series.

Report an error

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated current [A]

10
Family

NILOE
Width [mm]

76
Height [mm]

76
Backlight

NO
For the frame system

Yes
Exact material

ABS

Depth [mm]

45.5
Color

White
Material

Plastic
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Type

Flush-mounted
Degree of mechanical protection

IK04
Terminal type

Threadless
Protrusion depth [mm]

14.5

Other technical data

Wiring system

Intermediate switch
Assembly arrangement

Basic element
Number of rockers

1
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

yes
Surface finishing

Glossy
RAL-number (similar)

9003
Illumination

No
Type of lighting

Other
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Other
Device width

75.8 mm
Device depth

45.5 mm
Min. depth of built-in installation box

30 mm

Method of operation

Rocker/button
Push button switch

no
Mounting method

Flush-mounted
With mounting plate

yes
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Kremowy
Label space/information surface

No
Function lighting

Other
Suitable for degree of protection (IP)

IP20
Rated current

10 A
Feedback-signal contact

no
Washing machine switch

no
Device height

75.8 mm
Built-in depth

31 mm
