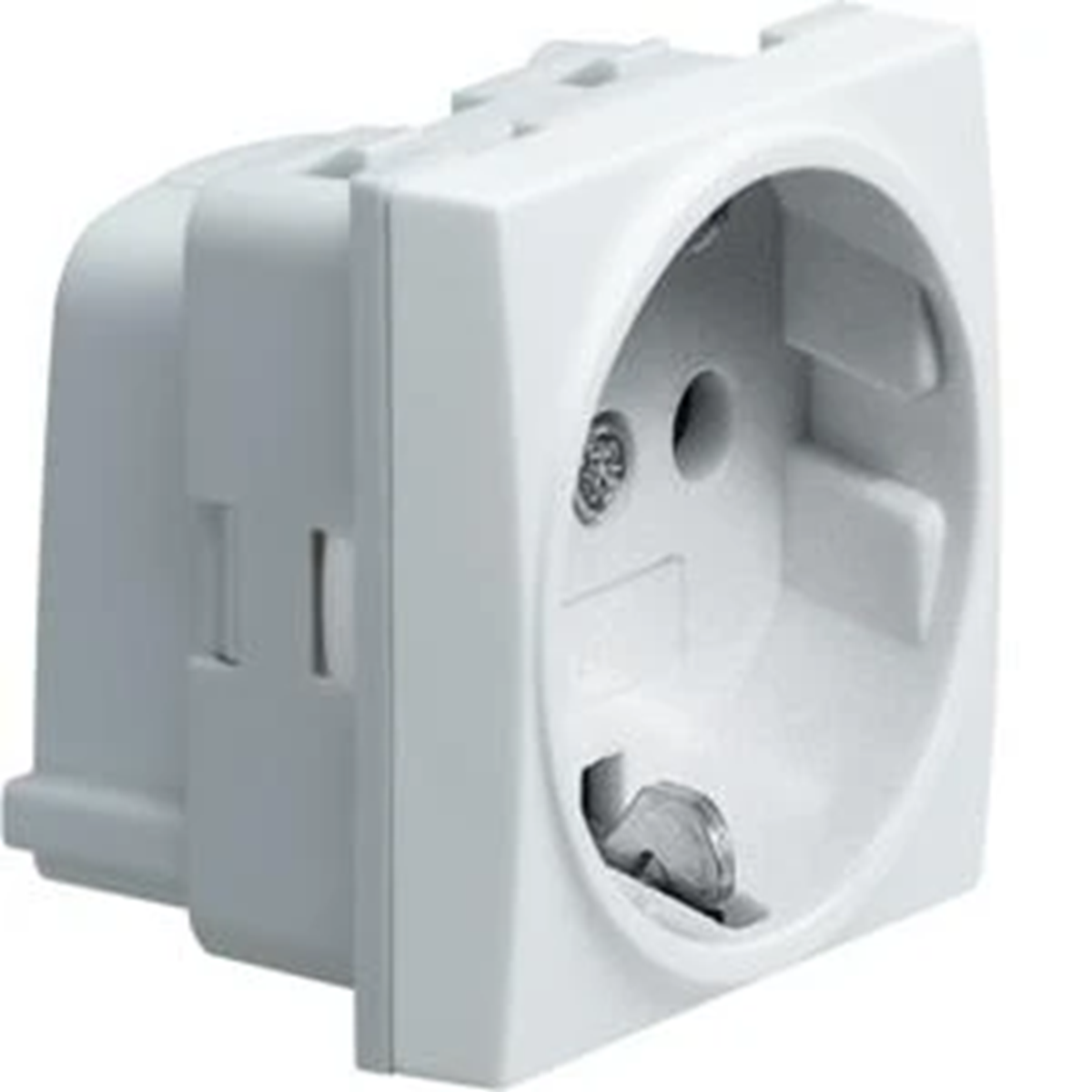

SYSTO SCHUKO socket 16A white screw terminals

Click on the photo to enlarge

TEHALIT

SYSTO SCHUKO socket 16A white screw terminals WS161

Name: SYSTO SCHUKO socket 16A white screw terminals
Brand: TEHALIT
SKU: MGE090TEHA
Price: 8.50 PLN

local index:

MGE090TEHA

Catalog No:

WS161

EAN code:

3250617081610

Price:

8,50 €

gross / pcs.

including VAT 23%

Availability:

up to 10 weeks (business days)

Delivery:

From 3,47 € (prepaid courier) Details

Quantity:

Goods at a promotional price can only be purchased in the quantity available in stock

pcs.

Delivery methods:

details

Payment methods:

details

Go to section:

Product description Technical data

Product description

Electric socket of the systo series. The product part number is WS161.

FEATURES

With ground SCHUKO.
With shutters.< /li>
Screw terminals.
2 modules.
Color white.
Rated current 16A.
Rated voltage 230V.
Phase branch: L1.

SERIES DESCRIPTION

systo is a series of electro-installation equipment that can be used in a ró various installations: floor boxes, columns or ducts. The Electrical socket characterizes the features of this unique series.

Report an error

Technical data

Depth [mm]

40
Number of modules

2
Shape

Square
Rated voltage [V]

230
Type

Electric
Level of security

IP27
Type

45x45
Height [mm]

45
Terminal type

Threaded
Shutters of current paths

Yes
For the frame system

Yes

Number of sockets

1
Color

White
Material

Plastic
Rated current [A]

16
Family

SYSTEM
Width [mm]

45
Ground

schuko
Backlight

NO
Standard

European
On the DATA key

NO

Other technical data

Model

Protective contact CEE 7/3 / CEE 7/4 (type F)
Okrągły styk ochronny

no
Number of active contacts (flat)

2
With built-in USB power supply

no
Number of socket outlets switchable

0
With hinged lid

no
Label space/information surface

no
RAL-number (similar)

9010
Lockable

no
Insulated mounting

yes
With orientation lighting

no
With miniature fuse

no
Type of fastening

Mounting with screw
Material quality

Other
Surface finishing

Matt
With on/off switch

no
Rotated central insert

no
Nominal voltage

250 V
Rated fault current

0 mA
Impact strength

IK07
Device height

40 mm
Min. depth of built-in installation box

40 mm

Protective contact

yes
Number of active contacts (round)

0
With signal lamp

no
Number of modules (module system)

2
Connection type

Screwed terminal
With enhanced contact protection

no
Colour

White
Transparent

no
Eject-mechanism

no
With function lighting

no
Over voltage protection

no
Mounting method

Other
Material

Plastic
Surface protection

Lacquered
Anti-bacterial treatment

no
With loop through function

no
Nominal current

16 A
Frequency

50 ... 60 Hz
Suitable for degree of protection (IP)

IP2X
Device width

45 mm
Device depth

22.8 mm
