el12 Electrical equipment Sockets System sockets 45x45, CIMA, SIMON 500, Mosaic SYSTO IT socket RJ45 category 6 STP 2 white modules
el12 Electrical equipment Sockets Internet sockets SYSTO IT socket RJ45 category 6 STP 2 white modules

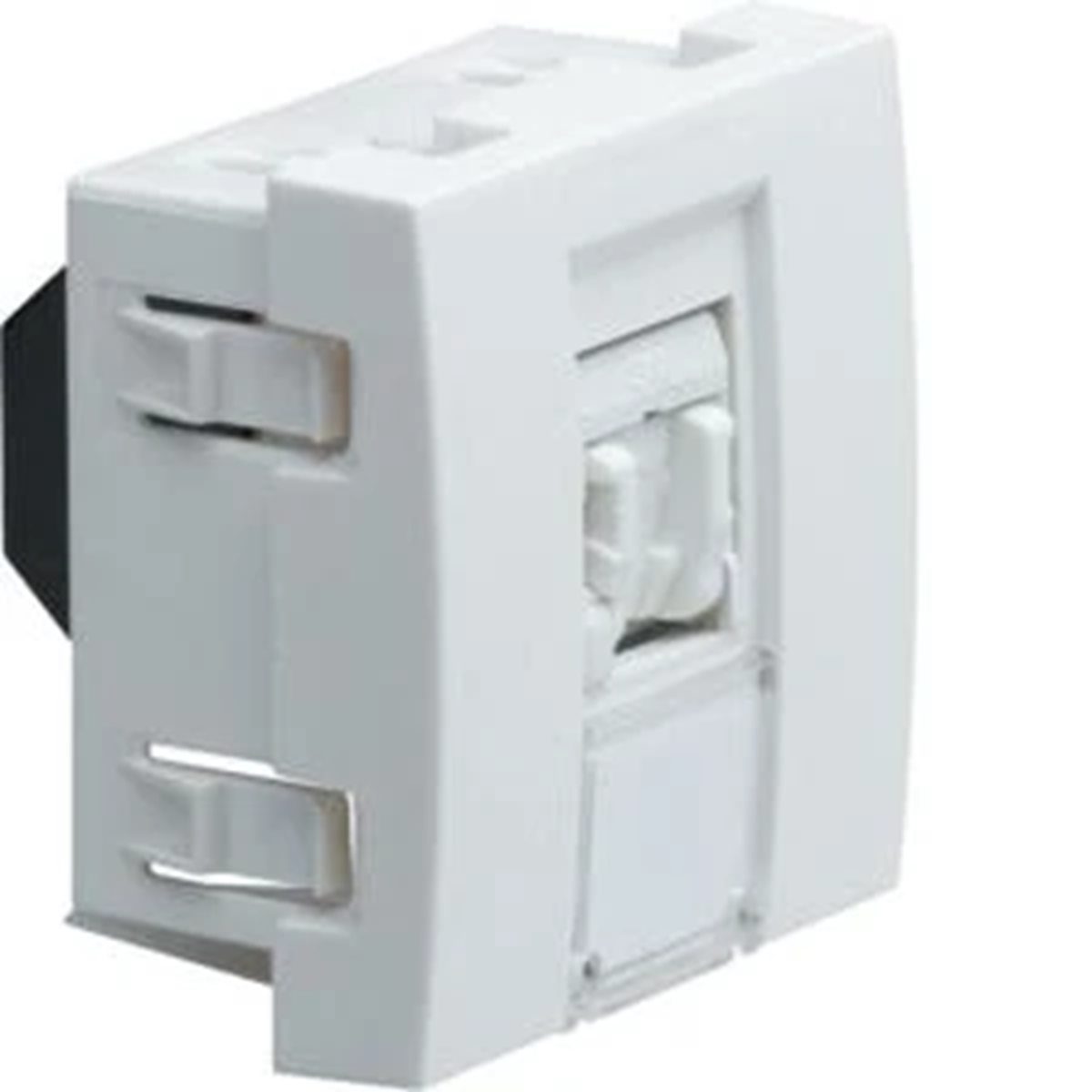

SYSTO IT socket RJ45 category 6 STP 2 white modules

Click on the photo to enlarge

SYSTO IT socket RJ45 category 6 STP 2 white modules
TEHALIT

SYSTO IT socket RJ45 category 6 STP 2 white modules WS226

local index:
MGI031TEHA
Catalog No:
WS226
EAN code:
3250617082266
Price:
28,17 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Internet socket of the systo series. The product part number is WS226.



FEATURES

  • 1 x RJ45.
  • Category 6
  • STP .
  • 2 modules.
  • With labeling field.
  • Clamp connection.



SERIES DESCRIPTION

systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or channels. Internet socket is characterized by the features of this unique series.

Print the product sheet Report an error

Technical data

  • Number of modules
    2
  • Color
    White
  • Material
    Plastic
  • Type
    Internet
  • Level of security
    IP20
  • Type
    45x45
  • Version
    STP
  • Degree of mechanical protection
    IK07
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Exact material
    PC
  • Category
    6
  • Shape
    Square
  • Descriptive field
    Yes
  • Family
    SYSTEM
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    45
  • Surface finish
    Matt satin
  • For the frame system
    Yes
  • Dust cover
    Yes

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    no
  • With hinged lid
    no
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Type of fastening
    Clamp mounting
  • Suitable for number of connectors
    1
  • Shielded buses
    no
  • Luster terminal
    no
  • Device width
    45 mm
  • Device depth
    38.5 mm
  • Utilization
    UAE/IAE (ISDN)
  • With dust cover
    yes
  • Outlet direction
    Straight
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    White
  • Transparent
    no
  • Number of modules (module system)
    2
  • With strain relief
    no
  • Shielded housing
    yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm
