MERTEN

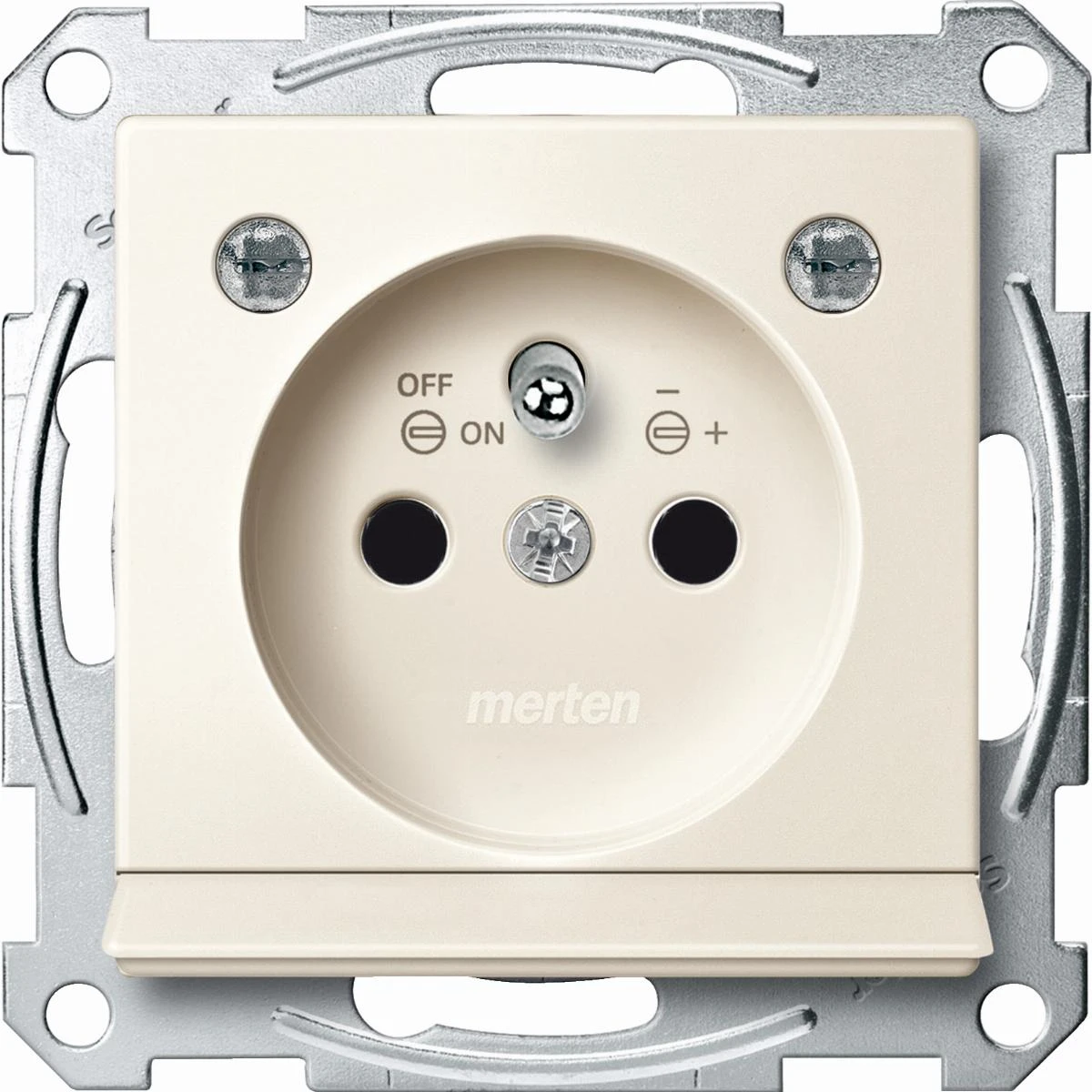

SYSTEM M Earthed plug-in socket with LED backlight and shutters cream screwless terminals MTN2504-0344

local index:
MEE046MERT
Catalog No:
MTN2504-0344
EAN code:
3606480308826
Price:
81,70 €
gross / pcs.
including VAT 23%
Availability:
Lack
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Socket with grounding, with shutters for current paths, with LED backlight.



SERIES DESCRIPTION

Exclusive Merten System M electrical installation equipment is design, technology and intelligence integrated in one system. The accessories are available in various colors, materials and versions

The exclusive Merten System M wiring accessories is structured flexibility with over 150 functions. In this series you will find not only switches and electrical sockets, but also systems for controlling lighting, blinds and temperature. Infinite combination possibilities are given by dividing the series into mechanisms and keys matching 6 different series of frames. Thanks to this, you only need to change the frame to completely change the interior of your apartment, house or office!

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Pliers Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Accurate color
    Creamy
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SYSTEM M
  • Type
    Flush-mounted
  • Surface finish
    Shiny
  • Backlight
    Yes
  • Shutters of current paths
    Yes
  • For the frame system
    Yes

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of socket outlets switchable
    0
  • Imprint/indication
    Other
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    1013
  • Lockable
    no
  • Insulated mounting
    yes
  • With orientation lighting
    yes
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    yes
  • Nominal current
    16 A
  • Frequency
    50 ... 50 Hz
  • Impact strength
    IK01
  • Device height
    73 mm
  • Min. depth of built-in installation box
    46 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    1
  • With signal lamp
    yes
  • Number of units
    1
  • Number of phases
    1
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    yes
  • Colour
    White
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    73 mm
  • Device depth
    39 mm
