SEDNA SCHUKO socket with shutters graphite

Click on the photo to enlarge

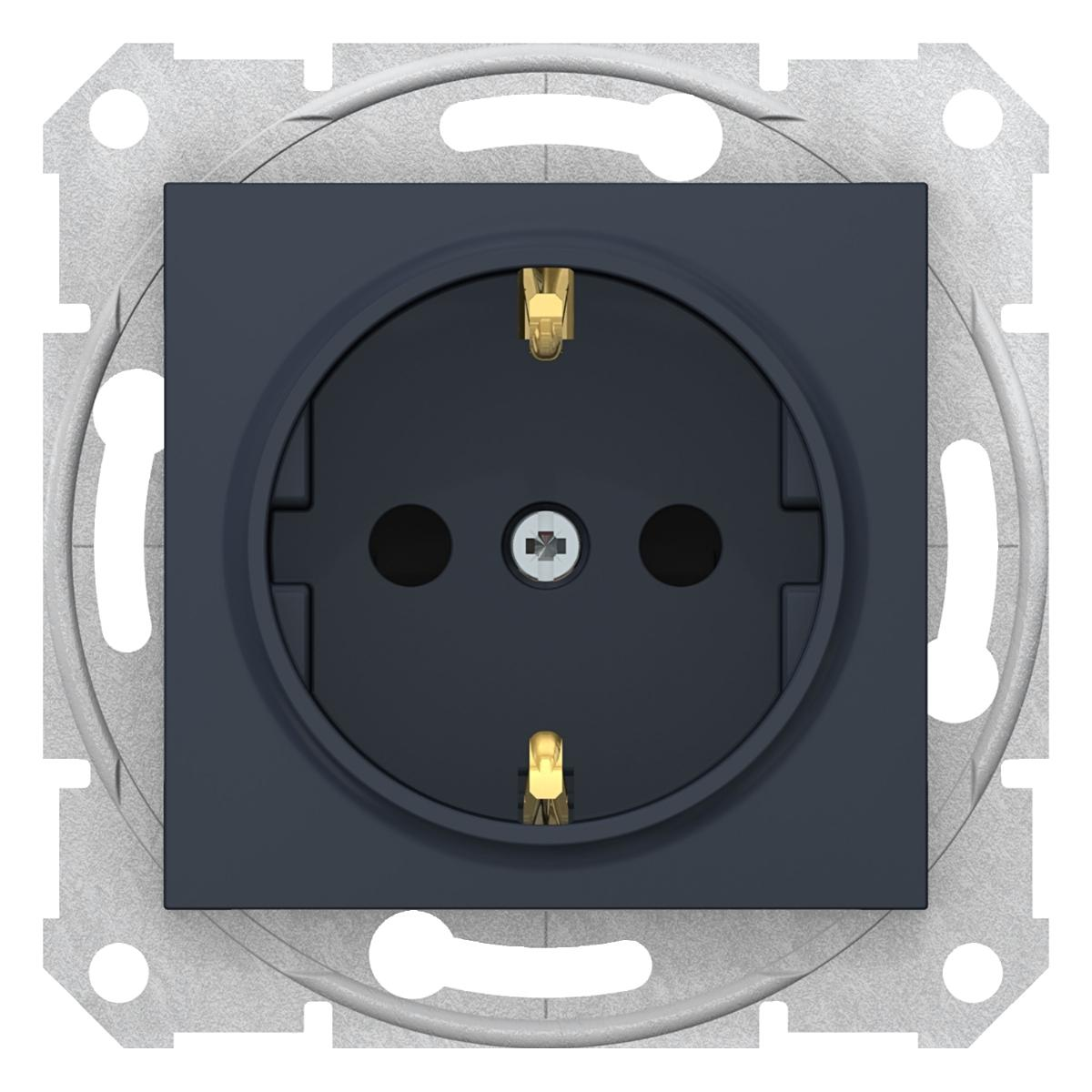

SEDNA SCHUKO socket with shutters graphite
SCHNEIDER ELECTRIC

SEDNA SCHUKO socket with shutters graphite SDN3001770

local index:
MEE111SCHN
Catalog No:
SDN3001770
EAN code:
3606480995798
Price:
15,22 €
gross / pcs.
including VAT 23%
Availability:
Lack
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Electric socket from the Sedna series, from the manufacturer Schneider Electric. The product part number is SDN3001770.



FEATURES

  • Single.
  • < strong>With schuko earthing.
  • With shutters for current paths.
  • Module without frame.< /li>
  • Screwless terminals.
  • Color graphite.
  • Rated current 16A .
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting flush< /strong>.
  • Dimensions: 71 x 71 mm (height x width).
  • Strip length: 13 mm.
  • Material  PC.



SEDNA ELECTRICAL SOCKET FEATURES

  • Terminals placed in one line, thanks to so the wires can be cut to the same length in one go.
  • All terminals are accessible from the front by removing the center plate. No element will fall out even when the clamp is fully unscrewed.
  • Compact housing for safety.
  • Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with notches to facilitate positioning.



SERIES DESCRIPTION

The Sedna series is an ideal choice for both for lovers of modernity and classics. Thin frames, delicate lines and a unique flat design allow you to enclose modernity in a simple, elegant form. Sedna is a full range of high-quality connectors and sockets with a distinctive shape and unique flat design, only 8 mm thick.< /p>

Print the product sheet Report an error

Technical data

  • Depth [mm]
    41.3
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SEAT
  • Width [mm]
    71
  • Ground
    schuko
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Protrusion depth [mm]
    10
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Terminal type
    Threadless
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Exact material
    PC

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    no
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    no
  • Label space/information surface
    no
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    no
  • Surface finishing
    Matt
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    40.0 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    0
  • With signal lamp
    no
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Other
  • With enhanced contact protection
    no
  • Colour
    Other
  • Lockable
    no
  • Insulated mounting
    no
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    50 ... 50 Hz
  • Device width
    71 mm
  • Device depth
    41.3 mm
