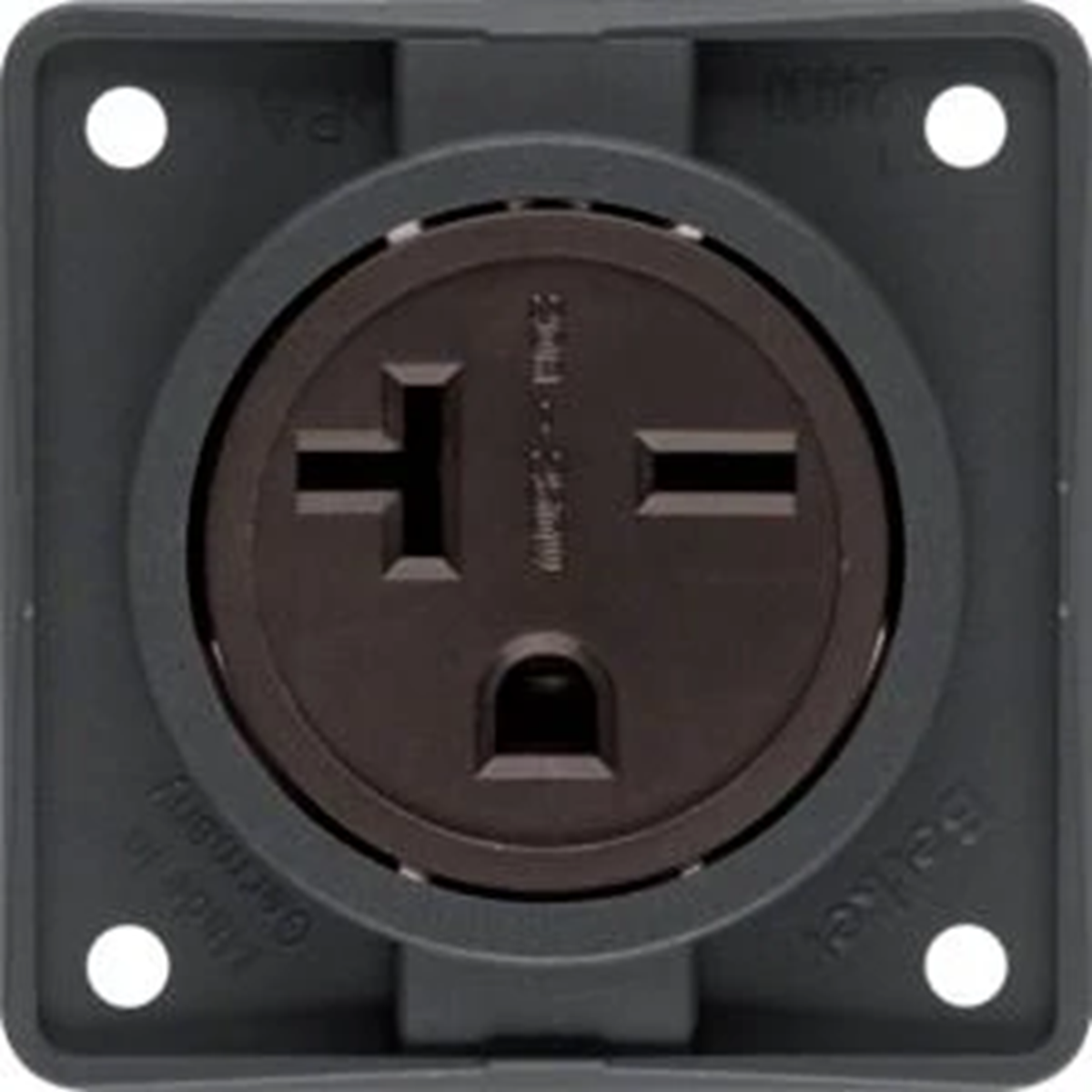

INTEGRO FLOW Earthed socket "USA/CANADA" NEMA 6-20R anthracite matt

Click on the photo to enlarge

INTEGRO FLOW Earthed socket "USA/CANADA" NEMA 6-20R anthracite matt
BERKER

INTEGRO FLOW Earthed socket "USA/CANADA" NEMA 6-20R anthracite matt 862542505

local index:
MEE194BERK
Catalog No:
862542505
EAN code:
4011334351054
Price:
118,44 €
gross / pcs.
including VAT 23%
Availability:
Lack
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Earthed socket, USA/CANADA standard, NEMA 6-20 R standard, Integro Flow series.

Print the product sheet Report an error

Technical data

  • Number of sockets
    1
  • Shape
    Round
  • Fixing
    screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Accurate color
    Anthracite
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    20
  • Family
    INTEGRA FLOW
  • Type
    Flush-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    American Canadian
  • On the DATA key
    NO
  • Exact material
    Thermoplastic

Other technical data

  • Model
    NEMA
  • Number of active contacts (round)
    0
  • With signal lamp
    no
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    7021
  • Lockable
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Built-in installation
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    20 A
  • Frequency
    50 ... 50 Hz
  • Device width
    55.5 mm
  • Device depth
    28 mm
  • Protective contact
    yes
  • Number of active contacts (flat)
    2
  • With built-in USB power supply
    no
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    no
  • Colour
    Anthracite
  • Transparent
    no
  • Eject-mechanism
    no
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Halogen free
    yes
  • Surface finishing
    Matt
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    55.5 mm
