el12 Electrical apparatus fuses Circuit breakers with "C" characteristic Circuit breaker, PLHT-C125/4

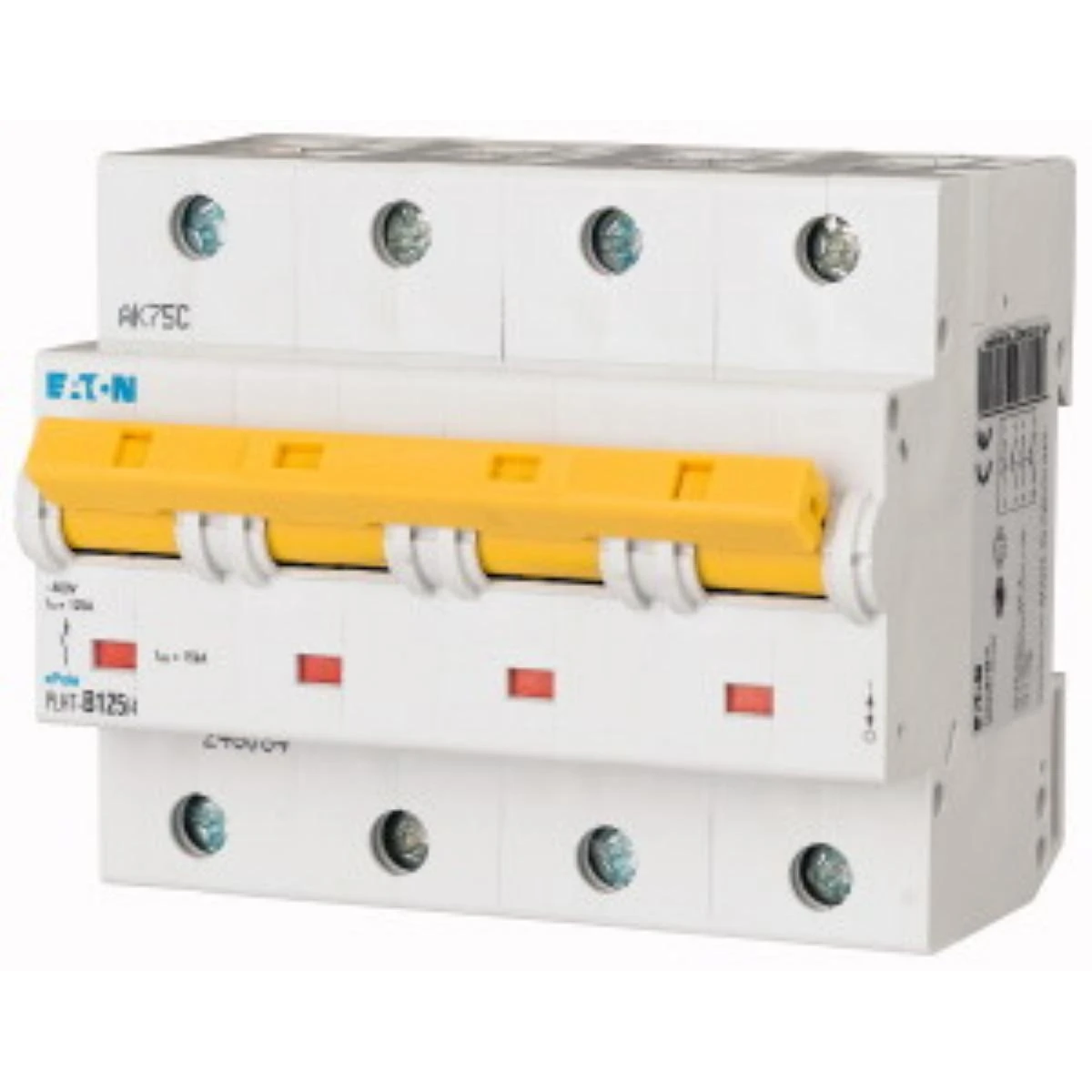

Circuit breaker, PLHT-C125/4

Click on the photo to enlarge

Circuit breaker, PLHT-C125/4
EATON

Circuit breaker, PLHT-C125/4 248093

local index:
ABC076MOEL
Catalog No:
248093
EAN code:
4015082480936
Price:
309,58 €
gross / pcs.
including VAT 23%
Availability:
Lack
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

PLHT circuit breaker. Characteristics C.

Print the product sheet Report an error

Technical data

  • Number of poles
    4
  • Rated current [A]
    125

Other technical data

  • Release characteristic
    C
  • Number of protected poles
    4
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    yes
  • Pollution degree
    2
  • Width in number of modular spacings
    6
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    2.5 ... 50 mm²
  • Number of poles (total)
    4
  • Rated current
    125 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    yes
  • Built-in depth
    75 mm
  • Ambient temperature during operating
    -25 ... 55 °C
  • Connectable conductor cross section solid-core
    2.5 ... 50 mm²
