Circuit breaker 1-pole G61 B32 1P 32A 6kA 674699

Name: Circuit breaker 1-pole G61 B32 1P 32A 6kA
Brand: ABB
SKU: ABB058ABBQ
Price: 3.63 PLN
Availability: InStock

Lokaler Index:

ABB058ABBQ

Katalognummer:

674699

EAN-Code:

5413656746997

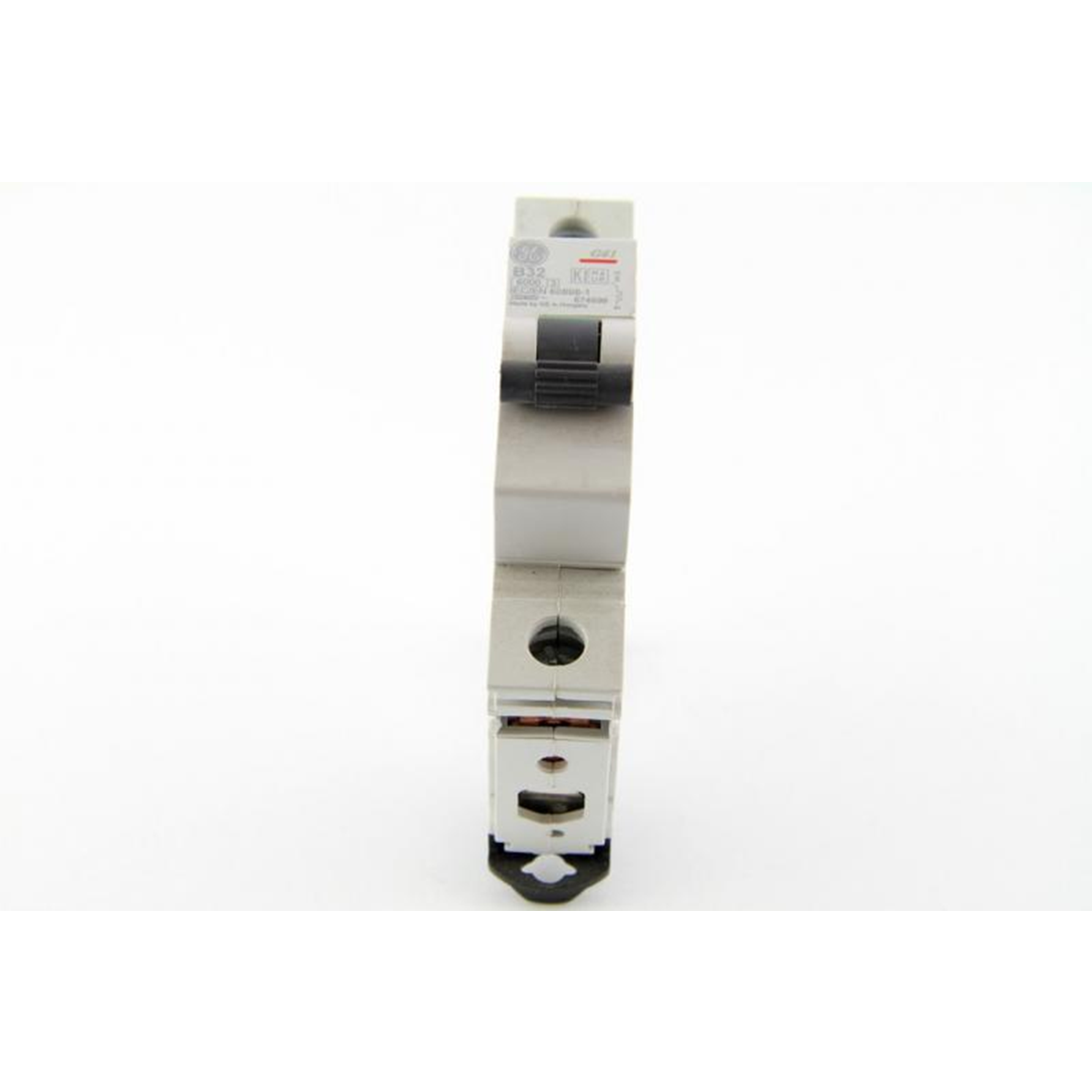

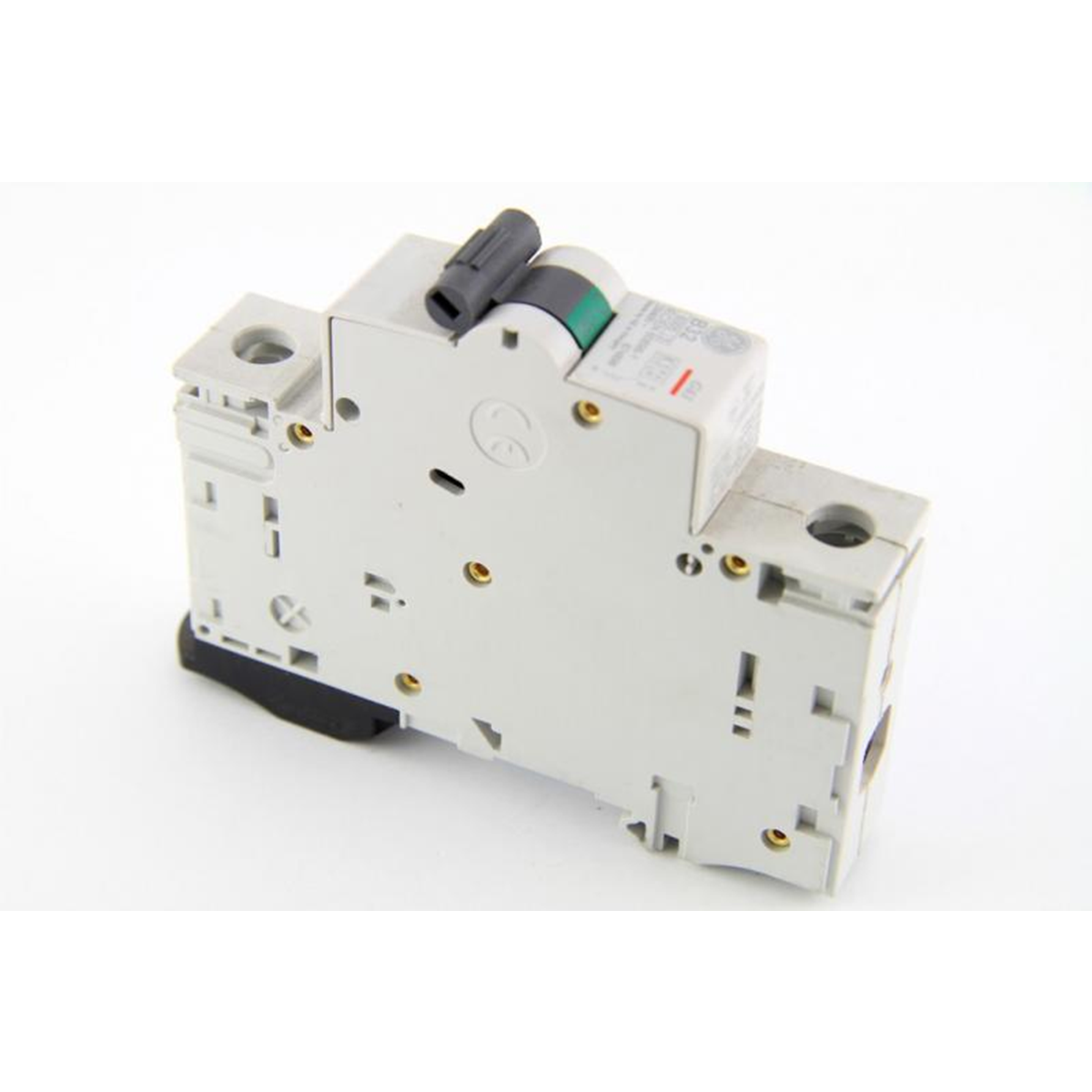

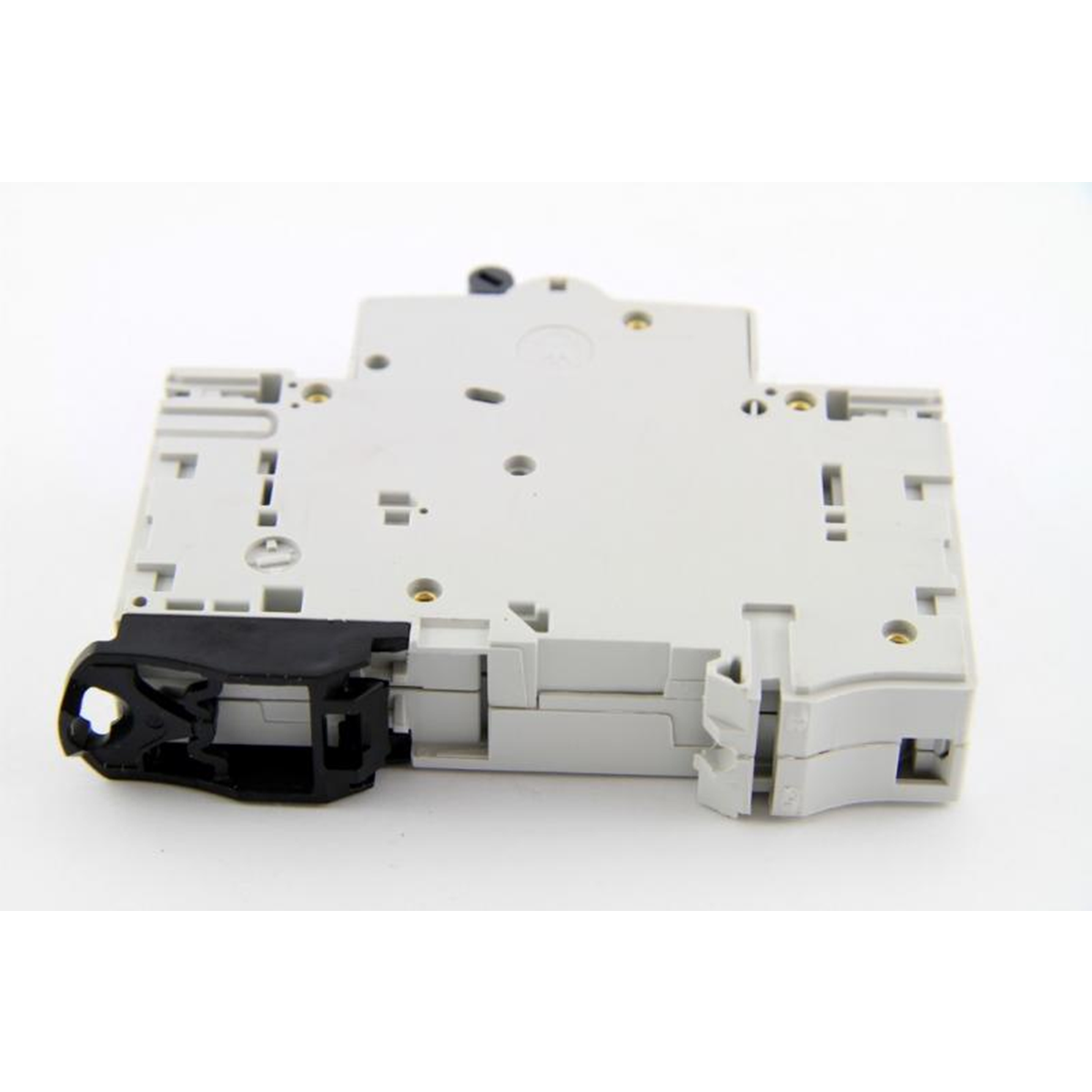

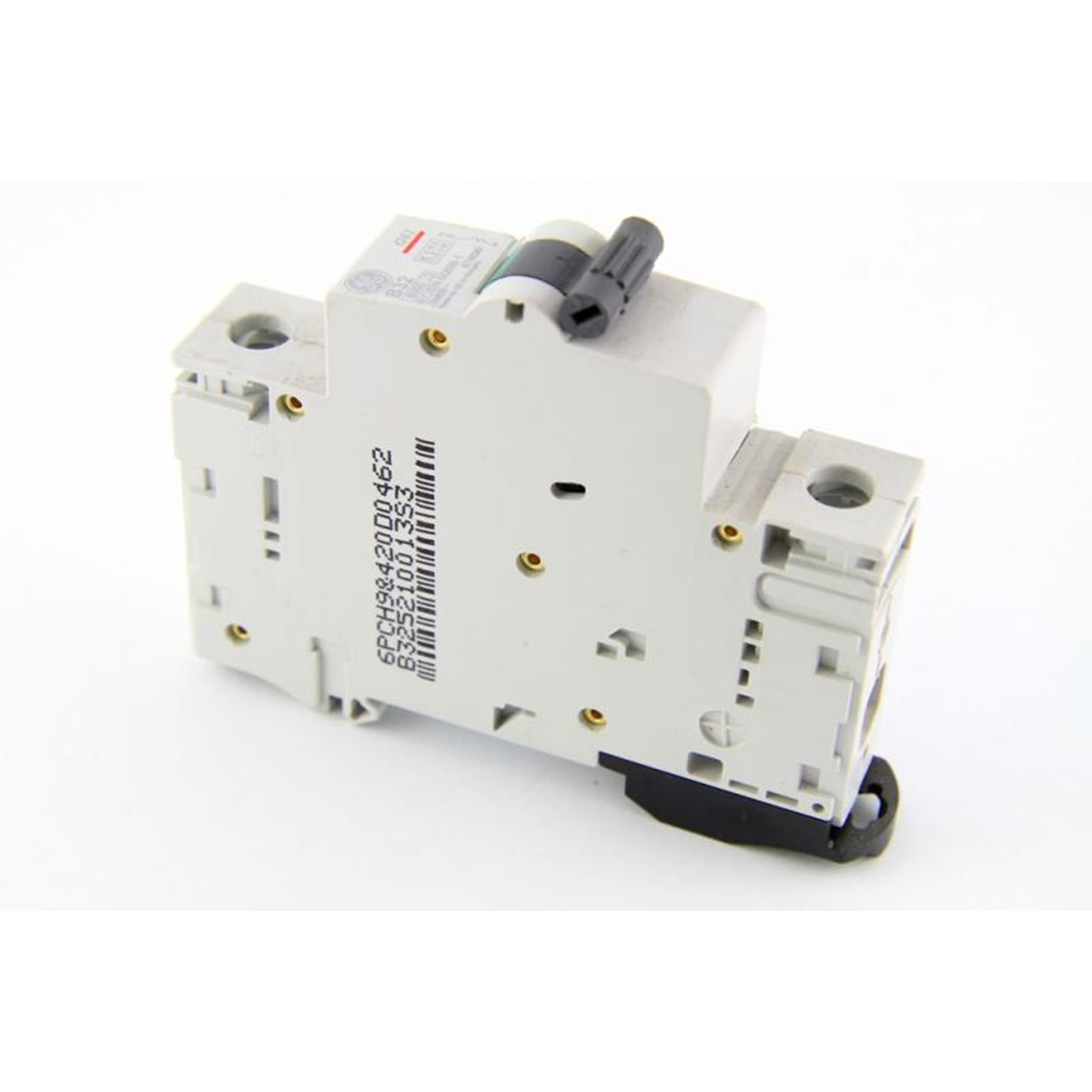

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: ABB

Rated current [A]: 32

Siehe vollständige Beschreibung

Preis:

3,63 €

gross / stk.

(inklusive MwSt 23%)

Zugänglich 6 stk.

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details

Produktbeschreibung

Current circuit breaker G61 B32 GE

Current circuit breaker overcurrent single-phase.

Used to protect wires and receivers against overloads and short circuits in installations and devices.

Mounting on a DIN 35 mm rail.

Operating characteristics: B

Maximum current: 32 A< /p>

Rated voltage: 230 V

Breakage current: 6000 A

Protection: IP 20

Lever sealable.

Rated frequency: 50Hz

Release characteristic

B
Number of protected poles

1
Rated voltage

415 V
Rated impulse withstand voltage Uimp

6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

3 kA
Frequency

50 ... 60 Hz
Do instalacji podtynkowych

No
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

44 mm
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1 ... 35 mm²

Number of poles (total)

1
Rated current

32 A
Rated insulation voltage Ui

500 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Voltage type

AC
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

0.75 ... 25 mm²
