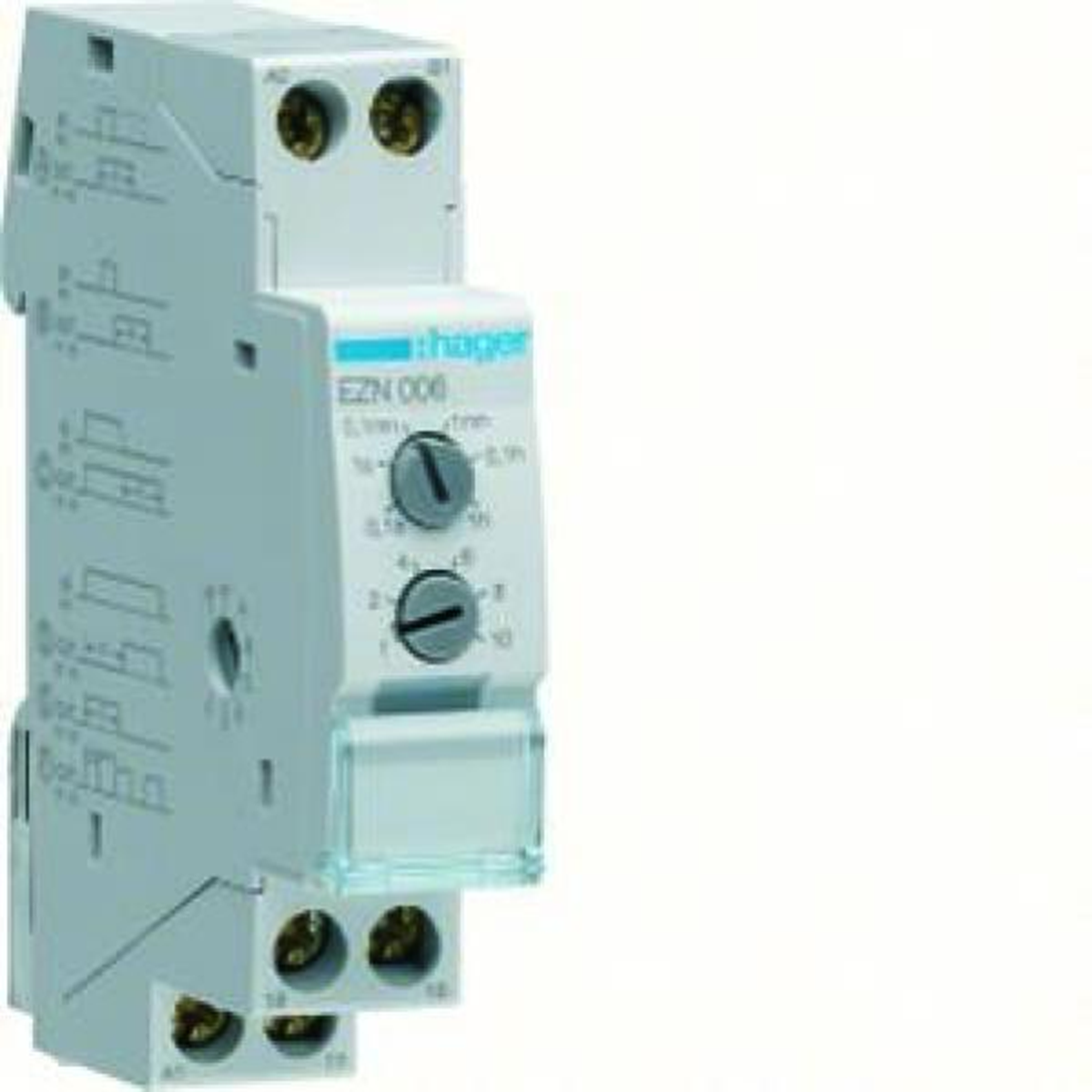

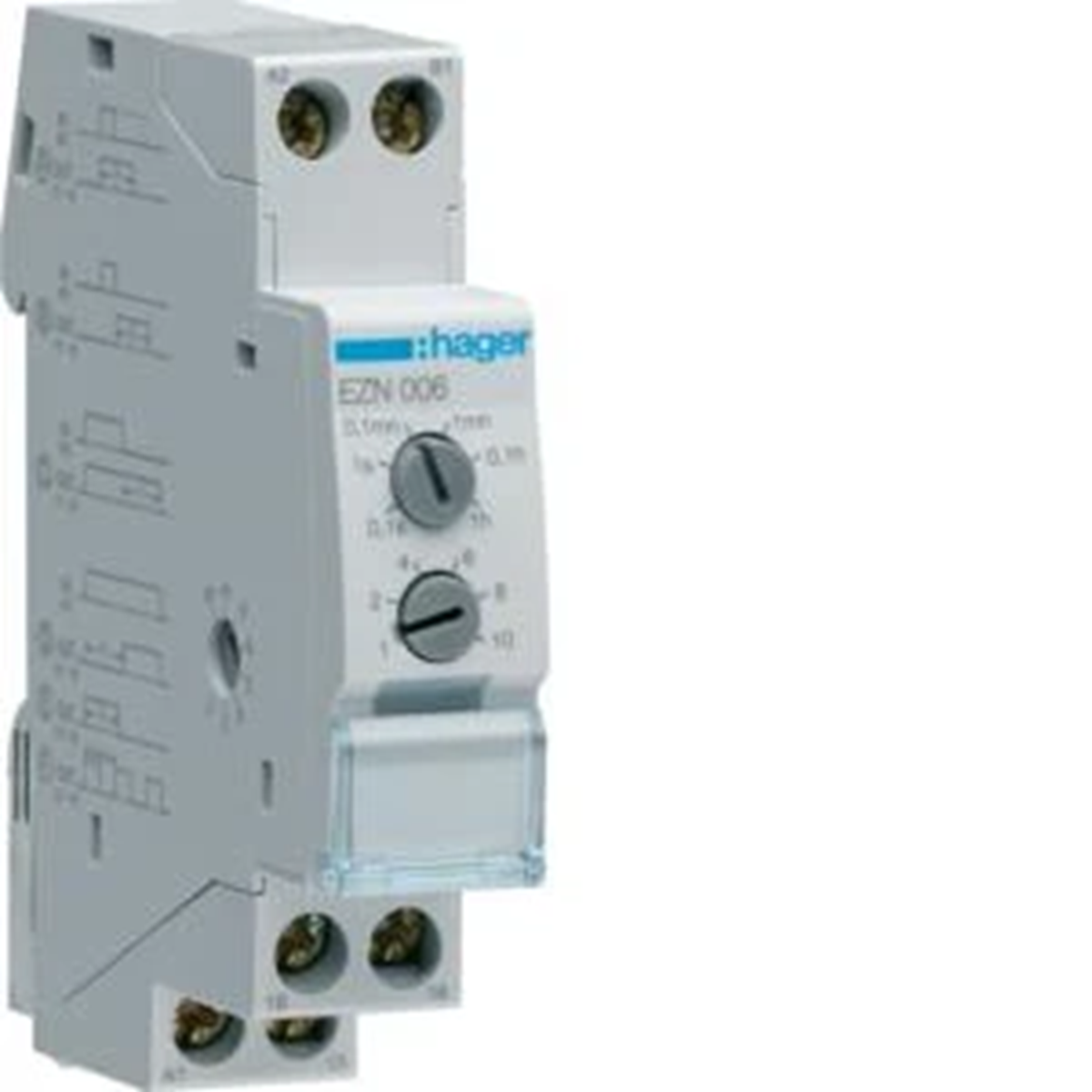

Time relay 12-230VAC/12-48VDC 1P 8A multifunctional EZN006

Universal time relays for time control functions in lighting, ventilation, air conditioning and other circuits.
• time setting using rotary potentiometer
• multifunctional relay with 8 different functions - selectable with a potentiometer located on the side of the housing
• indication of current operating states by LED
Data for all time relays:
Control voltage:
12 to 230V AC 50/60Hz
12 to 48V DC
Output relay parameters:
1NO/1NC 8A/250V AC-1
Time setting:
0.1 s to 10 h (steps, combination of time unit and its multiplier)
