el12 Automation Relays and drivers Photoelectric relays OsiSense XU M18 photoelectric sensor with PNP 1NC output 12/24VDC M12 connector

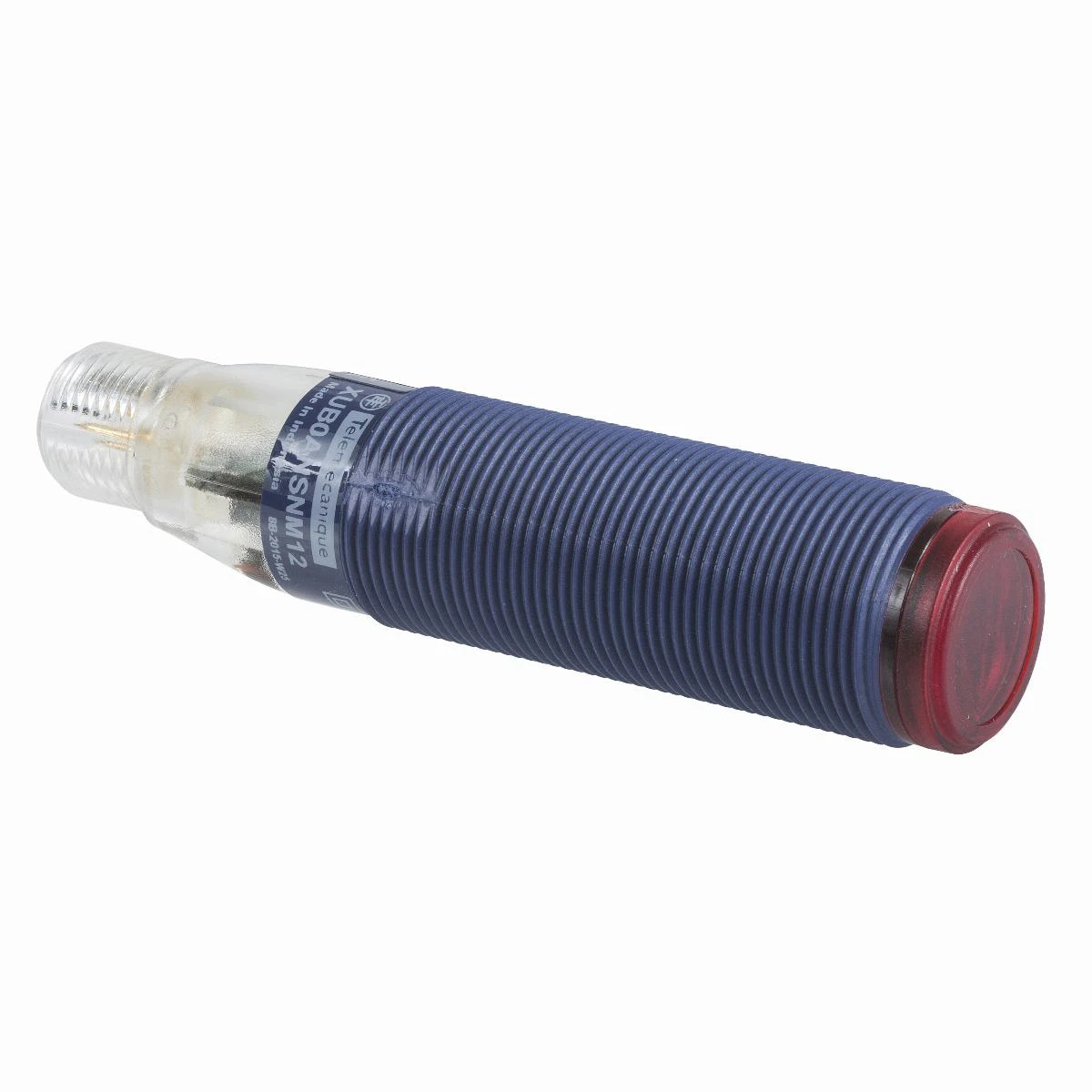

OsiSense XU M18 photoelectric sensor with PNP 1NC output 12/24VDC M12 connector

Click on the photo to enlarge

OsiSense XU M18 photoelectric sensor with PNP 1NC output 12/24VDC M12 connector
SCHNEIDER ELECTRIC

OsiSense XU M18 photoelectric sensor with PNP 1NC output 12/24VDC M12 connector XUB9APBNM12

local index:
APF025SCHN
Catalog No:
XUB9APBNM12
EAN code:
3389110158700
Price:
138,81 €
gross / pcs.
including VAT 23%
Availability:
Lack
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

OsiSense XU M18 photoelectric sensor with PNP 1NC output 12/24VDC M12 connector
Print the product sheet Report an error

Technical data

  • Material
    Plastic

Other technical data

  • Pre failure notice
    no
  • Rated switching distance
    2000 mm
  • Max. output current
    100 mA
  • Analogue output 0 V ... 10 V
    no
  • Analogue output 4 mA ... 20 mA
    no
  • With other analogue output
    no
  • With communication interface analogue
    no
  • With communication interface CANOpen
    no
  • With communication interface Ethernet
    no
  • With communication interface PROFIBUS
    no
  • With communication interface RS-422
    no
  • With communication interface SSD
    no
  • Number of semiconductor outputs with signalling function
    1
  • Number of protected semiconductor outputs
    1
  • Type of interface for safety communication
    Other
  • Type of switching output
    PNP/PNP
  • Operation agent-safety class
    Safety class 0
  • Explosion safety category for dust
    None
  • Diameter sensor
    18 mm
  • Sensing mode
    Dark switching
  • Housing material
    Plastic
  • Min. reflector distance
    1000 mm
  • Response time
    1 ms
  • Type of safety according to IEC 61496-1
    1
  • Voltage type
    AC/DC
  • Laser protection class
    None
  • With restart blockage
    no
  • Degree of protection (IP)
    IP65
  • With time function
    no
  • Max. switching distance
    3000 mm
  • With reflector
    yes
  • Analogue output 0 mA ... 20 mA
    no
  • Analogue output -10 V ... +10 V
    no
  • Setting procedure
    Other
  • With communication interface AS-Interface
    no
  • With communication interface DeviceNet
    no
  • With communication interface INTERBUS
    no
  • With communication interface RS-232
    no
  • With communication interface RS-485
    no
  • With communication interface SSI
    no
  • Number of contact energized outputs with signalling function
    0
  • Number of protected contact energized outputs
    0
  • Type of electric connection
    Connector M12
  • Type of switch function
    Breaker contact (NC)
  • Explosion safety category for gas
    None
  • Construction type housing
    Cylinder, screw-thread
  • Length of sensor
    62 mm
  • Material of optical surface
    Plastic
  • Max. output current at protected output
    100 mA
  • Ambient temperature
    -25 ... 55 °C
  • Switching frequency
    500 Hz
  • Rated control supply voltage DC
    12 ... 24 V
  • With monitoring function downstream switching devices
    no
  • Type of light
    Polarized red light
  • Suitable for safety functions
    no
