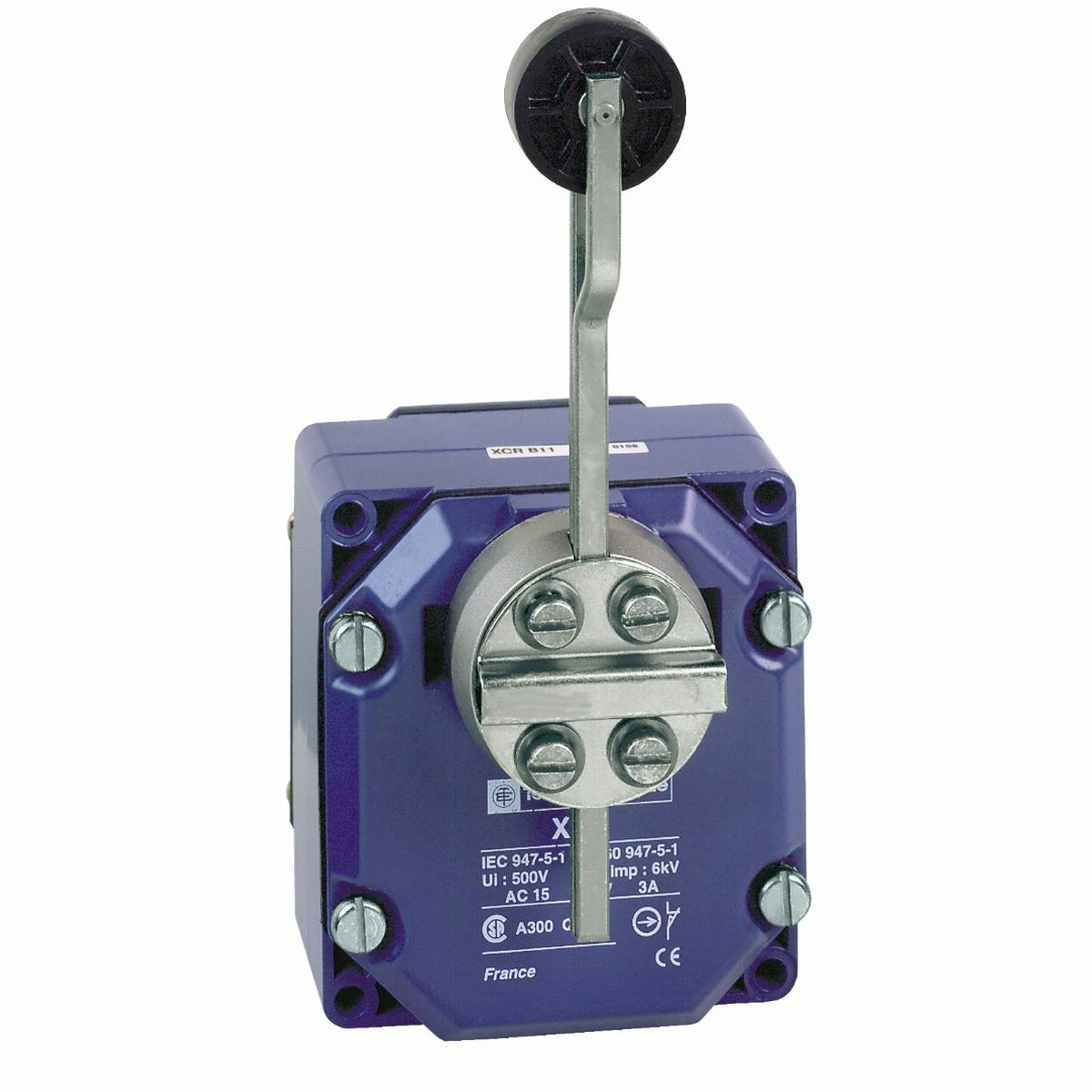

OsiSense XC Limit switch XCR lever with thermoplastic roller spring return 2 x(1NC+1NO)

Click on the photo to enlarge

OsiSense XC Limit switch XCR lever with thermoplastic roller spring return 2 x(1NC+1NO)
SCHNEIDER ELECTRIC

OsiSense XC Limit switch XCR lever with thermoplastic roller spring return 2 x(1NC+1NO) XCRA12

local index:
ALC046SCHN
Catalog No:
XCRA12
EAN code:
3389110652024
Price:
211,78 €
gross / pcs.
including VAT 23%
Availability:
Lack
Delivery:
From 3,49 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

OsiSense XC Limit switch XCR lever with thermoplastic roller spring return 2 x(1NC+1NO)
Print the product sheet Report an error

Technical data

  • Contact
    1NZ+1NO

Other technical data

  • Width sensor
    85 mm
  • Length of sensor
    75 mm
  • Rated operation current Ie at DC-13, 230 V
    0.27 A
  • Switching function latching
    no
  • Forced opening
    yes
  • Number of contacts as normally closed contact
    2
  • Number of contacts as change-over contact
    0
  • Type of interface for safety communication
    None
  • Housing material
    Metal
  • Type of control element
    Roller lever
  • Type of electric connection
    Cable entry PG
  • Suitable for safety functions
    yes
  • Explosion safety category for dust
    None
  • Degree of protection (IP)
    IP54
  • Height of sensor
    95 mm
  • Rated operation current Ie at AC-15, 230 V
    3 A
  • Switching function
    Quick-break switch
  • Output electronic
    no
  • Number of safety auxiliary contacts
    0
  • Number of contacts as normally open contact
    2
  • Type of interface
    None
  • Construction type housing
    Special construction
  • Coating housing
    Other
  • Alignment of the control element
    Other
  • With status indication
    no
  • Explosion safety category for gas
    None
  • Ambient temperature during operating
    -25 ... 70 °C
