el12 Automation Circuit breakers, disconnectors Fuse switches Fuse switch R 303 63 A 3P

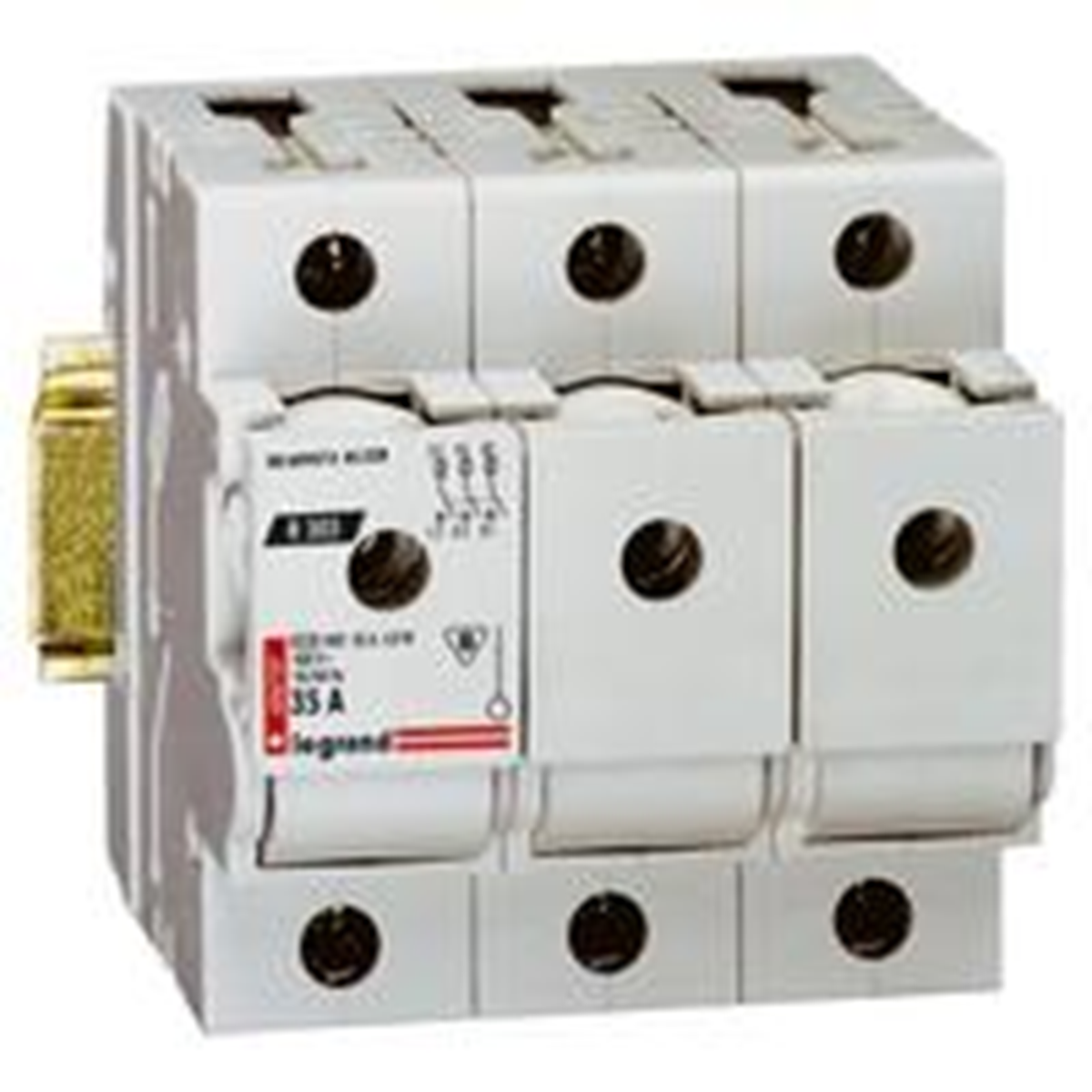

Fuse switch R 303 63 A 3P
Fuse switch R 303 63 A 3P

Click on the photo to enlarge

Fuse switch R 303 63 A 3P
Fuse switch R 303 63 A 3P
LEGRAND

Fuse switch R 303 63 A 3P 606709

local index:
ALB311LEGR
Catalog No:
606709
Price:
107,50 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Fuse switch R 303 63 A 3P
Print the product sheet Report an error

Technical data

  • Number of modules
    4.5
  • Rated voltage [V]
    400
  • Contact life
    20000
  • Number of modules
    4.5
  • Number of poles
    3
  • Rated current [A]
    63
  • Cartridge type
    D 02

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    no
  • Version as reversing switch
    no
  • Rated operating voltage
    12 ... 400 V
  • Rated permanent current at AC-21, 400 V
    63 A
  • Switching power at 400 V
    25.2 kW
  • Motor drive optional
    no
  • Voltage release optional
    no
  • Suitable for floor mounting
    yes
  • Suitable for front mounting centre
    no
  • Suitable for intermediate mounting
    yes
  • Type of control element
    Toggle
  • Type of electrical connection of main circuit
    Screw connection
  • Version as maintenance-/service switch
    no
  • Version as emergency stop installation
    no
  • Max. rated operation voltage Ue AC
    400 V
  • Rated permanent current Iu
    63 A
  • Rated short-time withstand current lcw
    50 kA
  • Conditioned rated short-circuit current Iq
    50 kA
  • Motor drive integrated
    no
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    no
  • Suitable for distribution board installation
    yes
  • Colour control element
    Grey
  • Interlockable
    yes
  • Degree of protection (IP), front side
    IP40
